Offers high power density: 125W x 4 Ch in ½ RU chassis
Low (4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software

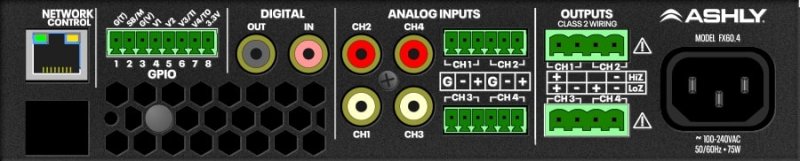

Balanced Mic/Line inputs on removeable Euroblock connectors, plus unbalanced RCA inputs
2-channel SPDIF Digital IO

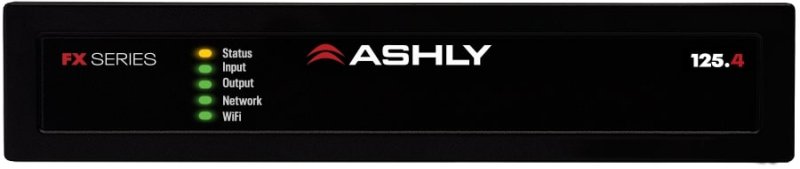

Front panel status LEDs for amp, Input, output & network
Networkable via Ethernet or built-in WiFi
Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
Browser-based UI accessed via PC or mobile device. No software to install.
All models have 4 Input channels x 2 or 4 Output channels
Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software
Customized Speaker Presets made be created, saved & loaded for each output channel
Addressable GPIO, Standby/Mute & VC remote ports. VC assignable per channel via software
½ RU models easy to hide in "non-rack" installations.
Highly efficient Class D and lightweight
Optional hardware for ½ RU models for rack & wall/surface mounting

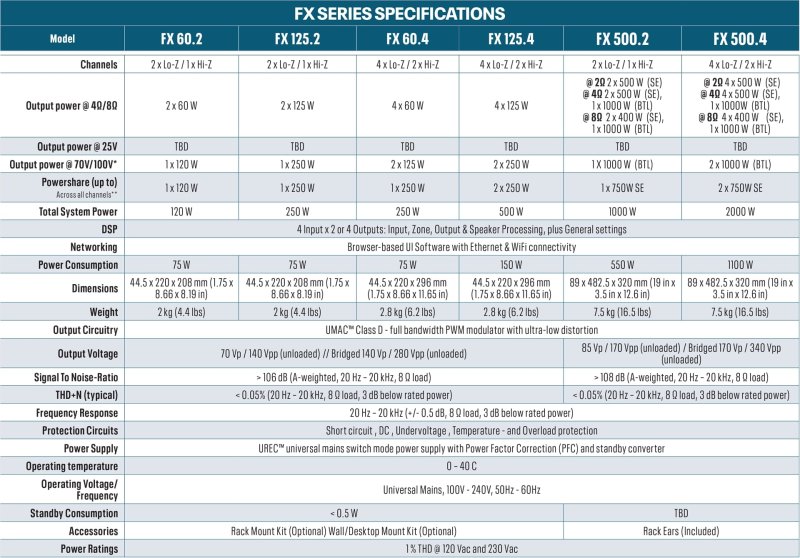

Channels: 4 x Lo-Z / 2x Hi-Z
Output Power @ 4O/8O: 4x125W
Output Power @ 25V: TBD
Output Power @ 70V/100V: 2x250W
Powershare - Across All Channels (up to): 2x250W
Total System Power: 500W
DSP: 4 Input x 4 Outputs: Input, Zone, Output & Speaker Processing, plus General Settings
Networking: Browser-based UI Software with Ethernet & WiFi Connectivity
Power Consumption: 150W
Dimensions: 44.5x220x296mm (1.75x8.66x11.65 inch)
Weight: 2.8 kg (6.2 lbs)
Output Circuitry: UMAC Class D - Full bandwidth PWM Modulator with Ultra-low Distortion
Output Voltage: 70 Vp / 140 Vpp (unloaded) // Bridged 140 Vp / 280 Vpp (unloaded)
Signal to Noise-Ratio: >106 dB (A-Weighted, 20 Hz - 20 kHz, 8 O load)
THD+N (typical): <0.05% (20 Hz - 20 kHz, 8 O load, 3 dB below rated power)
Frequency Response: 20Hz-20kHz (+/- 0.5dB, 8 O load, 3 dB below rated power)
