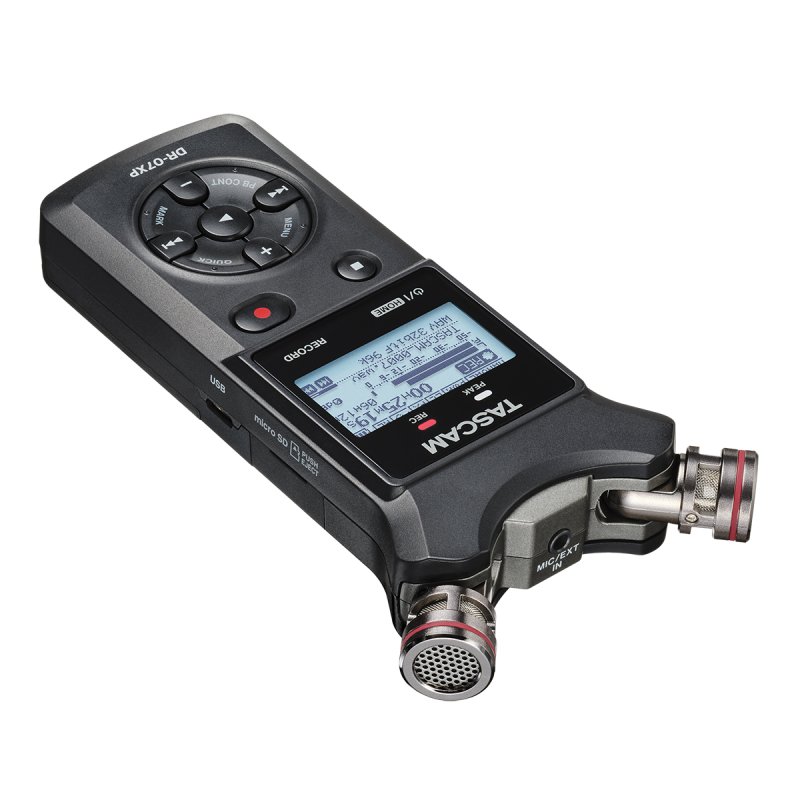

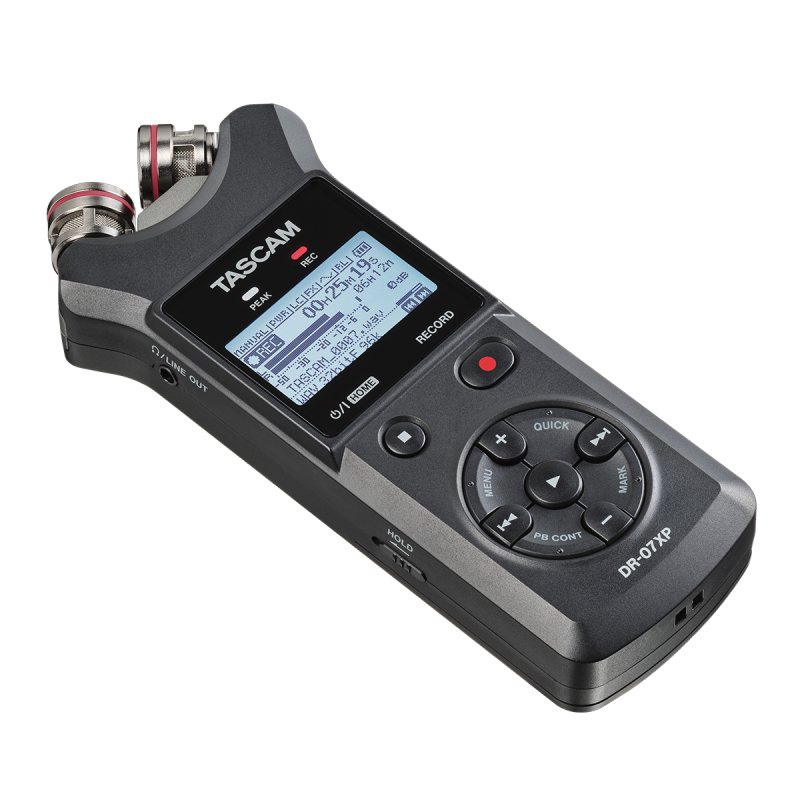

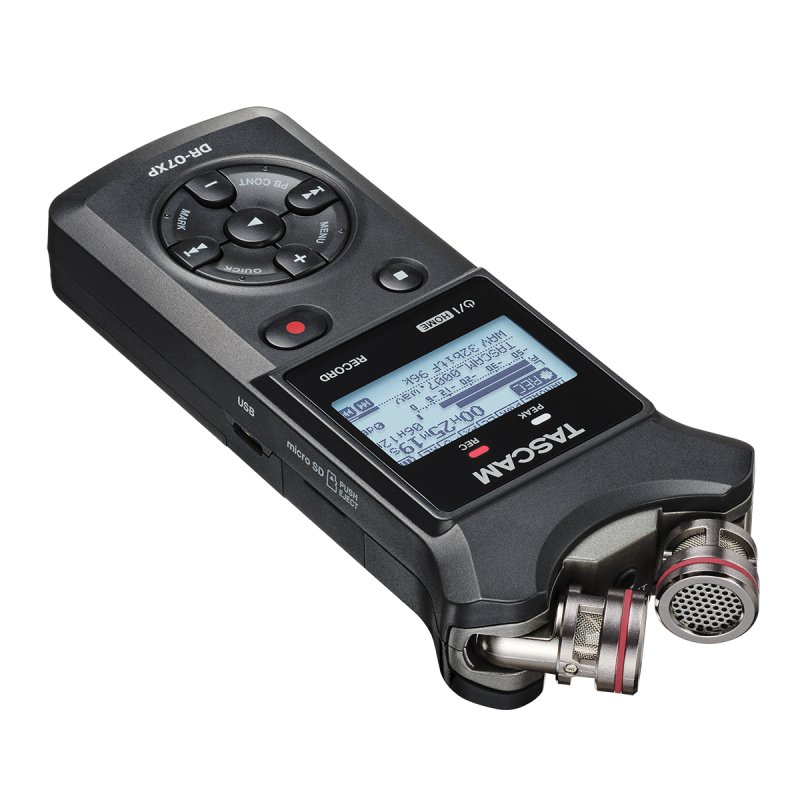

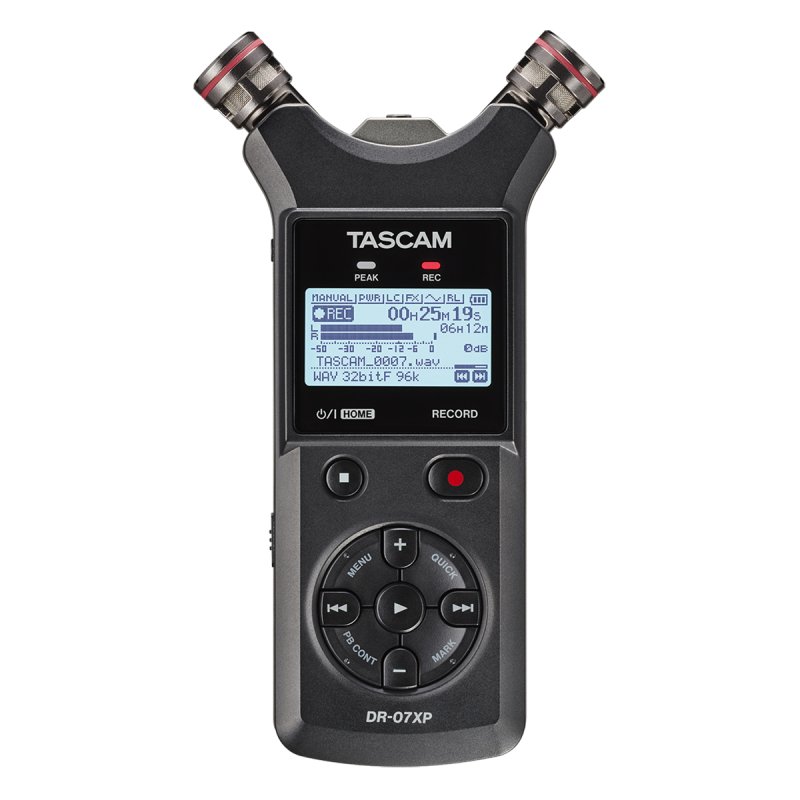

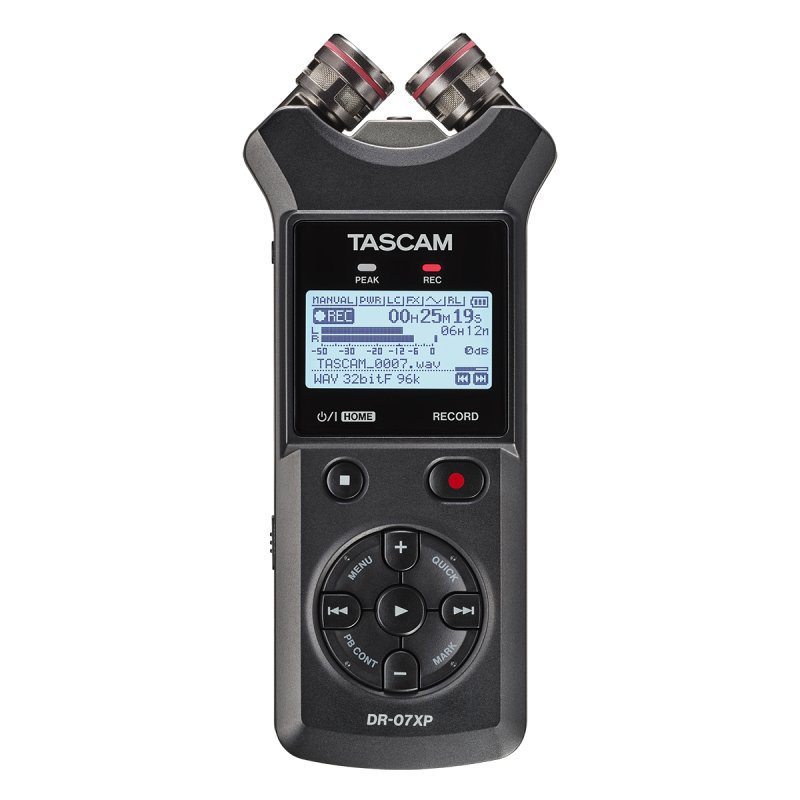

The TASCAM DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.
- 2-channel portable handheld audio recorder with microSDXC card storage
- 32-bit float recording mode ensures low-noise, distortion-free recordings
- Stereo AB/XY condenser microphones handle loud environments and sources (up to 125dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- Up to 17.5 hours operation with 2 x AA alkaline batteries
- Recording modes include 32-bit float/24-bit/16-bit, 96kHz/48kHz/44.1kHz
- microSDXC (up to 512GB) cards can be used as recording media
- USB Type-C port
- Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
- Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
- Long recordings as MP3 files possible
- Various recording function (Auto rec, Self timer, Pre rec)
- Overdubbing function
- Limiter and Peak reduction
- Three low-cut filter levels (40/80/120Hz)
- Auto Tone output for use with DSLR camera
- Reverb effect for vocal and instrument resonance
- Mark function
- 128×64 pixel graphic LCD with backlight
- Tripod mounting point attaches to any standard tripod
- Stereo mini line output and headphone output
- Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
- Playlist function
- Built-in monaural speaker makes it easy to check your recordings
- Chromatic tuner for tuning musical instruments before recording
Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording — and you’ll never need to worry about setting input levels.
Adjustable Stereo Condenser Microphones
The DR-07XP features unidirectional stereo condenser microphones with adjustable A/B or X/Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.
Simplicity in Your Palm
With the DR-07XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.
Your Portable Recording Studio
The DR-07XP isn't only a powerful portable recorder — it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.
Ideal for Musicians
The DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.
On Location
With its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.
Record Anything, Anywhere
From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.
Specifications
- Recorder
- Recording media/file systems: microSD cards, microSDHC cards, microSDXC cards (up to 512 GB)
- Recording/playback formats
- WAV (BWF)
- Sampling frequency: 44.1 kHz / 48 kHz / 96 kHz
- Quantization bit depth: 16-bit / 24-bit / 32-bit float
- MP3
- Sampling frequency: 44.1 / 48 kHz
- Quantization bit depth: 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
- Maximum number of input channels: 2
- Maximum number of recordable tracks: 2
- Analog audio input/output ratings
- MIC/EXT IN jack (can provide plug-in power)
- Connector: 3.5mm (1/8") stereo mini jack
- Input Impedance
- 18 kΩ or more (when plug-in power is turned off)
- 2 kΩ or more (when plug-in power is turned on)
- Nominal input level: -20 dBV
- Maximum input level: -4 dBV
- PHONES/LINE OUT jack
- Connector: 3.5mm (1/8") stereo mini jack
- Output impedance: 12 Ω
- Nominal output level: -14 dBV (10kΩ loaded)
- Maximum output level: +2 dBV (10kΩ loaded)
- Maximum output: 20 mW + 20 mW (32 Ω load)
- Working impedance: 16 - 250Ω
- Built-in Speaker
- USB
- Connector: USB Type-C
- Format
- USB 2.0 High Speed Mass Storage Class
- USB 1.1 Full Speed Audio Class
- USB Audio
- Sampling rate: 44.1 / 48 kHz
- Quantization bit depth: 24-bit
- Number of inputs: 2 channels (output from this unit)
- Number of outputs: 2 channels (input to this unit)
- General
- Power
- 2x AA batteries (alkaline or NiMH)
- USB bus power (5V/0.5A) from a computer, etc.
- TASCAM PS-P520U AC adapter (sold separately)
- Power consumption: 1.7 W (maximum)
- Operating temperature range: 0 – 40 °C / 32 – 104 °F
- Dimensions (WxHxD)
- Mic closed: 2.68 x 6.28 x 1.06 inch (68 x 159.6 x 27.0mm)
- Mic open: 3.56 x 6.28 x 1.06 inch inch (90.3 x 159.6 x 27.0mm)
- Weight
- With batteries: 184 g / 0.406 lb
- Without batteries: 136 g / 0.30 lb
What's in the Box
- 1x DR-07XP
- 1x Safety guide (including warranty)
- 1x TASCAM ID registration guide
