FX Series 120W 2 Channel 1/2RU Compact Class D Multi Mode Power Amplifier

FX Series 120W 2 Channel 1/2RU Compact Class D Multi Mode Power Amplifier

Name: FX Series 120W 2 Channel 1/2RU Compact Class D Multi Mode Power Amplifier
SKU: FX-60.2

Brand: Ashly

Model: FX-60.2

UPC: 801128003481

FX Series 250W 4 Channel 1/2RU Compact Class D Multi Mode Power Amplifier

FX Series 250W 2 Channel 1/2RU Compact Class D Multi Mode Power Amplifier

FX Series 500W 4 Channel 1/2RU Compact Class D Multi Mode Power Amplifier

FX Series 1000W 2 Channel 2RU Compact Class D Multi Mode Power Amplifier

FX Series 2000W 4 Channel 2RU Compact Class D Multi Mode Power Amplifier

Multipurpose 2 RU Installation Network Amplifier with DSP

Please log in to see your price

Dealer locator

The Ashly FX-60.2 FX Series 60.2 120W 1/2U Compact Class D Power Amplifier is a 2-channel configuration of Class D design housed in a 1/2 RU metal chassis with a metal front.

Offers high power density:

60W x 2 Ch in ½ RU chassis

Low 4/8 or Hi Impedance (70/100V) operation, selectable in software

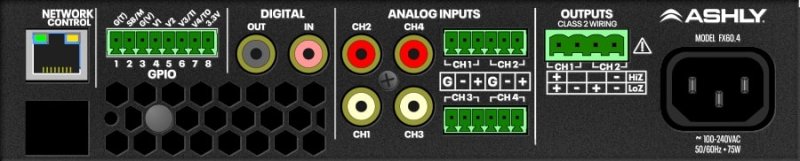

Balanced Mic/Line inputs on removeable Euroblock connectors, plus unbalanced RCA inputs

2-channel SPDIF Digital IO

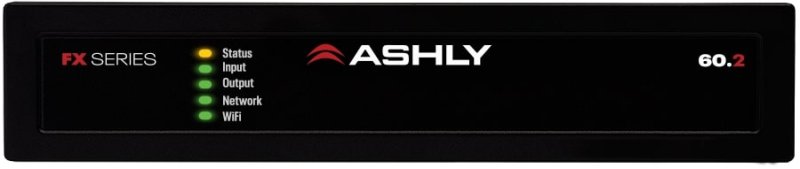

Front panel status LEDs for amp, Input, output & network

Advanced Dynamic Power Sharing distributes power between channels, with up to 4x channel power**

Networkable via Ethernet or built-in WiFi

Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay

Browser-based UI accessed via PC or mobile device. No software to install.

All models have 4 Input channels x 2 or 4 Output channels

Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software

Customized Speaker Presets made be created, saved & loaded for each output channel

Addressable GPIO, Standby/Mute & VC remote ports. VC assignable per channel via software

½ RU models easy to hide in "non-rack" installations.

Highly efficient Class D and lightweight

Optional hardware for ½ RU models for rack & wall/surface mounting.

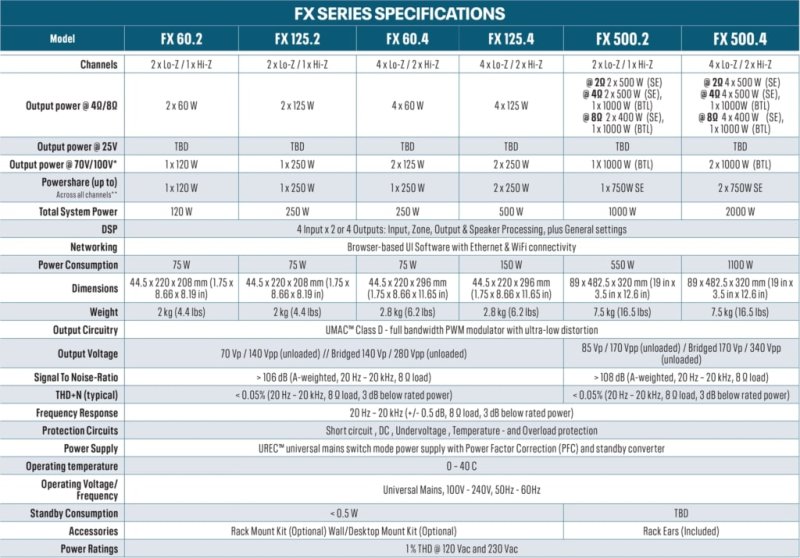

Channels: 2 x Lo-Z / 1x Hi-Z

Output Power @ 4O/8O: 2x60W

Output Power @ 25V: TBD

Output Power @ 70V/100V: 1x120W

Powershare - Across All Channels (up to): 1x120W

Total System Power: 120W

DSP: 4 Input x 2 Outputs: Input, Zone, Output & Speaker Processing, plus General Settings

Networking: Browser-based UI Software with Ethernet & WiFi Connectivity

Power Consumption: 75W

Dimensions: 44.5x220x208mm (1.75x8.66x8.19 inch)

Weight: 2 kg (4.4 lbs)

Output Circuitry: UMAC Class D - Full bandwidth PWM Modulator with Ultra-low Distortion

Output Voltage: 70 Vp / 140 Vpp (unloaded) // Bridged 140 Vp / 280 Vpp (unloaded)

Signal to Noise-Ratio: >106 dB (A-Weighted, 20 Hz - 20 kHz, 8 O load)

About This Product

Description:

The Ashly FX-60.2 FX Series 60.2 120W 1/2U Compact Class D Power Amplifier is a 2-channel configuration of Class D design housed in a 1/2 RU metal chassis with a metal front. The FX Series' pedigree is the culmination of compact Class D design so successfully implemented in the FA Series and Ashly's years of providing easy-to-use software. Along with a newly incorporated DSP engine & software UI, FX takes amplification to new levels. FX is networkable via Ethernet for wired LAN connection, or directly via its built-in WiFi hotspot. No network router needed. FX allows system configurations that don't require additional equipment, such as stand-alone DSP or speaker system processors. All of that is in one box. That saves space, money & time. With 6 models to choose from starting at 2 x 60W in a ½ RU to 4 x 500W in 2 RU, there's an FX that will fit just about any project. Each offers a healthy compliment of IO (include Digital SPDIF In & Out) and programmable integration ports for remote Volume control, GP triggers and more. The amplfier is 2 amp channels each capable of driving up to 60W @ 4 or 8 Ohms per channel and may be switched to operate at 70V or 100V with 120W by bridging pairs. The 2 channels is capable of power-sharing, driving up to 125W total across two channels or with a single output driven. The amplifier shall have a universal power supply capable of operating from 100-240VAC 50/60Hz and has a power consumption @ 1/8 continuous rated output of 75W @ 4 Ohms. The amplfier housing is 8.7" W x 1.7" H x 10.4" D with a net weight of 4.4 lbs.

Specifications
