Offers high power density: 500W x 2Ch in 2 RU chassis
Low (2*/4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software

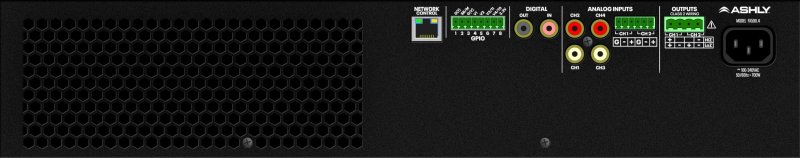

Balanced Mic/Line inputs on removeable Euroblock connectors, plus unbalanced RCA inputs
2-channel SPDIF Digital IO

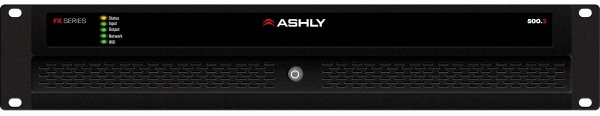

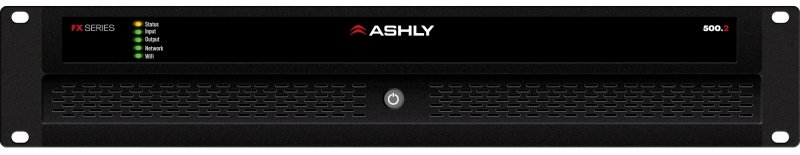

Front panel status LEDs for amp, Input, output & network
Networkable via Ethernet or built-in WiFi
Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
Browser-based UI accessed via PC or mobile device. No software to install.
All models have 4 Input channels x 2 or 4 Output channels
Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software
Customized Speaker Presets made be created, saved & loaded for each output channel
Addressable GPIO, Standby/Mute & VC remote ports. VC assignable per channel via software
Highly efficient Class D and lightweight

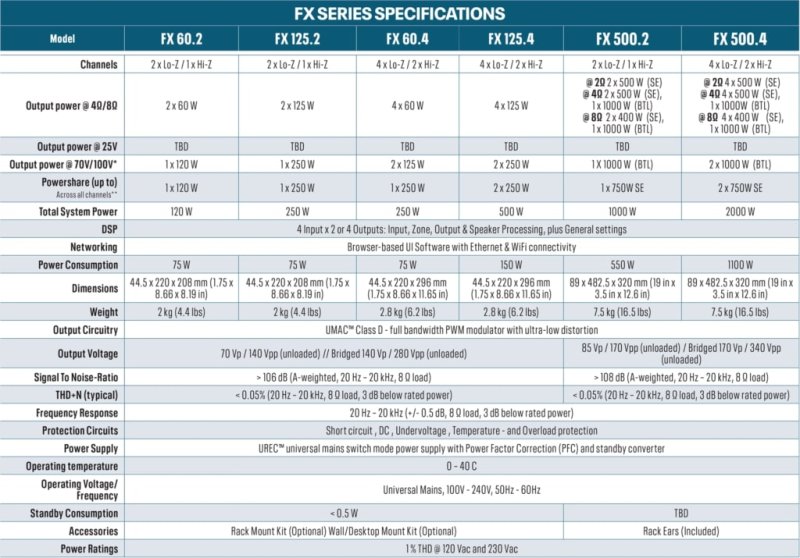

Channels: 2 x Lo-Z / 1x Hi-Z
Output Power @ 4O/8O: at 2O 2x500W (SE), at 4O 2x500W (SE)/1x1000W (BTL), at 8O 2x400W (SE)/1x1000W (BTL)
Output Power @ 25V: TBD
Output Power @ 70V/100V: 1x1000W (BTL)
Powershare - Across All Channels (up to): 1x750W (SE)
Total System Power: 1000W
DSP: 4 Input x 2 Outputs: Input, Zone, Output & Speaker Processing, plus General Settings
Networking: Browser-based UI Software with Ethernet & WiFi Connectivity
Power Consumption: 550W
Dimensions: 89x482.5x320mm (19x3.5x12.6 inch)
Weight: 7.5 kg (16.5 lbs)
Output Circuitry: UMAC Class D - Full bandwidth PWM Modulator with Ultra-low Distortion
Output Voltage: 85 Vp / 170 Vpp (unloaded) // Bridged 170 Vp / 340 Vpp (unloaded)
Signal to Noise-Ratio: >108 dB (A-Weighted, 20 Hz - 20 kHz, 8 O load)
THD+N (typical): <0.05% (20 Hz - 20 kHz, 8 O load, 3 dB below rated power)
Frequency Response: 20Hz-20kHz (+/- 0.5dB, 8 O load, 3 dB below rated power)
