Audix

Single Ear Remote Headset

Brand: Audix
Model: MG15-ADX
UPC: 687471292433
Please log in to see your price
Dealer locator
The MG Series gooseneck system is equipped with a sophisticated dual preamp circuitry – one circuit located in the capsule housing and the other built into the base of the XLR.

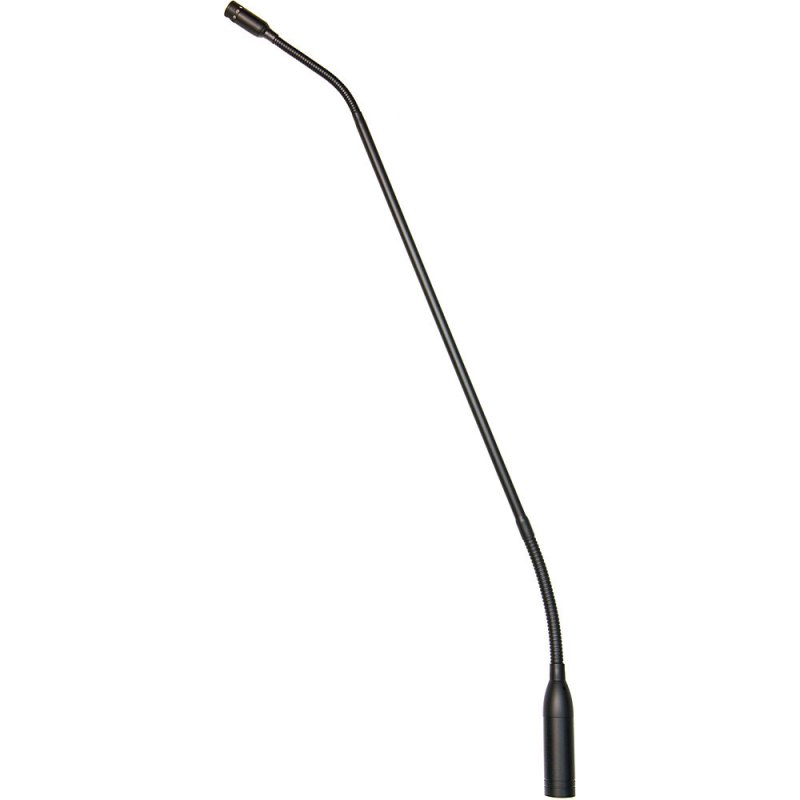

15" flexible gooseneck podium microphone featuring high output MICROS circuitry. 18 – 52 V phantom power.

Transducer Type Pre-Polarized Condenser

Frequency Response 60 Hz – 19 kHz

Polar Pattern Cardioid / Hypercardioid (MG12HC, MG15HC & MG18HC)

Output Impedance 150 Ohms balanced

Sensitivity 38 mV (C) / Pa @ 1k 32 mV (HC) / Pa @ 1k

Equivalent Noise Level 22 dB (A weighted)

Signal to Noise Ratio 72 dB

Maximum SPL =130 dB

Dynamic Range 108 dB

Power Requirements 18 – 52 Volts phantom

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Machined Brass / Black Finish

Weight 118 g / 4.16 ounces (MG12) 126 g / 4.44 ounces (MG15) 134 g / 4.73 ounces (MG18)

Length 415 mm / 16.3 inches (MG12) 480 mm / 18.9 inches (MG15) 570 mm / 22.4 inches (MG18)

more
About This Product

Description:

The MG Series gooseneck system is equipped with a sophisticated dual preamp circuitry – one circuit located in the capsule housing and the other built into the base of the XLR. This circuitry is internally balanced, ensuring the audio path will be isolated from hum and noise. In addition, this circuitry provides protection from RF interference and spurious emissions from cell phones and wireless GSM devices. The MG12, MG15, and MG18 are professional miniature gooseneck condenser microphones designed for applications such as podium, presentation, meetings, and teleconferencing. The MG condenser microphones are designed with a uniformly controlled cardioid polar pattern, helping to isolate the speaker from ambient noise. These models are also available in a hypercardioid polar pattern. With a wide frequency range of 60 Hz – 19 kHz, the MG provides natural sound with an exceptional vocal response.
Specifications
  • Barcodes
  • UPC
  • 687471292433
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.1574
  • Height In Inches
  • 3.2
  • Length in Inches
  • 25.75
  • Pounds
  • 25.75
  • Width Inches
  • 3.3
