Audix

K And M Speaker Pole W/Crank

Brand: Audix
Model: ADX12HC
UPC: 687471061329
Please log in to see your price
Dealer locator
The ADX12 & ADX18 are professional miniature gooseneck condenser microphones designed for applications such as podium, presentation, meetings, and teleconferencing.

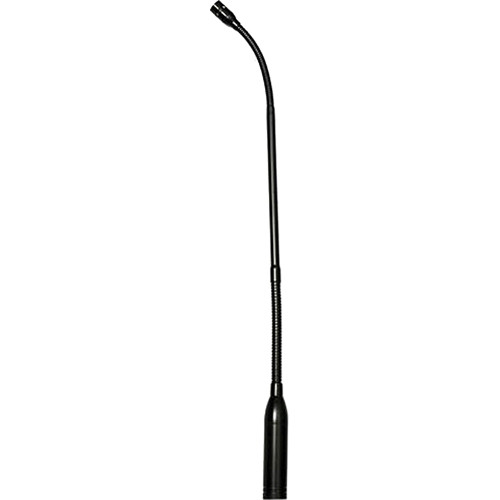

Hypercardioid 12" podium microphone with flexible gooseneck at both the base and the top of the shaft. Requires 18-52 V phantom power.

Transducer Type Pre-Polarized Condenser

Frequency Response 40 Hz – 18 kHz

Polar Pattern Cardioid/Hypercardiod

Output Impedance 150 ohms

Sensitivity 24 mV (C) / Pa @ 1k 30 mV (HC) / Pa @ 1k

Equivalent Noise Level 28 dB (A weighted)

Signal to Noise Ratio 66 dB

Maximum SPL =120 dB

Power Requirements 18 – 52 Volts phantom

Connector 3-pin XLRm

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Machined Aluminum / Black Finish

Weight 113 g / 4 oz (ADX12) 159 g / 5.6 oz (ADX18)

Length 403 mm / 16 in (ADX12) 558 mm / 22 in (ADX18)

more
About This Product

Description:

The ADX12 & ADX18 are professional miniature gooseneck condenser microphones designed for applications such as podium, presentation, meetings, and teleconferencing. With a uniformly controlled cardioid polar pattern, the ADX12 & ADX18 helps isolate the speaker from ambient noise. The ADX series is available in a hypercardioid polar pattern for tighter pick-up control. The ADX12 and ADX18 are designed with an integrated preamp circuitry built into the base of the XLR. They can be mounted permanently via the supplied flange mount or with an optional base with an internal shock mount (see model ATS10, ATS1, ATS1L). The microphone may also be used on a standard microphone stand using the DCLIP snap to fit the microphone holder.
Specifications
  • Barcodes
  • UPC
  • 687471061329
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.1131
  • Height In Inches
  • 3.2
  • Length in Inches
  • 18.5
  • Pounds
  • 0.6
  • Width Inches
  • 3.3
