Steel Roller Bearing upgrade

Name: Steel Roller Bearing upgrade
SKU: ADX20I

Brand: Audix

Model: ADX20I

UPC: 687471591048

Please log in to see your price

Dealer locator

The ADX20i miniature condenser microphone is applicable for professional stage and studio applications. This microphone is primarily used for miking most reed and brass instruments.

Transducer Type Pre-Polarized Condenser

Frequency Response 40 Hz – 20 kHz

Polar Pattern Cardioid

Output Impedance 250 ohms

Sensitivity Cardioid – 6 mV / Pa @ 1k Hypercardioid – 5.6 mV / Pa @1k

Equivalent Noise Level <29 dB (A-weighted)

Signal to Noise Ratio >65 dB

Maximum SPL =135 dB

Power Requirements 9-52 V phantom

Connector Shielded 6’ terminating to a miniature 3 pin XLRf

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Materials / Finish Machined Brass Capsule / Black Finish

Weight 48 g / 1.7 oz

Length 29 mm / 1.14 in

About This Product

Description:

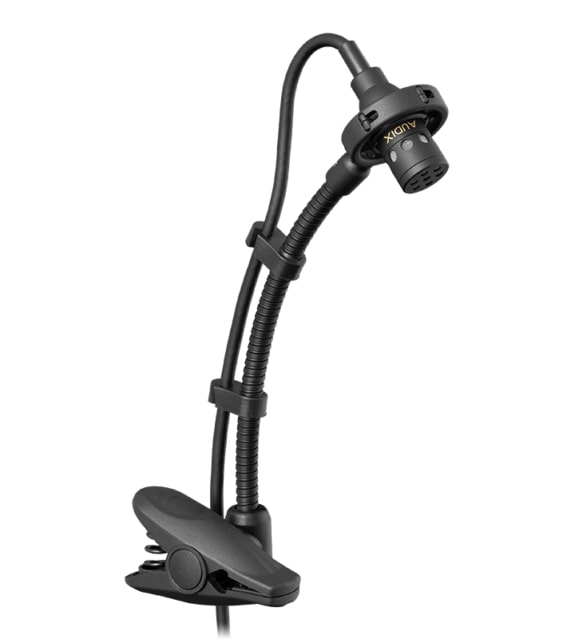

The ADX20i miniature condenser microphone is applicable for professional stage and studio applications. This microphone is primarily used for miking most reed and brass instruments. The ADX20i has a uniformly controlled cardioid polar pattern, which provides excellent isolation and feedback control on stage with natural sound reproduction at very close distances. The ADX20i condenser instrument microphone is lightweight, compact, and simple to use. Included with the ADX20i is a gooseneck clip with spring tension for easy mounting to the bell of an instrument.

Specifications
