Cover Linear 7 112 XA

Name: Cover Linear 7 112 XA
SKU: ADX10

Brand: Audix

Model: ADX10

UPC: 687471591017

Please log in to see your price

Dealer locator

The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical production.

Transducer Type Pre-polarized Condenser

Frequency Response 50Hz – 18kHz

Polar Pattern Cardioid

Output Impedance 250 Ohms

Sensitivity 5 mV/Pa @1k

Equivalent Noise Level <29 dB (A-weighted)

Signal to Noise Ratio >65 dB

Maximum SPL =120 dB

Power Requirements 9-52 V phantom

Connector Shielded 3’ terminating to a miniature 3 pin Female XLR connector

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Materials / Finish Machined Brass / Black Finish

Weight 21 g / 0.74 oz

Length 25 mm / .98 in

About This Product

Description:

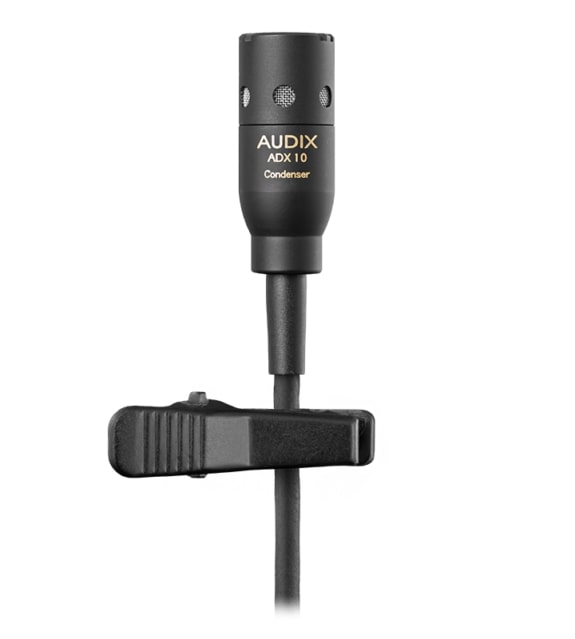

The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical production. The ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4?- 8?. This mic is clear, resistant to feedback, and easy to use. Designed with a uniformly controlled cardioid polar pattern, the ADX10 helps to isolate the area or section being miked from other vocals or instruments on stage. The ADX10 has a smooth, accurate frequency range of 50 Hz – 18 kHz. This mic is lightweight, low profile, and has a natural sound with an exceptional sound response. Primarily for use with Audix wireless systems, the ADX10 cardioid condenser microphone includes a tie-clip and a 3' attached cable terminating to a mini-XLRf connector.
