Warm Audio

Large-diaphragm FET Condenser Microphone with 3 Polar Patterns

Brand: Warm Audio
Model: WA47JR
UPC: 713541493124
Please log in to see your price
Dealer locator

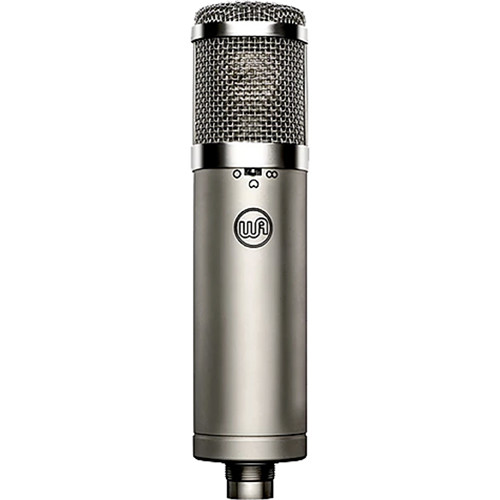

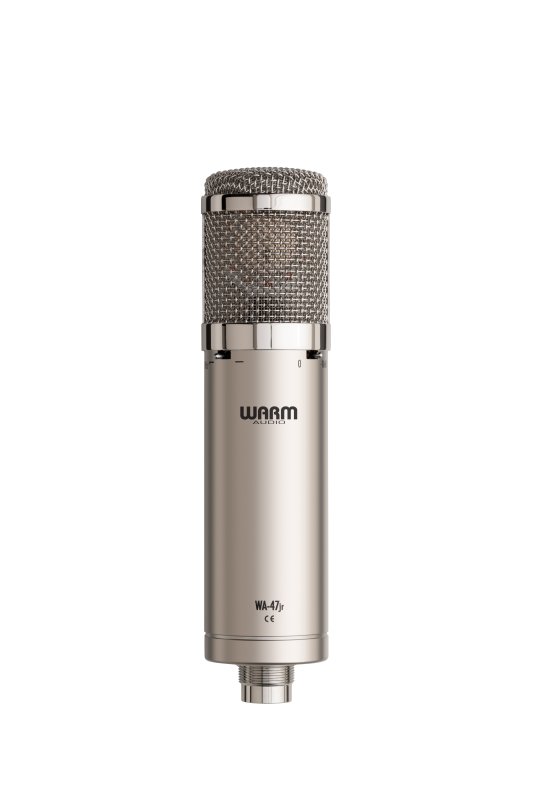

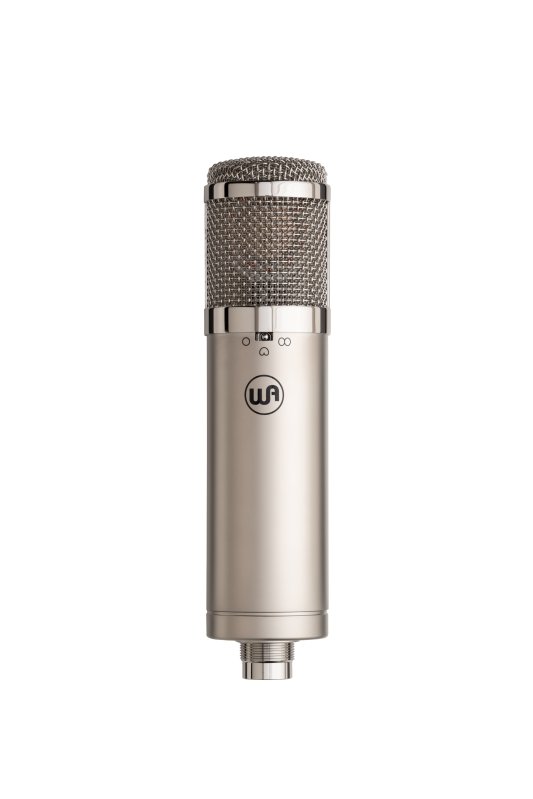

The WA-47jr is an FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years.

FET Transformerless '47 Style Condenser Microphone.

Custom True '47 Capsule Reproduction (K47 Style)

Model# WA-47-B-80v.

Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS Mylar (PET Film).

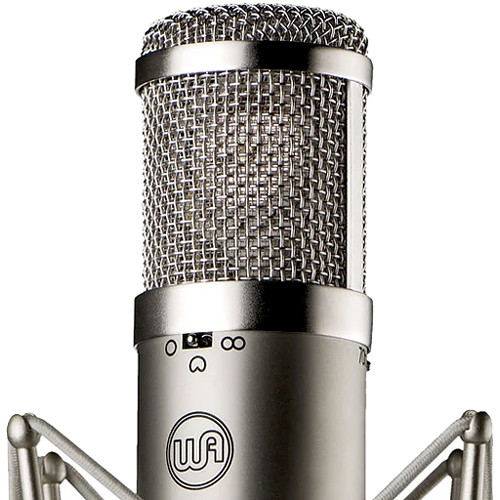

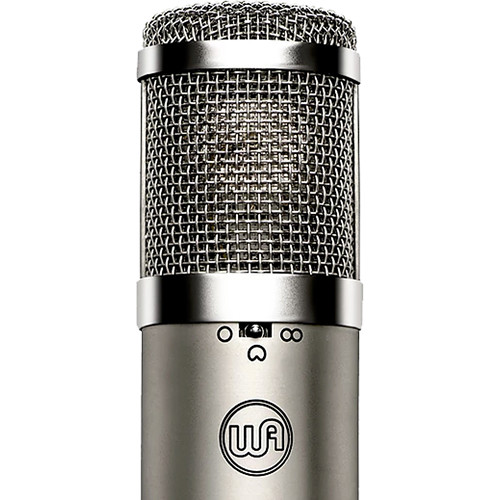

Polar Patterns: Cardioid, Figure-Of-Eight, And Omnidirectional.

Pad: -10db

High-Pass Filter: 70Hz

Self-Noise: 9dBA

Dynamic Range: 138dBA

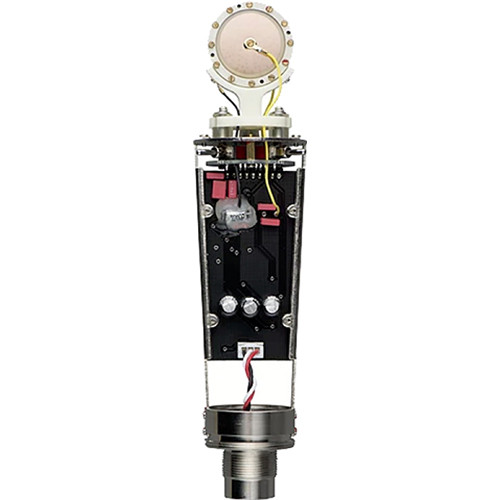

Fully Discrete Signal Path, Toshiba FET’s, Wima Film Capacitors, Panasonic Electrolytic Capacitors

Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)

Frequency Range: 20 Hz~20 KHz

Sensitivity: 10mV/Pa Or -40dB

Output Impedance: 100 Ohms

Rated Load Impedance: =1kOhms

Equivalent Noise: 10dBA (IEC651)

Total Weight: 1.1 Lbs

Mic Diameter: 52mm

Mic Length: 210mm

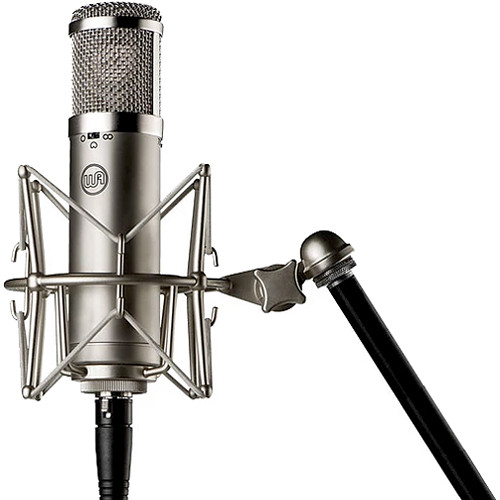

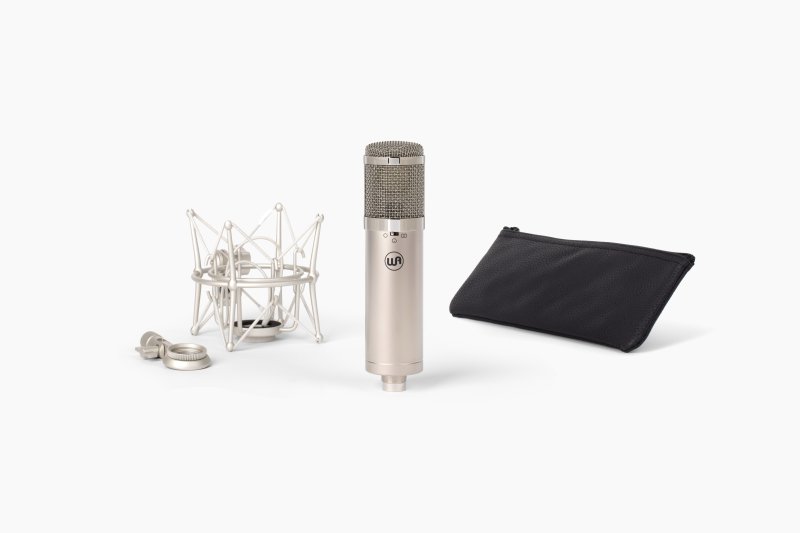

Includes: Shockmount, Hard Mount, Zipper Storage Pouch

more
About This Product

Description:

The WA-47jr is a contemporary version of the iconic ‘47-style microphone, known for rich analog warmth, with a modern circuit design and professional recording features. The custom K47-style capsule captures detailed mids, warm lows, and smooth highs delivering timeless sound on vocals, instruments, and more. The transformerless circuit provides analog warmth with plenty of clean headroom, perfect for any genre. With three selectable polar patterns (cardioid, omnidirectional, and figure-8) plus a 10 dB pad and 70 Hz high-pass filter, the WA-47jr offers the flexibility and tone of a classic tube mic in a modern FET design at an unthinkable price.

Tech Specs:

  • Contemporary Version Of The Classic '47-Style Studio Mic
  • Large-Diaphragm FET Transformerless Condenser Microphone
  • Polar Patterns: Cardioid, Figure-8, & Omnidirectional
  • 10 dB Pad | 70 Hz High-Pass Filter
  • Includes: Shockmount, Hard Mount, Leather Storage Pouch
  • Gold-Sputtered, Large-Diaphragm, Dual-Backplate, K47-Style Capsule
  • Fully Discrete Signal Path
  • Self-Noise: 9dBA | Dynamic Range: 138dBA
  • Maximum SPL: 147/157dB (Without/With Pad)
  • Frequency Range: 20 Hz~20 KHz
  • Output Impedance: 100 Ohms
  • Sensitivity: 10mV/Pa Or -40dB

Popular Uses:

  • Vocals
  • Acoustic Guitar
  • Piano
  • Drum Overheads
  • Guitar Cabs
  • Toms/Snare
  • Strings & Horns

Features:

  • Classic Studio Sound, Contemporary Design: The WA-47jr is a contemporary version of the iconic ‘47-style microphone, delivering lush warmth and classic tone with a modern multipattern condenser design. Combining one of the most legendary condenser capsules of all time with carefully designed contemporary circuitry, the WA-47jr delivers rich analog warmth on sources like vocals, acoustic guitar, drums, pianos, streaming/podcast and more.
  • Vintage-Accurate K47-Style Capsule: The WA-47jr features a true reproduction of the vintage dual-backplate, large-diaphragm K47-style capsule found in the most sought-after ‘47 microphones. Designed with the same hole pattern and frequency response as the original studio mic using a discrete signal path with ultra-low self-noise, WA-47jr delivers a rich analog tone perfect for vocals, instruments, and more.
  • Selectable Polar Patterns, Pad & Filter: The WA-47jr features three selectable polar patterns: cardioid, omnidirectional, and figure-8. Multiple patterns allow for precise control over the focus of the mic, from intimate “close” tones to capturing the natural ambiance of a room. The built-in pad and high-pass filter increase flexibility by making it easy to capture loud sources and reducing unwanted low-frequency noise. Together, these features make the WA-47jr a highly versatile microphone suited for a wide range of recording situations.

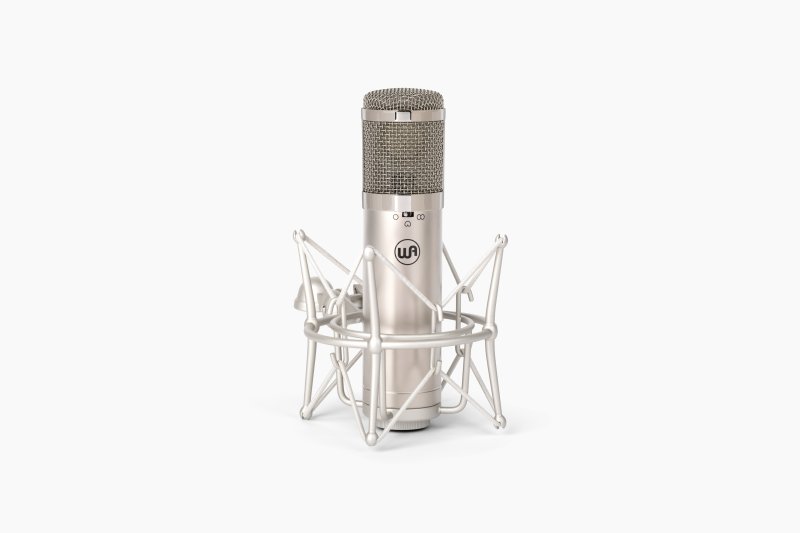

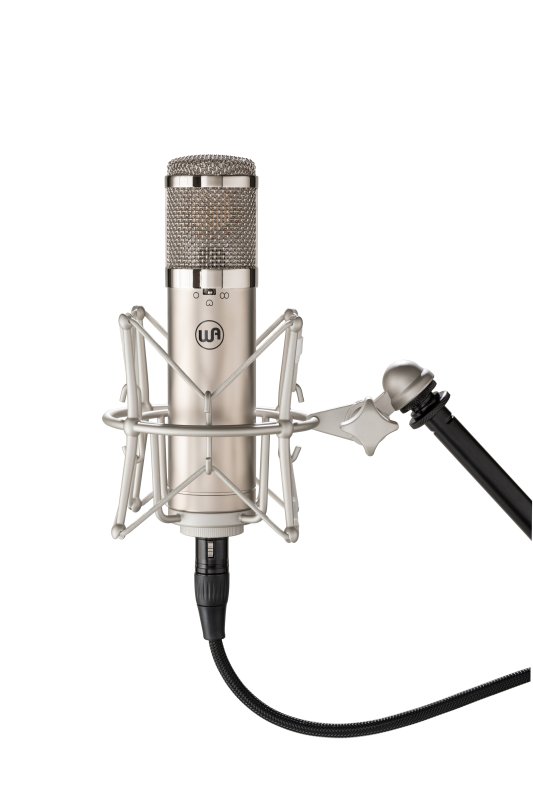

  • Professional Accessories: All WA-47jr’s include a professional shockmount to reduce noise while recording, hardmount for minimalist mounting, and leather storage case for travel and storage.
  • Hand-Tested In Austin, TX: Like all Warm Audio gear, every single WA-47jr is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.
Specifications
  • Barcodes
  • UPC
  • 713541493124
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 10
  • Each
  • Cubic Feet
  • 0.3993
  • Height In Inches
  • 6.1
  • Length in Inches
  • 10.1
  • Pounds
  • 3.75
  • Width Inches
  • 11.2
