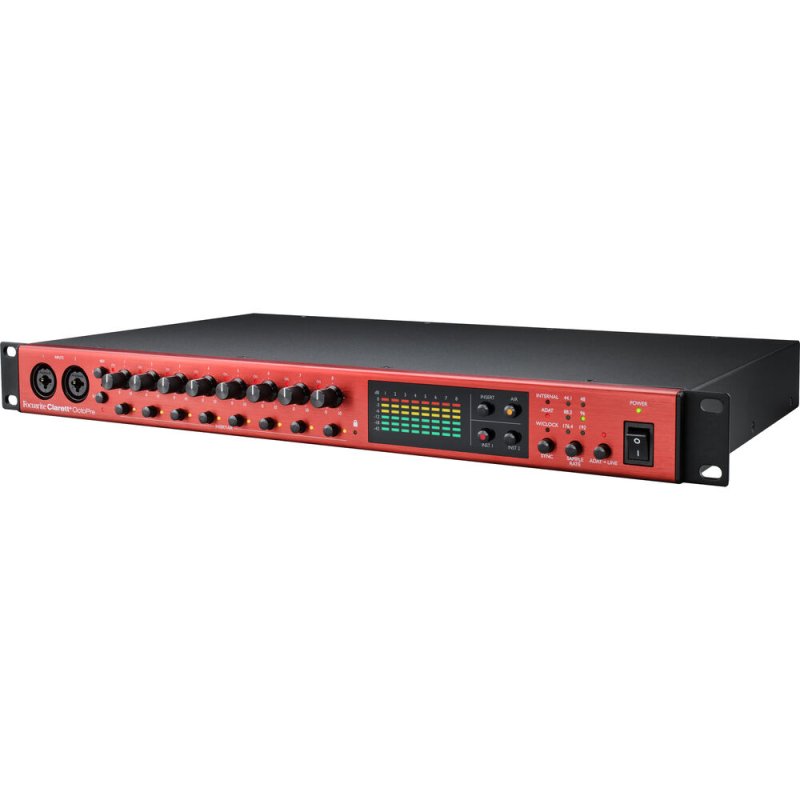

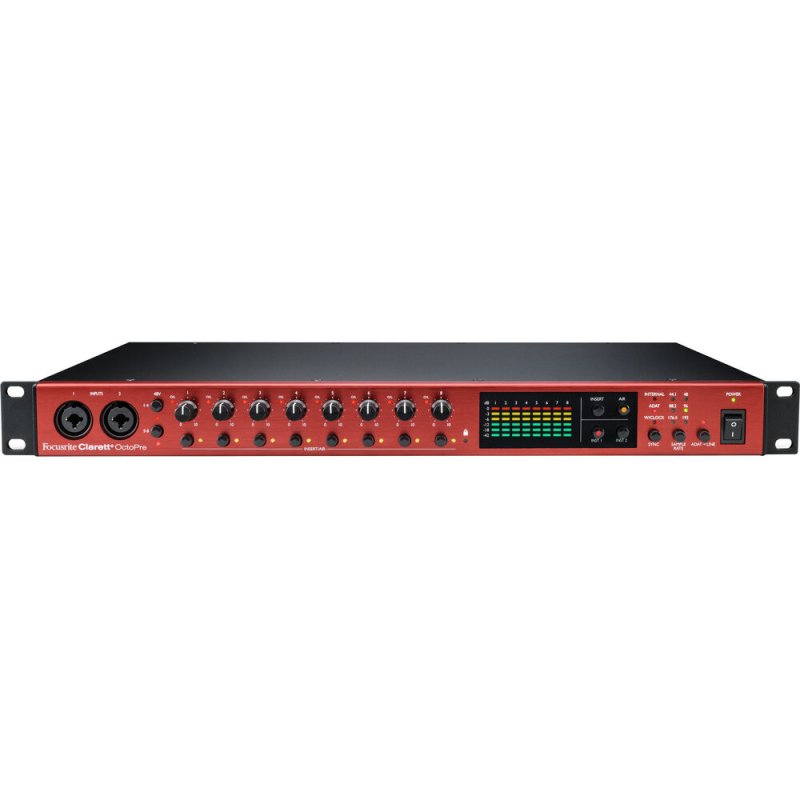

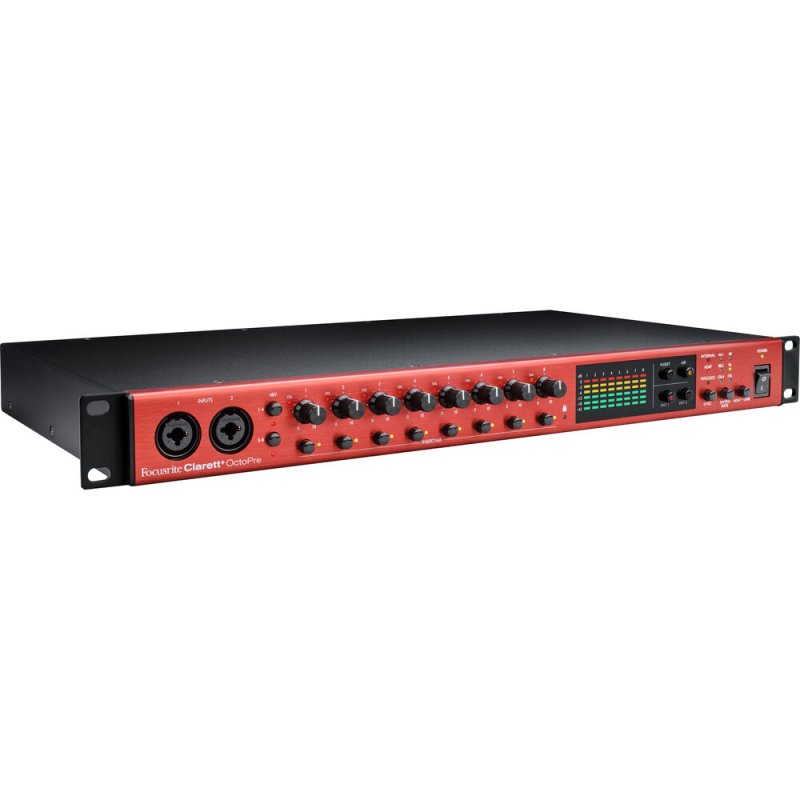

Designed to provide an additional eight mic pres, eight line outputs, and 24-bit / 192 kHz AD/DA conversion, the Focusrite Clarett+ OctoPre connects with your existing interface via ADAT connections. Building upon the success of the original OctoPre, the Clarett+ OctoPre features improved high-dynamic-range A/D and D/A conversion with ultralow distortion that provides clearer mixes and stunning details at all levels. The mic pres are outfitted with Focusrite's proprietary Air feature, which allows you to switch impedances to emulate an analog ISA preamp. You can also instantiate a transformer-resonance effect to lend your signal clarity and a sense of air. These mic pres switch automatically between mic level and line level.

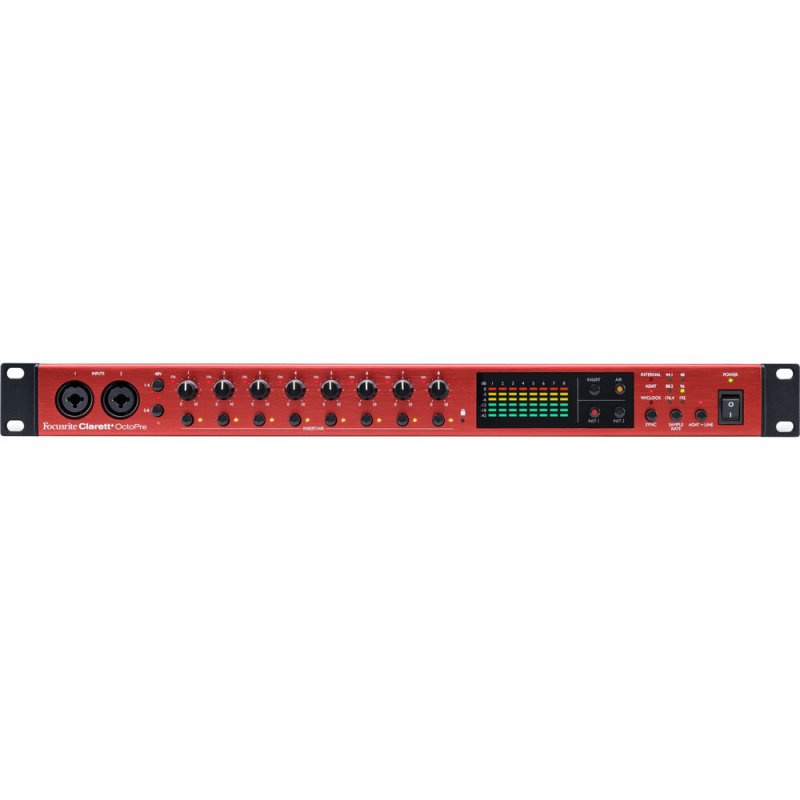

The front-panel inputs feature an extended amount of headroom to suit the high-output signal of sources such as electric guitars, while the rear panel offers XLR-1/4" combination jacks for the remaining six inputs. With a dynamic range of 118 dB, each input leads into a 24-bit analog-to-digital conversion stage capable of sample rates up to 192 kHz. Every input also sports its own insertion point—with hardwired relay bypass—for outboard compressors, EQs, or any processor you have.

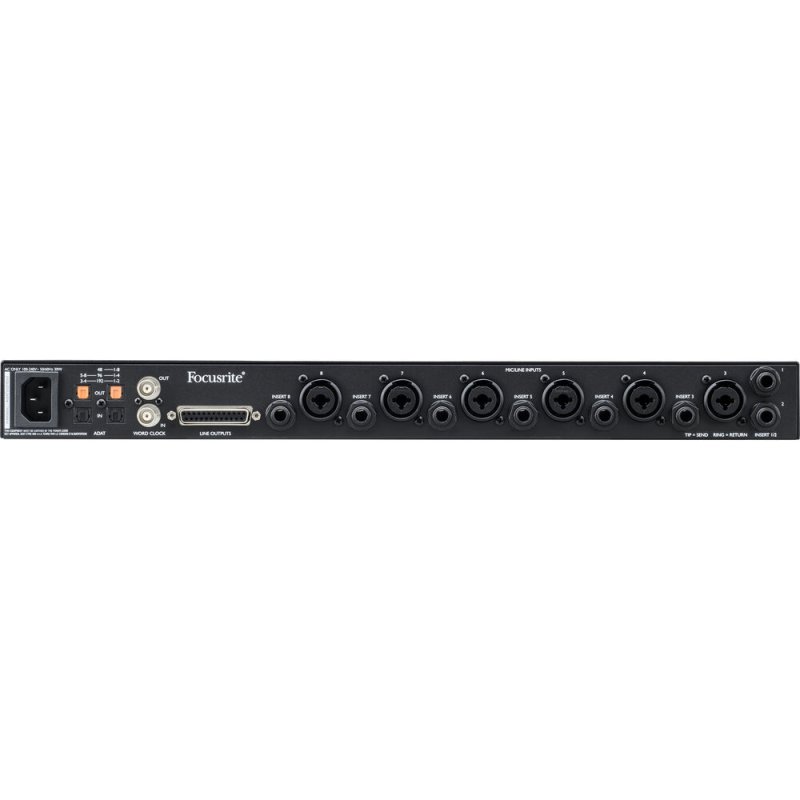

On the output side, the Clarett OctoPre offers eight channels of digital-to-analog conversion, giving you 118 dB of dynamic range in the process. The analog outputs are accessible via a 25-pin D-sub connection. As the outputs can also be configured to accept line-level signal from the mic pres, this device is suitable for mixing sessions and for feeding live consoles, while simultaneously recording on the digital side.
The Classic Focusrite Sound with All-Analog Air
Get closer to the origins of Focusrite with premium relay-controlled analog circuitry on every preamp that emulates the classic Focusrite ISA 110, as featured on the original Focusrite Studio Console. |
