Tascam

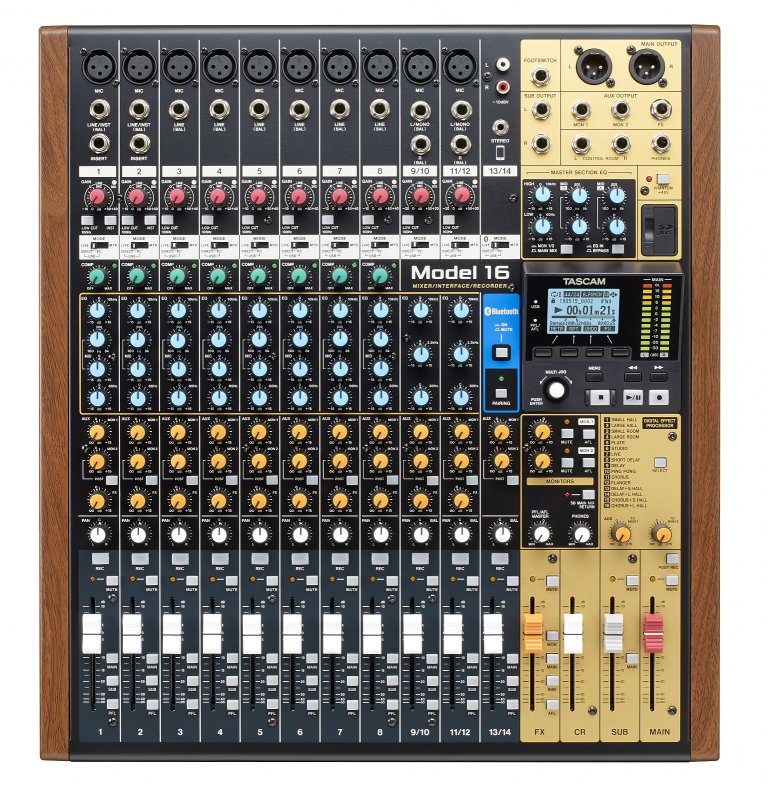

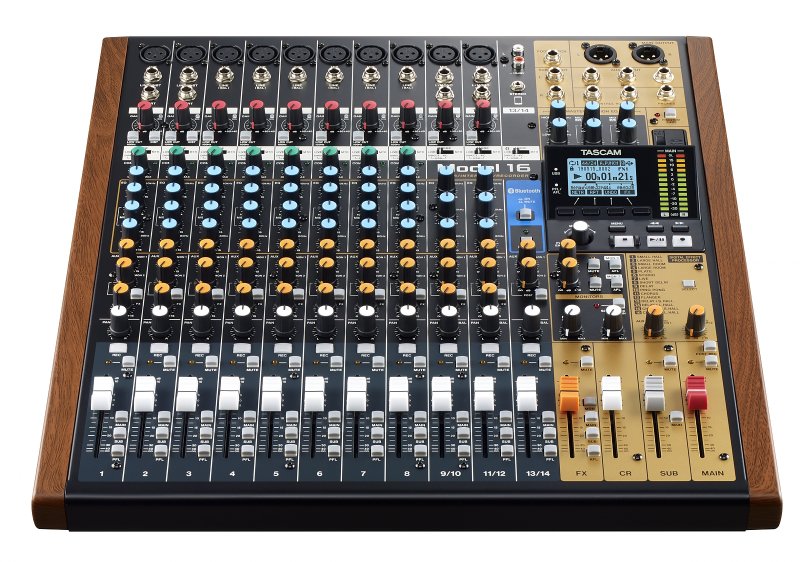

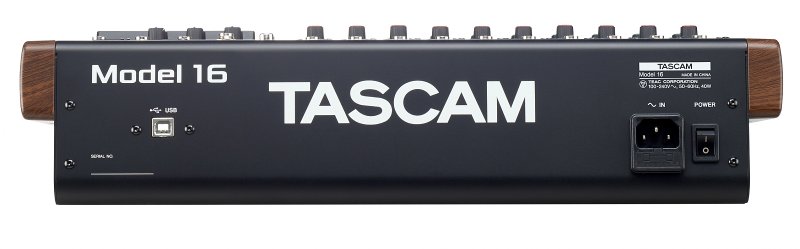

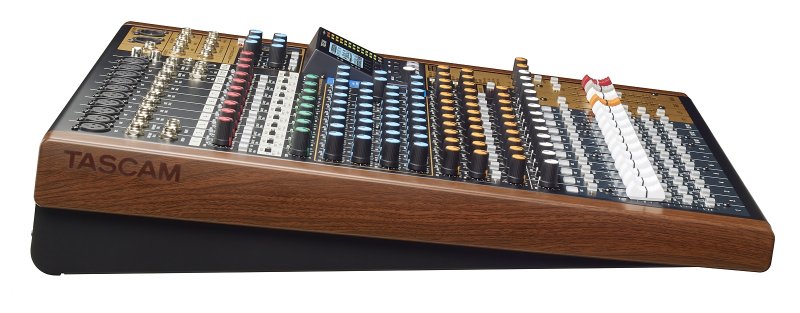

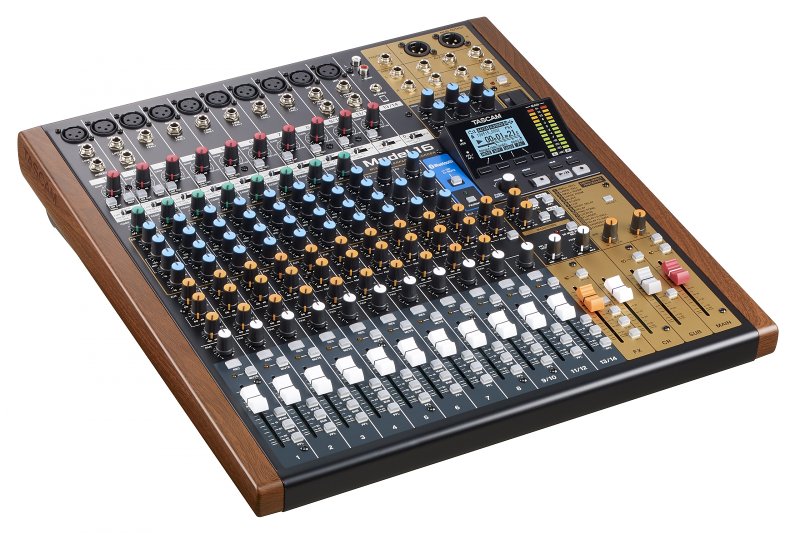

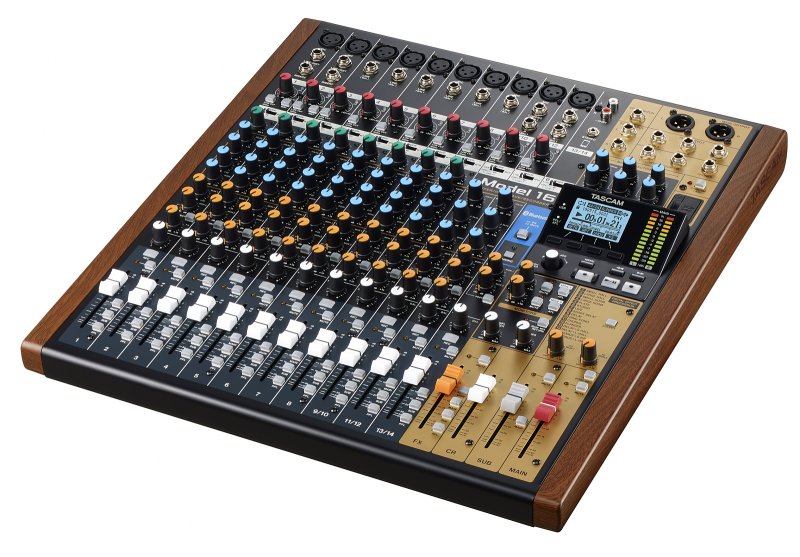

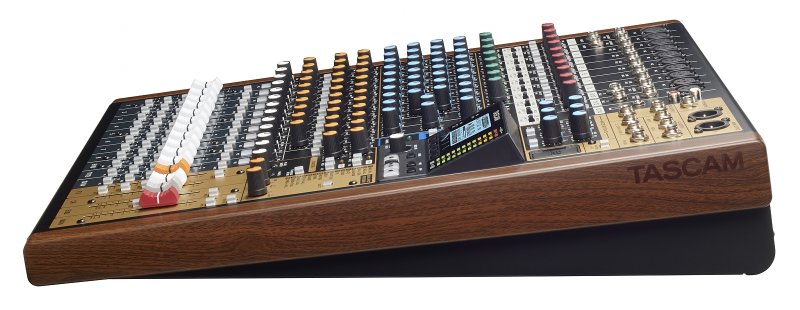

14-Channel Analogue Mixer With 16-Track Digital Recorder

Brand: Tascam
Model: MODEL16
UPC: 043774034079
Please log in to see your price
Dealer locator
19 inch rack mount ears and screws kit for Model 16.

14-channel analogue mixing console with built-in 16-channel multi-track recorder and USB audio interface

14 analogue inputs

Three Aux outputs (monitor 1 (pre fader), monitor 2 (pre/post fader), effects (post fader))

Three stereo outputs with independent master faders (Main, Sub, Control Room)

One-knob compressor for channels 1–8

Switchable low-cut filter (100 Hz) for eight mono and two stereo channels

Switchable Mute, Stereo/Sub routing and PFL on each input channel

Three-band equalizer with sweepable mids for eight mono channels, fixed mids on stereo channels

Semi-parametric EQ with two sweepable mid bands (wide/narrow) for stereo and sub outputs

Built-in Bluetooth receiver for wireless playback

On-board effects processor

60-mm faders on each channel

12-segment LED output level meters

XLR balanced outputs for main stereo bus

TRS balanced outputs for sub, control room, monitor 1/2 and effects send

Headphones output with level control (80 mW per channel)

more
About This Product

Description:

An all-in-one analogue mixer, multi-track digital recorder and audio interface The Tascam Model 16 all-in-one mixer brings the flagship Model 24’s powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a fully featured compact mixer that combines the warmth of analogue with a digital workflow. The Model 16 is the perfect mixing solution for small-format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless. With the Model 16, your perfect mix has met its match. 14 Inputs for Complete Flexibility 14 easy-to-access top-panel inputs provide flexible options for microphones, instruments or other audio sources. You can connect up to 10 mics, 14 line signals or two instruments for live recording or mixing. There is also a Bluetooth 5.0 enabled stereo input for a streaming audio device that also provides (selectable) RCA connectors and a stereo mini jack for direct connection of CD player or mobile playback device. Pristine Audio Quality Mic inputs 1 through 8 deliver pristine audio quality, featuring Tascam’s Ultra-HDDA (High De?nition Discrete Architecture) technology for pure, transparent natural tone with ultra-low noise. Professional Channel Strip Control Features A tactile Gain knob tops each channel for precise tweaking of input levels. A push-button low-cut filter and three-position input selector (Live/PC/MTR) facilitate quick and easy control of input source signals. A 1-knob inline compressor is available on inputs 1–8 as is a 3-band EQ with sweepable mid range.
Specifications
  • Barcodes
  • UPC
  • 043774034079
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 1
  • Each
  • Cubic Feet
  • 2.3674
  • Height In Inches
  • 8.8
  • Length in Inches
  • 22.9
  • Pounds
  • 22.4
  • Width Inches
  • 20.3
