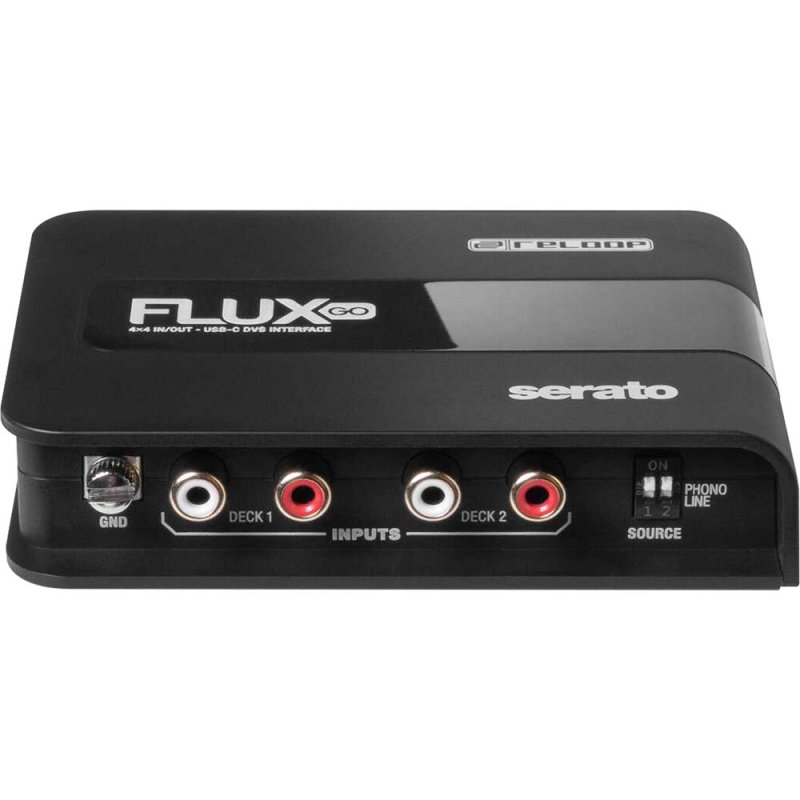

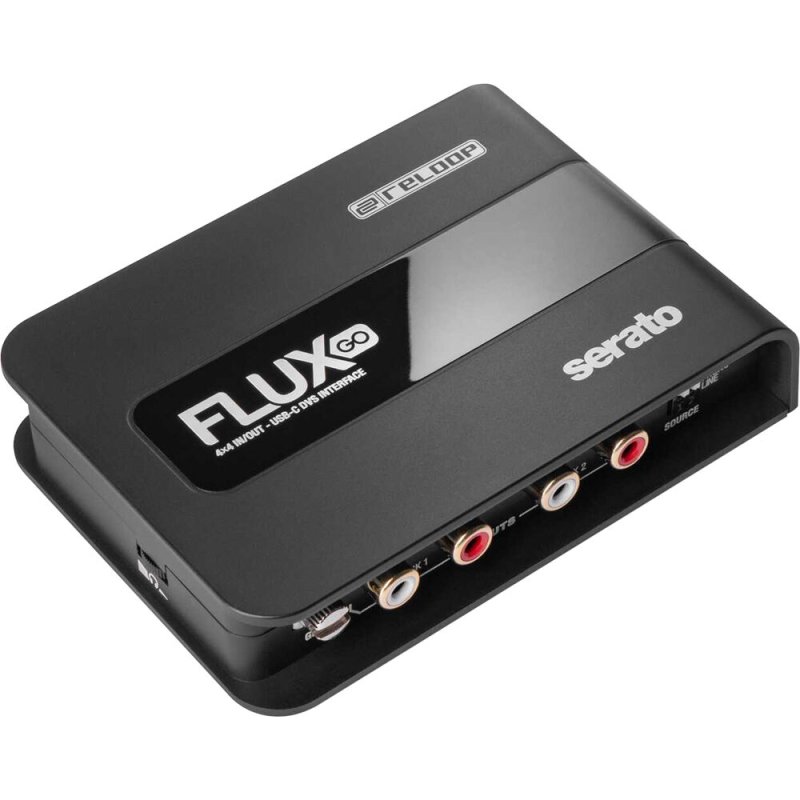

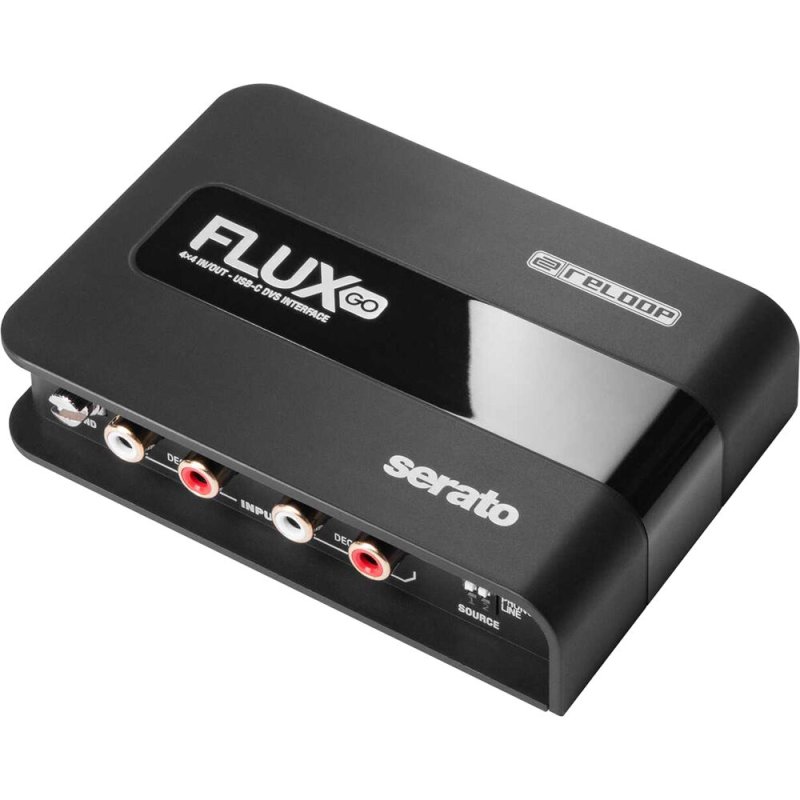

The Reloop Flux Go is an ultra-compact DVS interface for Serato DJ Pro. This smaller sibling of the acclaimed Serato DJ audio interface impresses with its portability and outstanding features.
With dual stereo inputs and outputs, a bus-powered USB-C cable for power and audio transmission, and a ground connection for turntables, the Flux Go provides DJs with everything they need for a professional DVS setup.
Features
- Pocket-sized USB-C DVS audio interface for Serato DJ Pro
- Studio-grade 24-bit/96 kHz sound card with excellent audio and ultra-low latency
- 4x4 In/Out audio interface with headphone connection turns any mixer into a DVS system
- 2-channel (4x4 In/Out) USB-C DVS interface for Serato DJ Pro

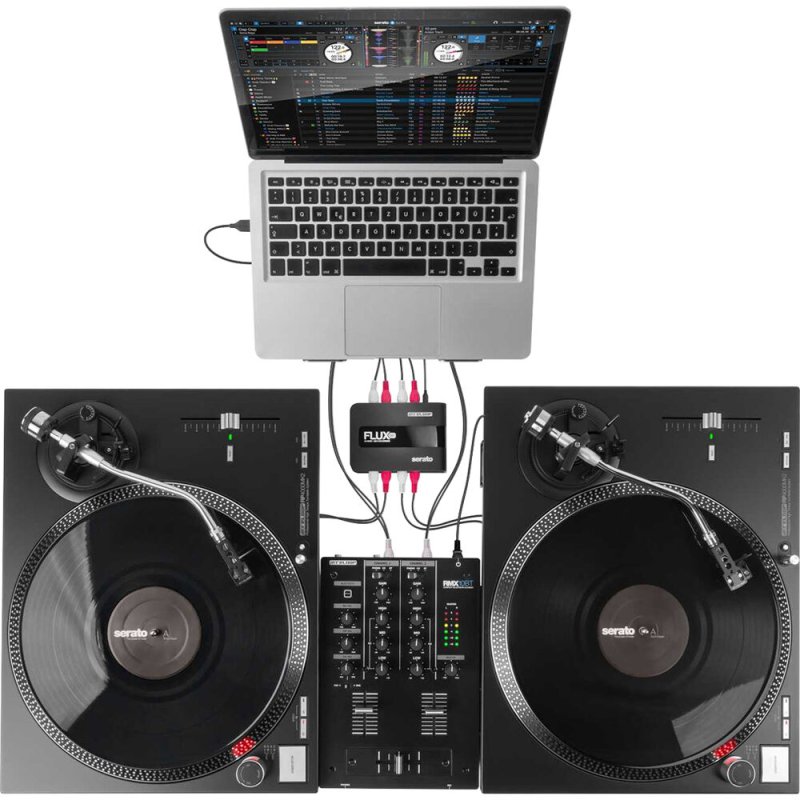

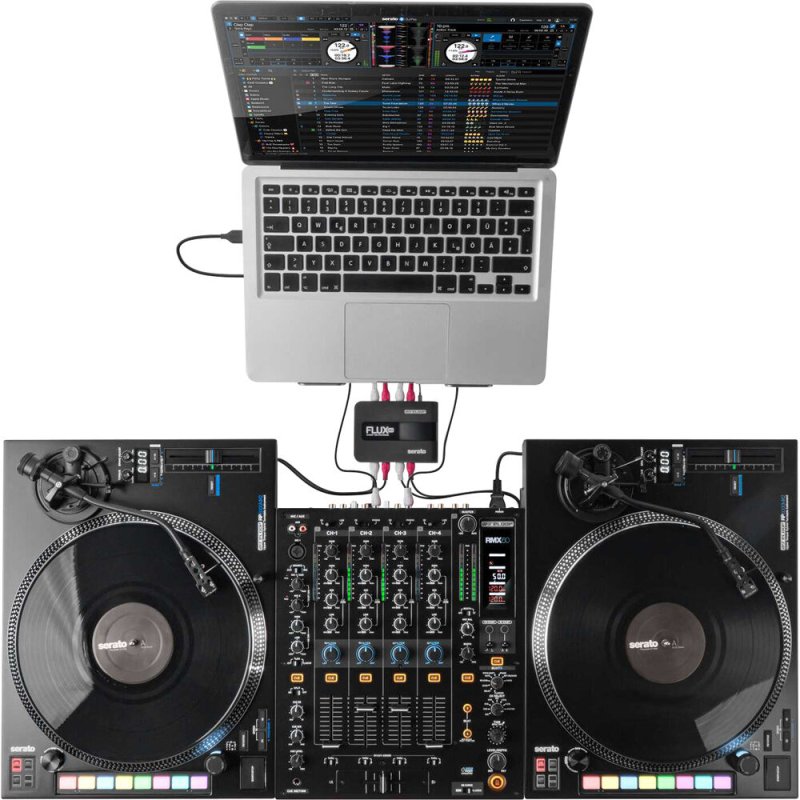

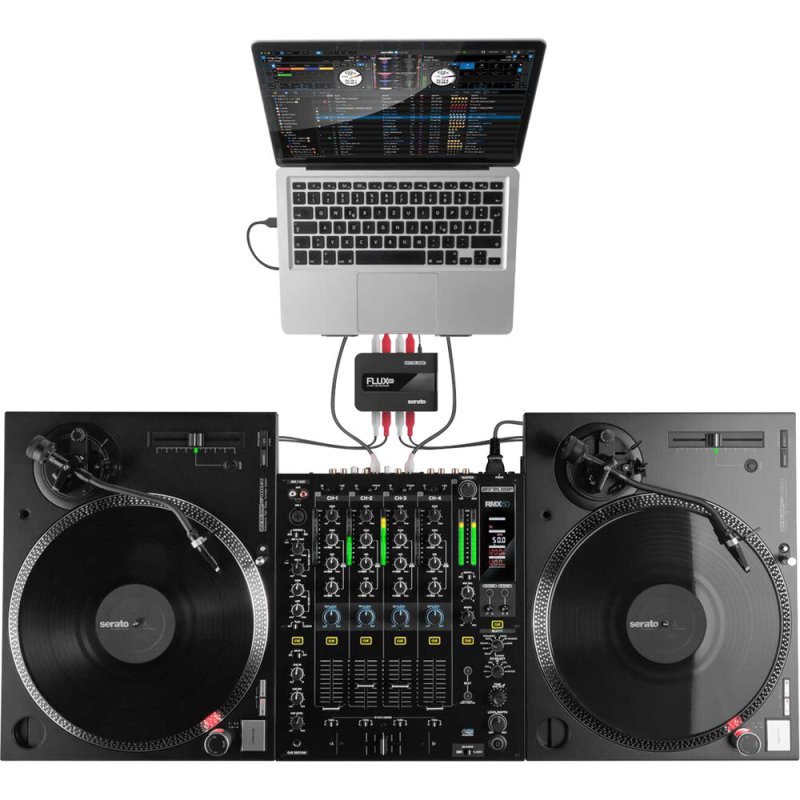

- Turn any mixer into a professional digital vinyl system
- Unlocks full version of Serato DJ Pro and Serato DVS
- Studio-grade 24-bit class-compliant sound card with crystal-clear audio and ultra-low latency response
- Supports up to 96 kHz with high-quality D/A converters for excellent audio processing
- Plug 'n' Play for macOS systems and for other devices with USB-C (class-compliant), ASIO driver available for Windows
- Doubles as a Plug 'n' Play USB soundcard to play any system audio through the 3.5 mm headphone jack and RCA output simultaneously
- Convenient headphone volume control on the side panel
- Also functions as a studio interface for recording and playback of audio in any 3rd party audio software
- 2 inputs for turntables or CD/Media players, switchable in any combination via dedicated DIP switches
- 2 line outputs for connecting a mixer
- Dedicated GND terminal for grounding turntables
- Gold-plated, corrosion-resistant audio connections
- USB-C bus-powered cable connection for power and audio
- Power LED on the side panel for connection status
- Lightweight and ultra-compact with sturdy housing design for reliability on the go
- Extended edge design to protect connection terminals
Specifications
- USB audio interface with 24-bit / 44.1 kHz, 48 kHz, 96 kHz
- Class-compliant
- USB 2.0 high-speed
- Power Supply: DC 5 V / 500 mA (USB-C)
- S/N Ratio (1 kHz reference input level, with A-w/20 kHz LPF, input short when no signal):
- Line input at +9 dBV, nominal 116 dB, limited 113 dB,
- Phono input at -23 dBV, nominal 97 dB, limited 94 dB
- THD + N (1 kHz reference input level, headphone volume to min, with A-w/(20 kHz LPF):
- Line input at 0 dBV, nominal 0.007%, limited 0.015%,
- Phono input at -32 dBV, nominal 0.015%, limited 0.03%
- Maximum Gain (Input 1 kHz / -50 dBV in Line mode, then reference to Phono mode):
- Phono internal gain +32 dB, nominal +/- 0.5 dB, limited +/- 1 dB
- Maximum Input (1 kHz input level to output level less than 1% T.H.D, with A-w/20 kHz LPF):
- Line input at +9 dBV, nominal +9 dBV, limited +8 dBV
- Phono input at -23 dBV, nominal -23 dBV, limited -24 dBV
- Maximum Output (1 kHz input level to output level less than 1% T.H.D, headphone volume to max, with A-w/20 kHz LPF):
- Line 10K OHM / +9 dBV, nominal +9 dBV, limited +8 dBV
- Phones 32 OHM / +3 dBV, nominal +3 dBV, limited +2 dBV
|
