32-Channel AVB Networked Stage Box For StudioLive

32-Channel AVB Networked Stage Box For StudioLive

Name: 32-Channel AVB Networked Stage Box For StudioLive
SKU: NSB-32.16

Brand: Presonus

Model: NSB-32.16

UPC: 673454009563

Please log in to see your price

Dealer locator

Take your vision from inspiration to finished product with Studio One 6 Pro. Compose, record, produce, mix, master, and even perform with Studio One's complete set of virtual instruments, world-class effects, and arrangement tools.

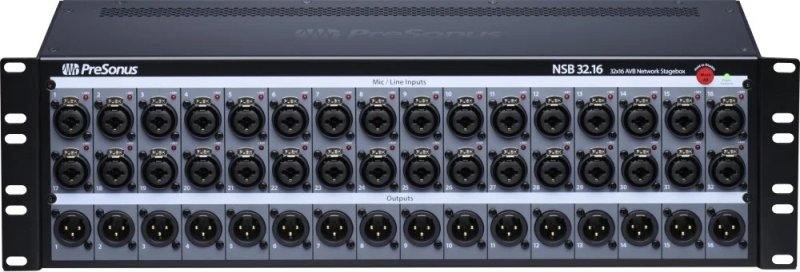

Rugged 3U 19-inch rack enclosure with multi-position rack ears for flexible installation

32 locking, combo mic/line inputs and 16 XLR line outputs

32 remote-controllable XMAX preamps

Gain compensation provides independent control from multiple mixers

16 locking XLR line outputs

2 Stereo AES3 Digital Outputs

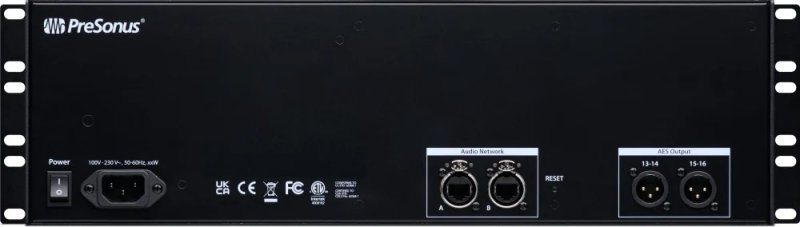

2 AVB ports with locking XLR Ethernet jacks

64x16 AVB (32 direct input channels + 32 gain compensated input channels)

Mute All button

+48V indicators

Easy setup and remote gain control from StudioLive® Series III mixers and free PreSonus® UC Surface software

About This Product

Description:

Expand the capabilities of your StudioLive Series III mixer (sold separately) with the NSB-32-16 32 input remote stage box. 32 balanced mic/line combo jack inputs feature wide dynamic range Class A XMAX preamps that capture everything from a whisper to a scream with detail and transparency. All inputs are remote controllable from a StudioLive Series III console (sold separately) or via the free UC Surface software on your favorite computer or personal device. Sixteen locking XLR outputs feed your console and a two-port AVB switch that allows daisy-chaining multiple units (sold separately) for scalability. The NSB-32-16's rugged 3-unit 19-inch chassis features multi-position rack ears for flexible installation providing access to I/O from the front or rear. It can be flush or recess mounted and is compatible with most racks and universal stage pockets.
