Name: XLR Microphone Adapter Kit for Cameras (FUJIFILM)
SKU: CA-XLR2D-F

Brand: Tascam

Model: CA-XLR2D-F

UPC: 043774035182

XLR Microphone Adapter Kit for Cameras (3.5mm Analog)

Please log in to see your price

Dealer locator

The Master 424 Studio C-60 High Bias Type-II Cobalt Cassette from Tascam is a genuine high bias mastering cassette tape designed for use in studio cassette recording workstations, such as Tascam's own Portastudio.

Microphone adapter with XLR input expansion for mirrorless cameras

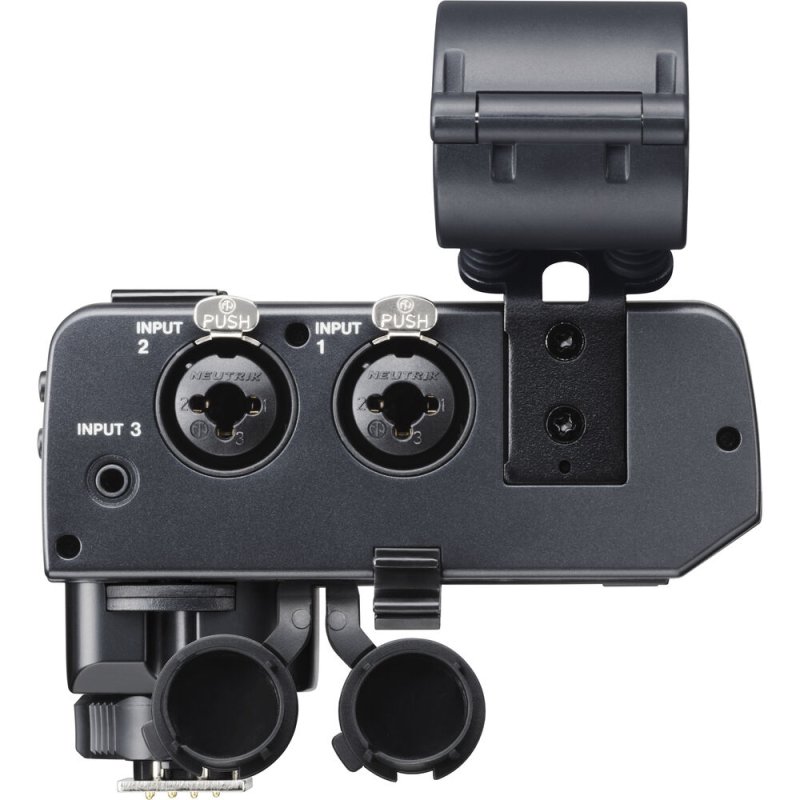

Equipped with 2 XLR/TRS input terminals, you can use the optimum microphone according to the set and environment

Equipped with a high-performance AD converter, it can directly transmit digital audio without deterioration to the camera via a accessory shoe. (Compatible manufacturers: Canon, FUJIFILM)

Power can be supplied from the camera body via the corresponding accessory shoe (Compatible manufacturers: Canon, FUJIFILM)

Equipped with a high-performance HDDA mic preamplifier for high sound quality, low noise, and wide dynamic range

(microphone / line level switching, + 48V phantom power supply compatible)

Equipped with 1/8-inch stereo mini jack (INPUT 3) for a lavalier microphone or microphone requiring plug-in power

Compatible with virtually all cameras that have an analog input by using the included battery box, cold shoe mount adapter, detachable microphone holder with shock mount mechanism, and analog audio cable

Equipped with a convenient cable holder for wiring around the camera

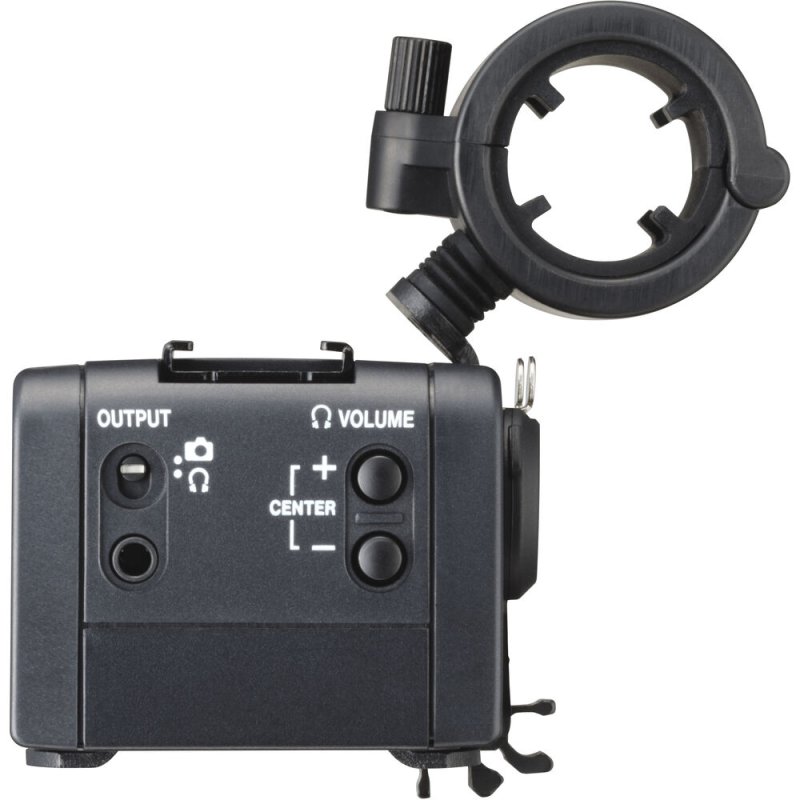

Camera mode: Audio can be transmitted to the microphone input of the camera.

Headphone mode: Direct monitoring with headphones is possible.

Equipped a cold shoe mount on the top panel for extra adapters or accessories

Replaceable shoe connection adapter.

Conversion adapters "CA-AK1-C", "CA-AK1-F" and "CA-AK1-AN" for accessory shoe connection are available.

One unit can support both Canon and FUJIFILM cameras by switching the conversion adapters.

Attenuator function: 0dB / 20dB / 46dB

Low cut filter: OFF / 80Hz / 220Hz

Limiter function

Auto level function

Overload indicator for each input level

1+2 LINK function: Linked volume, level and limiter of INPUT 1 and INPUT 2

Equipped with a convenient cable holder for wiring around the camera

English (Download)

About This Product

Description:

CA-XLR2d is a XLR microphone adapter for mirrorless cameras developed in collaboration with Canon, FUJIFILM , and Nikon. Developed together with FUJIFILM, this unit's hot shoe connection supports and provides a high compatibility with their data communication hot shoe. Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialog, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the master mixer using the line level capability, CA-XLR2d supports a wide variety of shooting applications. Equipped With a High-performance AD Converter, Direct Transmission of Digital Audio to the Camera Because of TASCAM know how and premium AD converters, the CA-XLR2d is all about clean, noise-free, professional audio. It enables high-quality audio and smart voice recording utilizing various specialized brands of audio equipment. By transmitting digital audio directly to the camera via an accessory shoe that supports digital transmission, there is no deterioration in sound quality, but it also frees you from the work of synchronizing images and sound in post production. In addition, the CA-XLR2d is driven by the power supply from the camera, so if you connect it to a compatible camera, you can have compact operation without the need for a dedicated power supply.

Specifications
