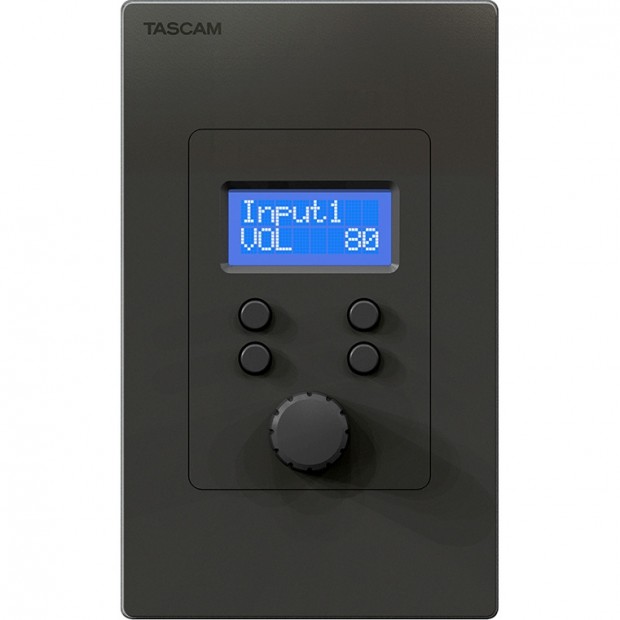

Wall-mounted programmable controller for MX-8A
Equipped with 1 encoder (with push switch) and 4 switches
Enables switching sources and adjusting volume (including muting)
Functions can be assigned to the encoder and the switches using TASCAM MX CONNECT
Prevents end-users from making mistakes by assigning only necessary functions to the controller
Two source switching modes available
MODE 1: One mode for selecting sources directly by pushing switches (up to 4 sources can be assigned)
MODE 2: Custom source mode for selecting sources from a screen (up to 8 sources can be assigned)
Easy-to-read display
Name of the selected source and current volume can be checked
Automatic backlight off function
Daisy chaining of up to 8 units is possible using cables rated category 5e or higher (maximum length 200 m)
Power supply can be provided to the unit via MX-8A (RS-485)
Reduces power construction and installation costs
