Name: Stereo Chorus & Vibrato Pedal With Depth & Rate Controls
SKU: WA-C1

Brand: Warm Audio

Model: WA-C1

UPC: 860010169155

Please log in to see your price

Dealer locator

The WA76-A and WA76-A2 are faithful recreations of the vintage 76 “blue stripe”-style FET studio compression known for its extra “grabby” fast attack and vintage analog grit.

100% Analog Stereo Chorus & Vibrato Pedal With Depth & Rate Controls & Selectable Impedance

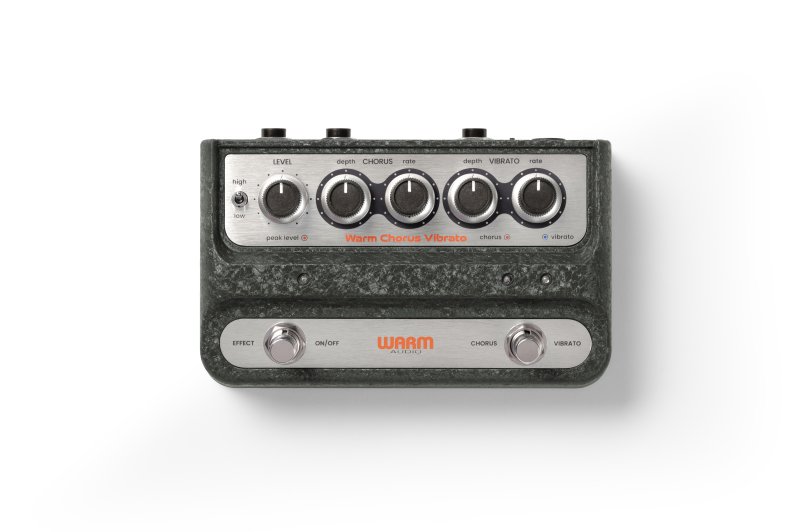

Controls: High/Low Input Sensitivity, Preamp Level, Chorus Depth & Rate, Vibrato Depth & Rate, Effect On/Off, Chorus/Vibrato Switch, Hi-Z On/Off.

Components: (5X) IC’s (Including 3X Texas Instruments Premium Audio Op Amps In Signal Path) | (11X) Discrete Transistors | (3X) FETs | (19X) Diodes 2 x MOSFETs and a premium Xvive MN3007 BBD chip recreation.

Power consumption: 800mW; 90mA at 9V With Vintage-Correct Internal Voltage Operation Via Dual DC-DC Voltage Converter

Input sensitivity: 80mV /1 0mV

Output level: 315mV

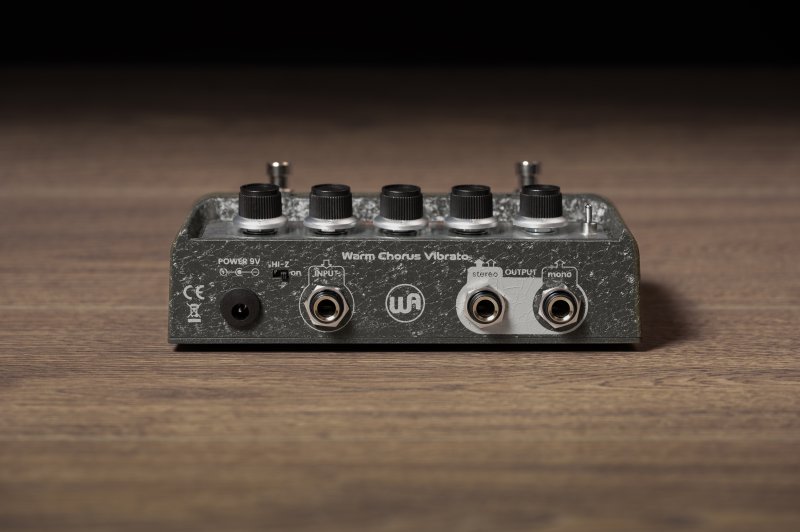

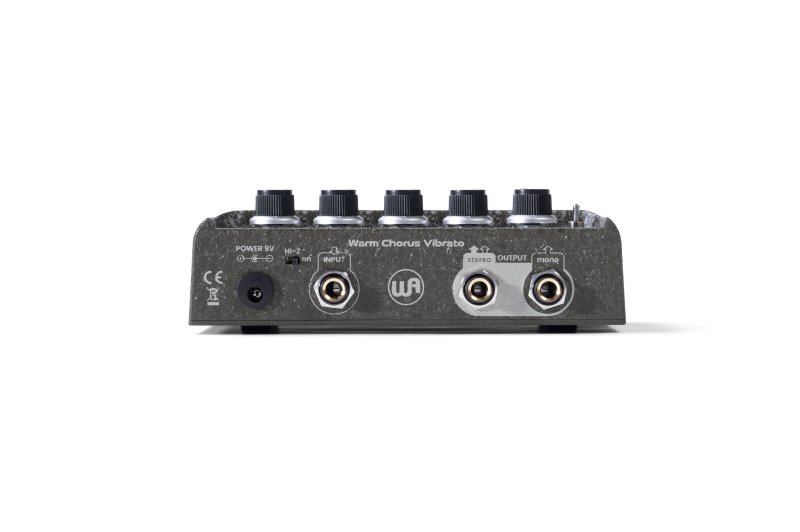

Jacks: (1X) Input, (2X) Outputs

Dimensions: W: 6.5” | H: 3.8” | D: 1.6” | Weight: 1.9 lbs

About This Product

Description:

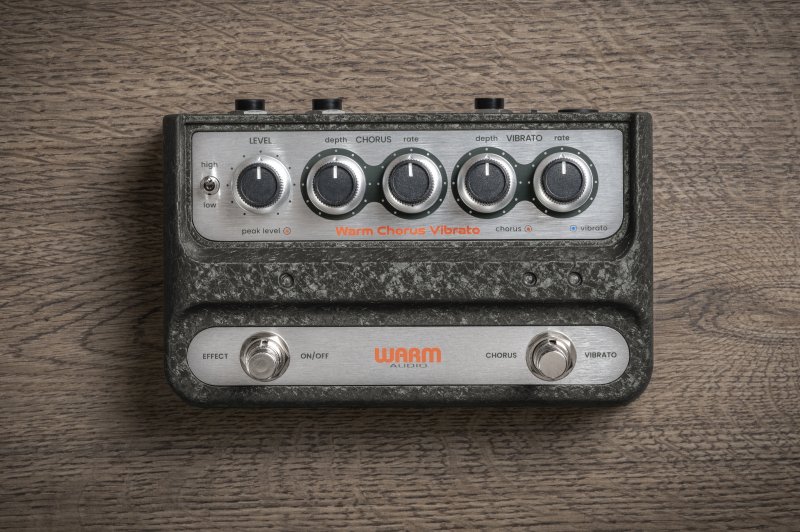

The WA-C1 Chorus Vibrato is a faithful recreation of the most celebrated all-analog chorus in guitar pedal history with additional no-compromise features for exploring legendary modulated tones. WA-C1 starts with a premium, all-analog preamp known for being a favorite of guitar players who demand ultra-responsiveness. The lush chorus setting features separated depth and rate controls to expand beyond the limitations of vintage units while delivering true-to-original tone. The vibrato section is preserved as authentic to the original pedals, and an added hi-z switch on the back of the pedal allows players to compensate for higher impedance of guitars vs. keyboards to add clarity to the high end on guitars if desired.
