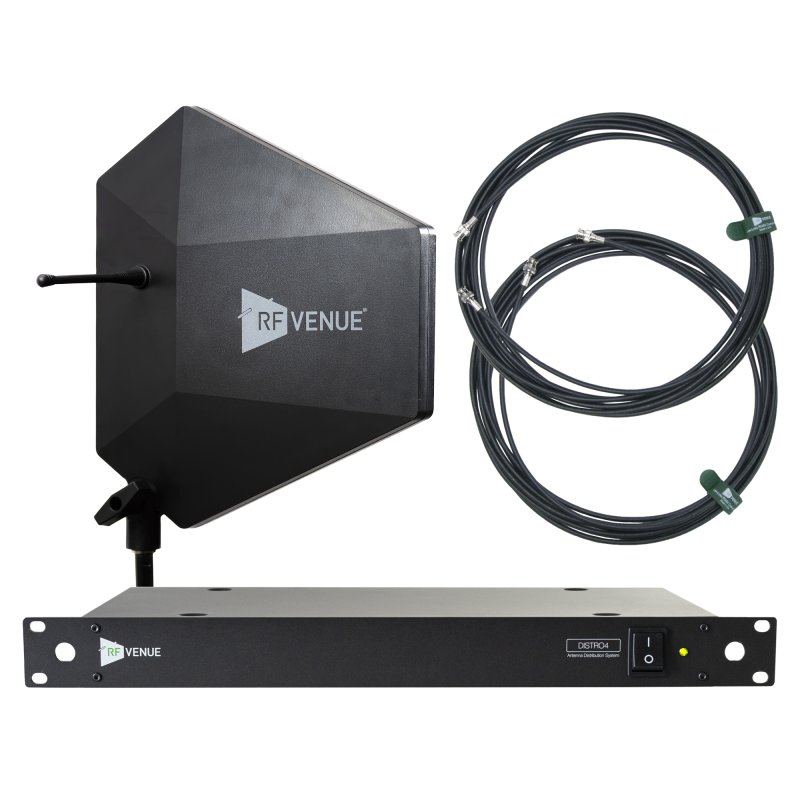

4 Channel Wireless Microphone Upgrade Pack with Diversity Fin® IPX Antenna, Black
The 4 Channel Wireless Microphone Upgrade Pack with Diversity Fin® IPX Antenna is the ultimate turnkey RF solution for professionals who need rock-solid wireless performance in the most demanding environments. This comprehensive bundle combines the rugged, IP-rated weather-resistant Diversity Fin IPX Antenna with the high-performance DISTRO4 Antenna Distribution System and premium RG8X cabling.
By integrating patented cross-polarized technology with centralized RF and power distribution, this bundle eliminates the need for multiple "shark fin" paddles and messy "wall wart" power supplies. It is the definitive upgrade for touring rigs, outdoor festival stages, and permanent outdoor installations.
KEY FEATURES
- Turnkey RF Management: Provides everything needed to support up to four wireless receivers from a single antenna position.
- IP44-Rated Protection: The Diversity Fin IPX features a weather-resistant seal and downward-facing BNC connectors, built to survive rain and dust.
- Patented Cross-Polarization: Combines LPDA and dipole elements to capture both vertical and horizontal signals, effectively eliminating multi-path dropouts.
- Reduced Rack Clutter: Replaces 8 individual whip antennas and multiple power adapters with one streamlined, professional system.
- Expansion Ready: Using dedicated RF cascade ports, any pair of RF outputs to the RF inputs of a second DISTRO4
- High-Quality Signal Path: Includes two 25-foot RG8X coaxial cables to ensure low-loss signal transfer between the antenna and your rack.
WHY CHOOSE THIS BUNDLE?
The Diversity Fin IPX Bundle is designed to solve the two biggest headaches in wireless audio: signal dropouts and cable chaos.
The IPX antenna is uniquely forgiving of transmitter orientation— the cross-polarized design maintains a constant lock on the signal regardless of a performer’s position on stage. Inside the rack, the combination of the DISTRO4 and the OCTO Cable transforms a "rat's nest" of wiring into a clean, reliable power and signal hub, allowing you to focus on the performance rather than the gear.
BUNDLE COMPONENTS & SPECIFICATIONS
- Diversity Fin IPX Antenna: 470–928 MHz, IP44 Rated, Cross-Polarized
- DISTRO4 Antenna Distribution System: 4-Way RF Splitter with High-Quality Internal Power Supply
- RG8X Coaxial Cables: (2) 25-foot low-loss cables with BNC connectors
- System Impedance: 50 Ohm
- Mounting: 5/8”-27 Threaded Mount (EU adapter included)
IN THE BOX
- (1) Diversity Fin IPX Antenna
- (1) DISTRO4 Antenna Distribution System
- (2) RG8X 25-foot Coaxial Cables (Black)
- (2) Spare Dipole Antennas for IPX
- (1) Dipole Storage Case
- (1) Threaded EU Microphone Stand Adapter
PRO TIP: This bundle is the ideal for touring and permanent outdoor installation. If your project involves an indoor wallmount installation where aesthetics are the priority, check out the RF Venue Diversity Architectural Antenna DISTRO4 Bundle.
