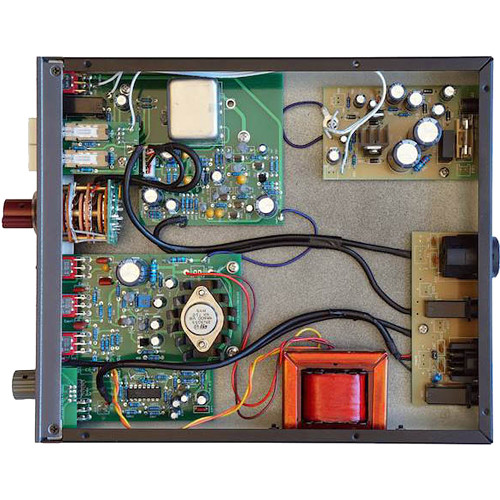

No integrated circuits in the signal path.
14 dB output pad allowing the user to overdrive the output stage and transformer

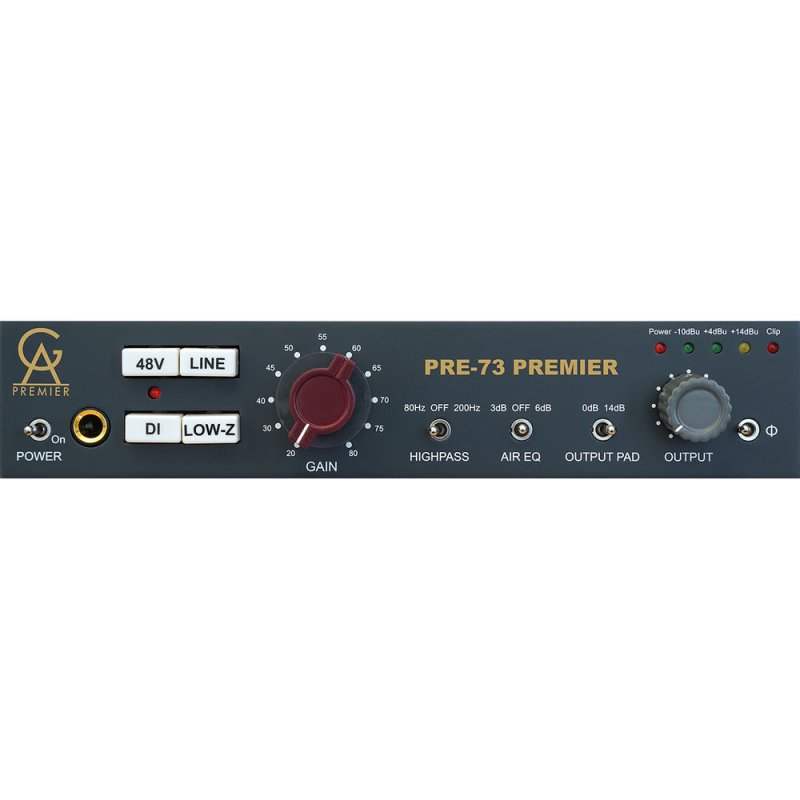

A simple but effective 4-step LED output level meter.The output level control makes it possible to make fine gain adjustments and also to overload the main gain stage(s) for more character
Maximum gain in mic mode is 80 dB, enough to handle passive ribbon mics with quiet sound sources.
Switchable impedance in mic mode, 1200 or 300 Ohm, will change the tone of most mics. The input impedance in line mode is 10 kOhm
Combo XLR/TRS input jack and separate output XLR and TRS jacks for flexible connections
Gain switch range is 20 - 80 dB. Line mode switch, gain is reduced by 30 dB in line mode
Switchable phantom power and absolute phase
A high-impedance instrument input for any sound module, electric guitar or bass
Selectable 6 dB/octave high pass filter at around 80 Hz (HP1) or 200 Hz (HP2)
