40 mixing channels
26 buses

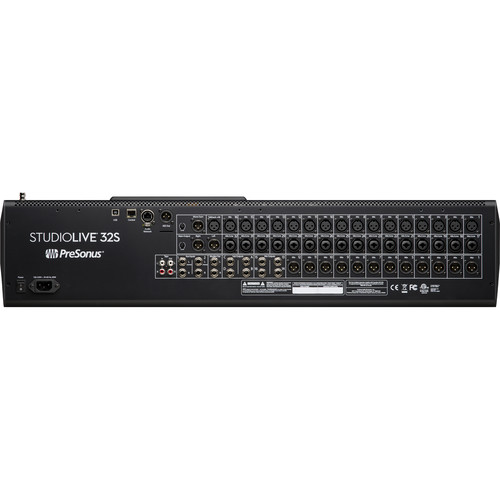

32 recallable XMAX preamps via 16 XLR inputs and 16 XLR-1/4" combo inputs

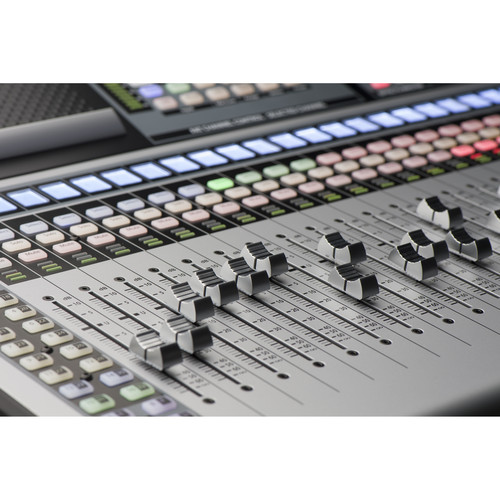

33 touch-sensitive motorized faders

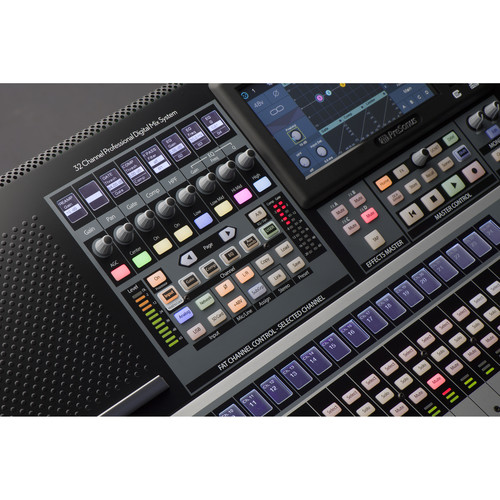

Dynamic Fat Channel layout allows access to every Fat Channel parameter and aux send via eight Fat Channel encoders with scribble strips
Dual-core FLEX DSP mix engine
286 processors in various form factors
Built-in Bluetooth receiver for wireless music streaming
Expandable plug-in processing with ten vintage EQ and classic compression options on every input channel and bus
Input delay, high-pass filter, gate, compressor, limiter, and parametric 4-band EQ per input channel
High-pass filter, compressor, limiter, output delay, and parametric 6-band EQ per bus
FLEX FX multi-effects processor with four slots to load legendary reverb emulations anddelays with four dedicated effects buses
16 FlexMixes (aux mixes, subgroups, or matrix mixes) with 12 XLR and four 1/4" TRS mix output jacks
Four static subgroup buses with 1/4" outputs
Four designated effects buses
24 DCAs to control groups of channels
True virtual soundcheck simplifies mix configuration
Enhanced scene management with scenes organized into projects, scene lock, and channel safe
Password-protected user profiles enable restricting access to specific features
Channel scribble strips and input metering
