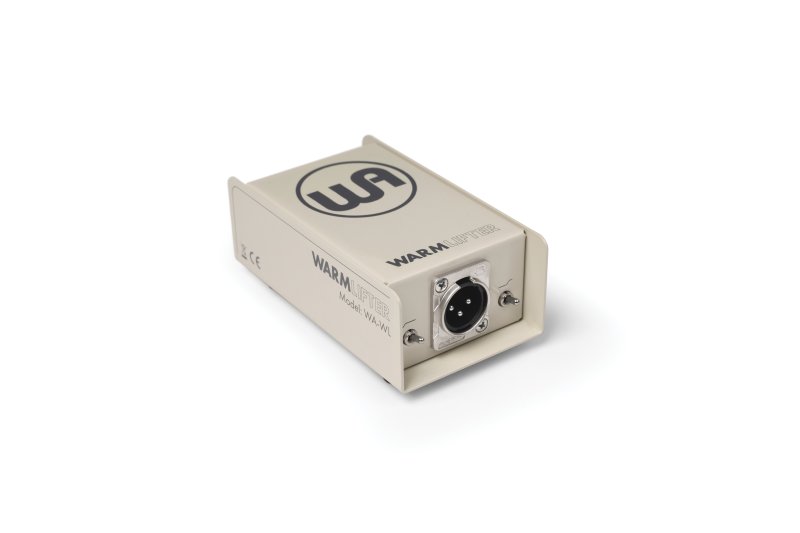

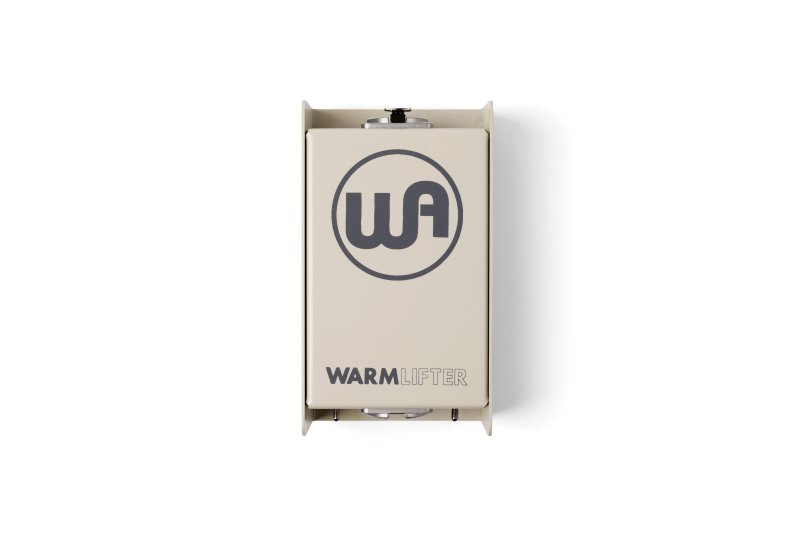

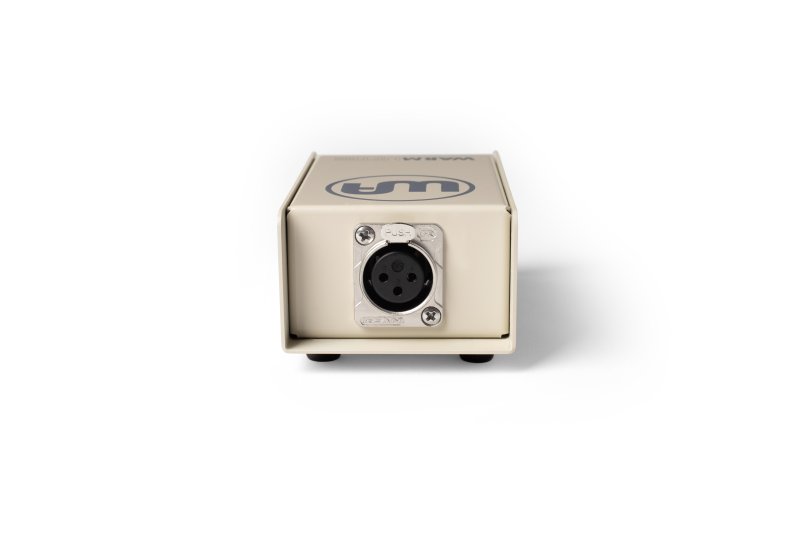

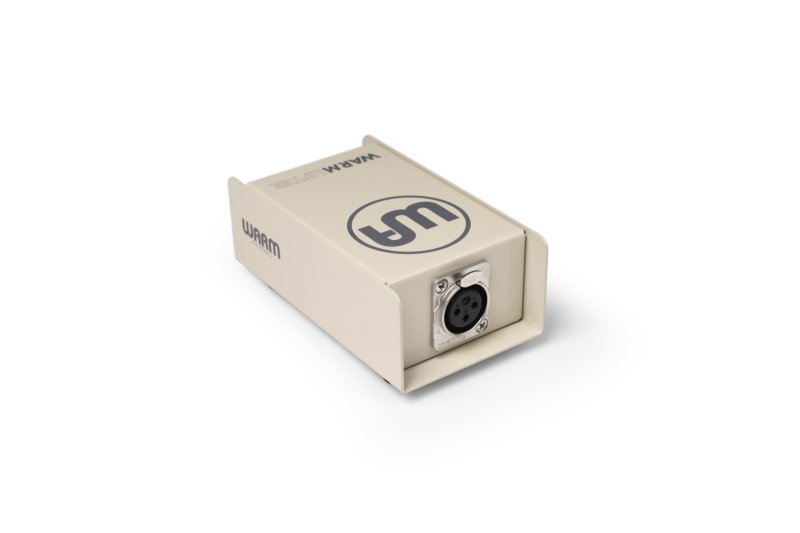

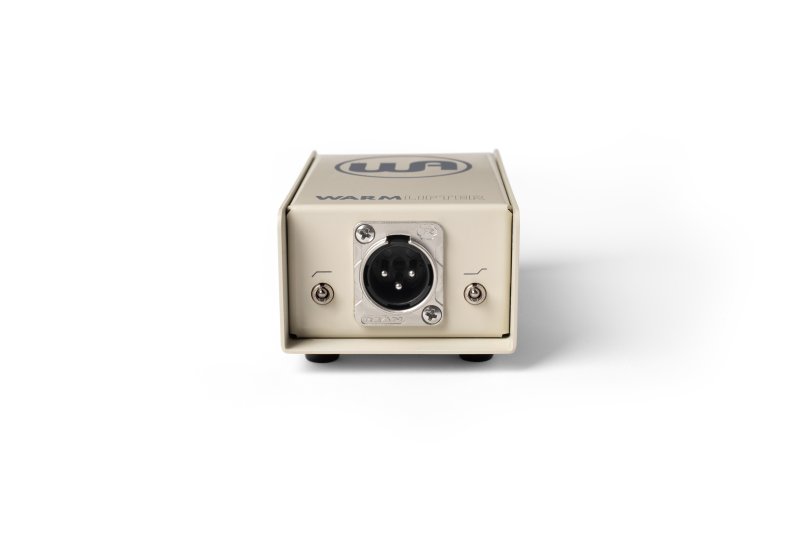

Inline Active Microphone Preamp
Ultra Low Noise JFET Input
Balanced (In/Out) Signal Path
26 dB Of True Analog Gain
Selectable 100 Hz (12 dB) High-Pass Filter | Selectable 3 kHz (2.5 dB) High-Shelf Boost
Input Impedance: 2.4k Ohm | Output Impedance: 150 Ohm
Max-Input: -6 dBu (388mV rms) | Max-Output: 20 dBu (7.75V rms)
THD+N ratio 1kHz @ 14dBu: <-107dB (0.00047%)
Output Noise: 7.75 uV (A-weighted) with 150 Ohm Input
Frequency Response: 10-200kHz +/-0.2 dB
48v Phantom Powered With 4.7mA Current Draw
