Rackmount 32-Channel DB25 to Euroblock I/O Adapter

Rackmount 32-Channel DB25 to Euroblock I/O Adapter

Name: Rackmount 32-Channel DB25 to Euroblock I/O Adapter
SKU: BO-32DE

Brand: Tascam

Model: BO-32DE

UPC: 043774033546

Breakout Box For 16 Balanced Audio Outputs

Please log in to see your price

Dealer locator

Designed for permanent installation, the Tascam MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximum Flex ability, source content can include music, spoken word (microphone

For Live Stage & Commercial Installation

32 Channels of I/O

16 x Euroblock Connectors

4 x DB25 Connectors

Connectors Function as Inputs or Outputs

Rotatable Orientation

Reversible Rack Ears

Passive Design Requires No Power Source

Includes 32 Euroblock Plug Tabs

Includes Cable & Screw Kits

About This Product

Description:

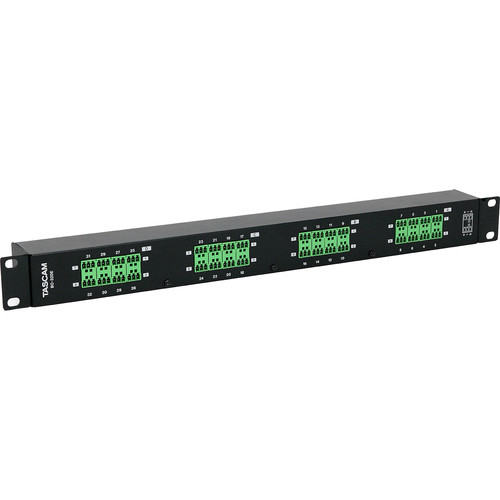

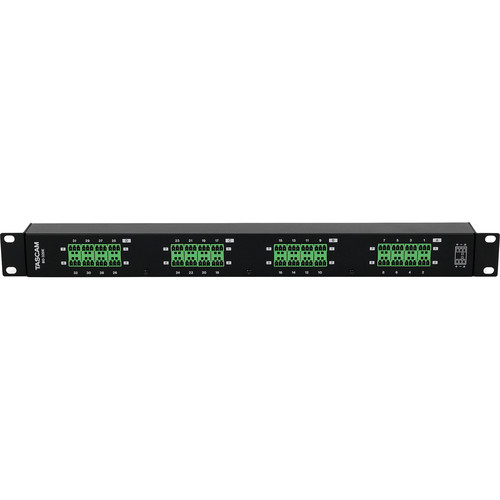

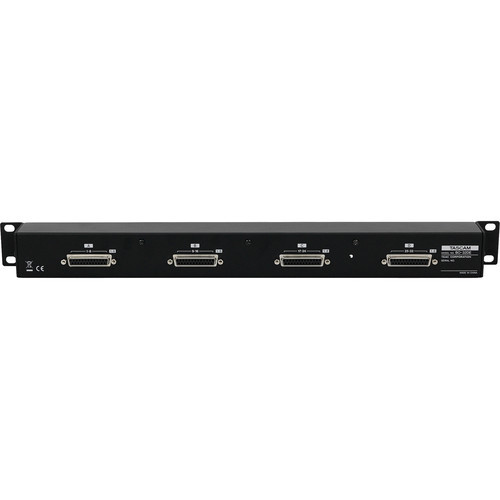

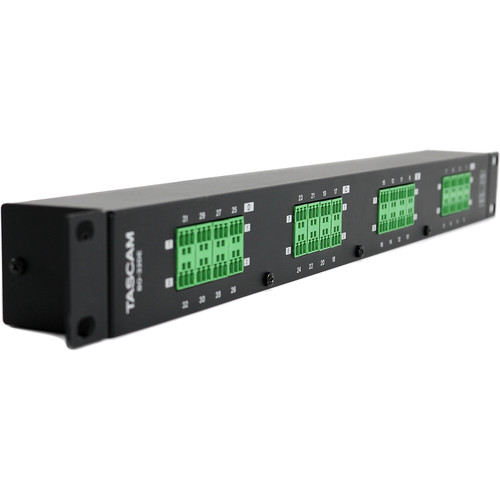

The Tascam BO-32DE is a passive rackmount 32-channel DB25 to Euroblock I/O adapter designed to deliver multi-channel conversion between D-Sub 25-pin and Euroblock for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 32 channels of I/O include 16 Euroblocks and four DB25 connectors, all of which can be used as inputs or outputs. The enclosure occupies 1 RU and allows rotatable orientation to avoid unnecessary stress on cables. The reversible rack ears enable the BO-32DE to be positioned with either the Euroblock or DB25 connectors facing forward. 32 Euroblock plug tabs, a cable kit, and a rackmount screw kit are included.

Specifications
