16 Channel D-Sub to XLRF Breakout Box

Name: 16 Channel D-Sub to XLRF Breakout Box
SKU: BO-16DXIN

Brand: Tascam

Model: BO-16DXIN

UPC: 043774033560

Rackmount 32-Channel DB25 to Euroblock I/O Adapter

Breakout Box For 16 Balanced Audio Outputs

Please log in to see your price

Dealer locator

The black Tascam TM-10LB is a lavalier microphone designed for the DR-10L bodypack digital recorder. The microphone features a Sennheiser-style locking 1/8" connector, making it an ideal choice for Sennheiser-based audio rigs. Additionally, the lavalier w

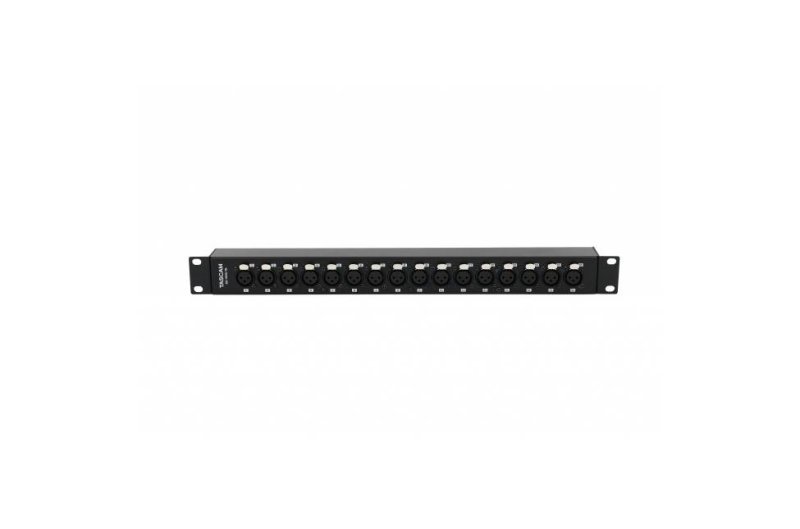

Front panel connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD) x 16

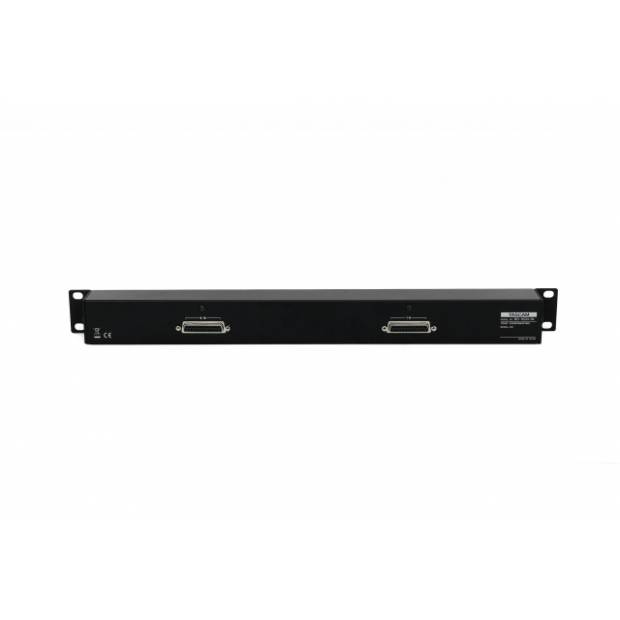

Rear panel connectors: D-sub 25pin female x 2

Fixing screws: No.4-40 UNC (inch type) × 4

Articles included

Screw kit for rack mounting x 1

Instruction manual

Width: 482.6 mm

Height: 44.1 mm

Depth: 54.5 mm

Weight: 0.9 kg

About This Product

Description:

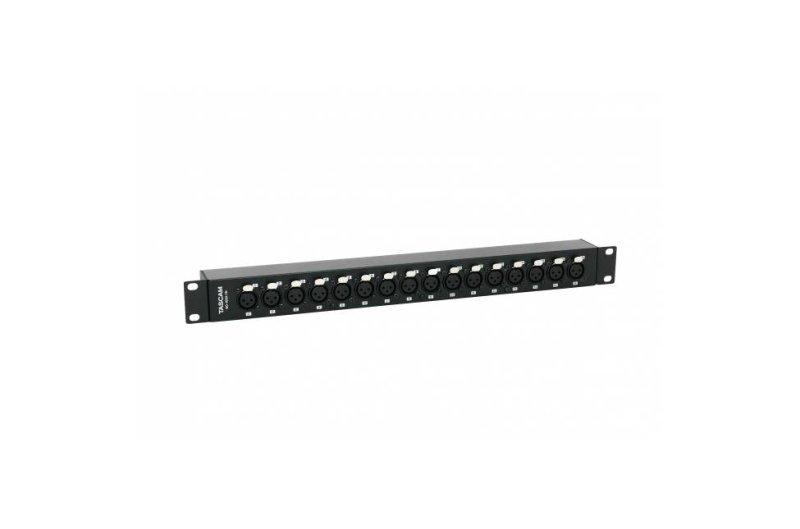

TASCAM BO-16DX / IN is a rack-mounted XRL IN to D-sub OUT adapter designed for professional installations and live audio applications. 16 XLR inputs on the front panel are internally connected to dual D-Sub output connectors on the rear panel, providing a quick and easy way to interface boxes, FOH and monitors with mixing consoles, audio converters over IP and more. Designed as complements for Dante's TASCAM ML-16D and ML-32D analog converters, a combination of BO-16DX / IN and BO-16DX / OUT provides an elegant communication link between analog and digital subsystems. The TASCAM BO-16DX / IN is designed to be mounted in one of two 180-degree rotations to simplify cable runs and avoid unnecessary twisting of the D-Sub connector cables inside the rack. For greater flexibility in rack design, you can reposition the ears of the BO-DX16 / IN rack so that you are facing "foward" or "backward" so that the XLR or D-Sub connectors face the front.

Specifications
