Audix

PS Cable- Tan- AT-HIROSE 4 Pin

Brand: Audix
Model: VX5
UPC: 687471201060
Please log in to see your price
Dealer locator

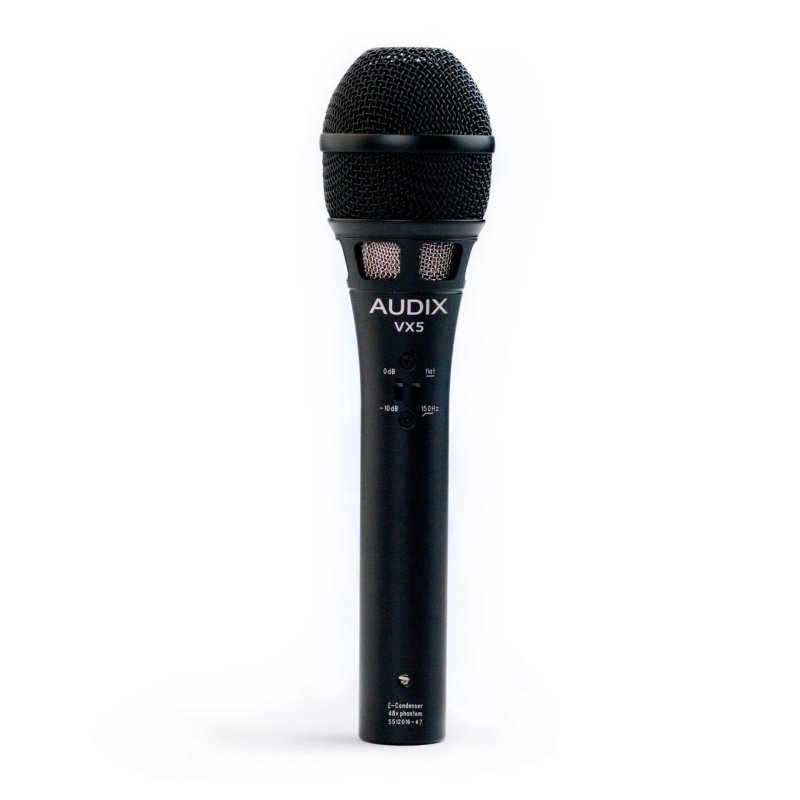

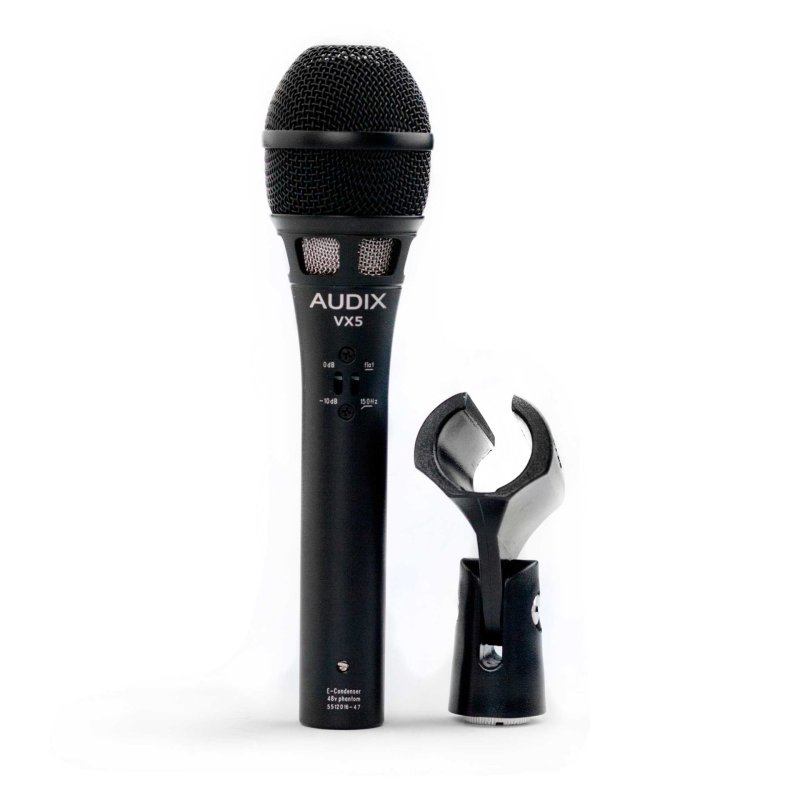

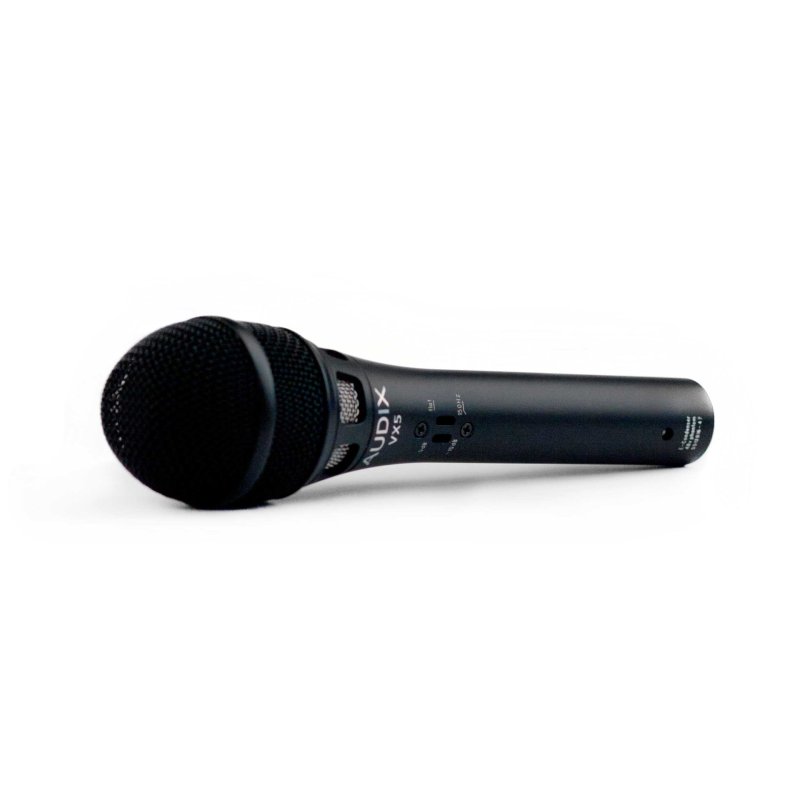

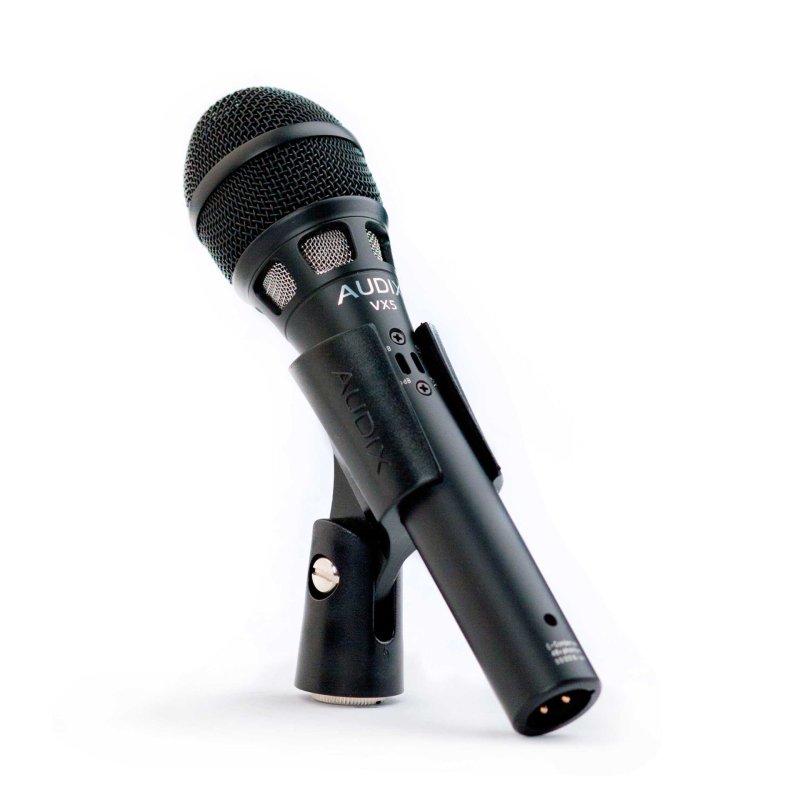

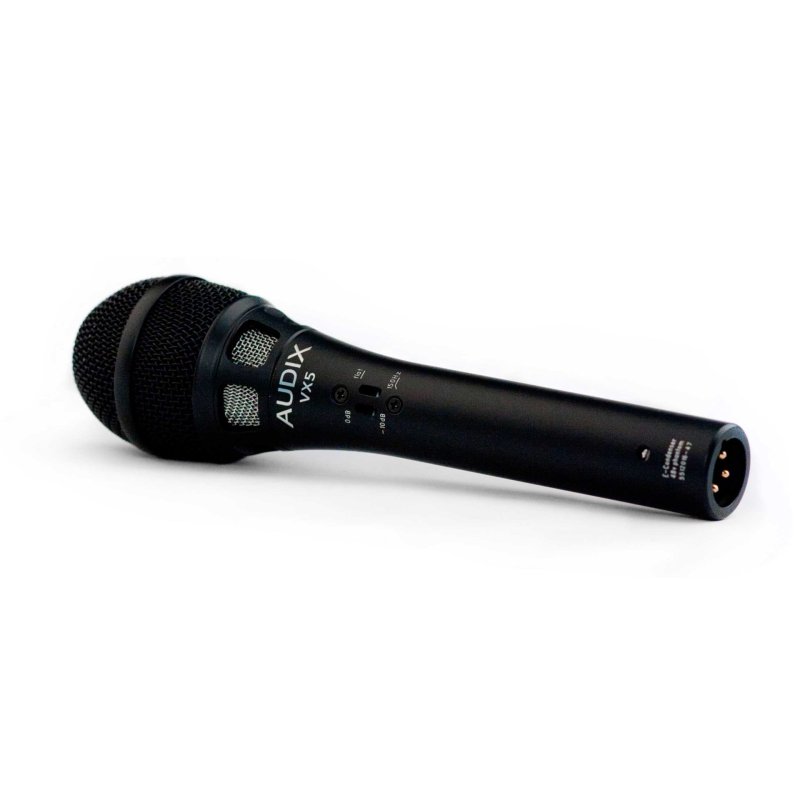

The VX5 is a multi-purpose, professional vocal condenser microphone designed for live, studio, and broadcast applications.

Transducer Type Pre-Polarized Condenser

Frequency Response 40 Hz – 16.5 kHz

Polar Pattern Supercardioid

Output Impedance 150 ohms

Sensitivity 5 mV / Pa @ 1k

Equivalent Noise Level 26 dB (A-weighted)

Signal to Noise Ratio 68 dB

Off-Axis Rejection >20 dB

Maximum SPL =140 dB (w/ -10 pad)

Power Requirements 9-52 V

Connector 3-pin XLRm

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Zinc Alloy & Machined Brass / Black Finish

Weight 277 g / 8 oz

Length 181 mm / 7.1 in

more
About This Product

Description:

The VX5 is a multi-purpose, professional vocal condenser microphone designed for live, studio, and broadcast applications. With an ability to duplicate studio-quality sound on stage, the VX5 has a smooth and accurate frequency response, resistance to feedback, and handles very high SPLs without distortion. Designed with a tight and uniformly controlled super-cardioid polar pattern, the VX5 condenser vocal microphone helps isolate vocals from the rest of the stage. Other features are a 14 mm gold vapor diaphragm, an acoustically ported steel mesh grill with a multi-stage pop filter, and a -10 dB pad and bass roll-off filter. The VX5 will handle SPLs in excess of 140 dB (with pad and roll-off engaged) and will provide over 20 dB of ambient noise rejection on live stages. In addition to vocal applications, the VX5 super-cardioid microphone is designed to capture instruments such as guitars, woodwinds, brasses, percussion toys, drum overheads, hi-hats, and pianos. The VX5 requires 18 – 52 V phantom power.
Specifications
  • Barcodes
  • UPC
  • 687471201060
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.0569
  • Height In Inches
  • 2.6
  • Length in Inches
  • 8.8
  • Pounds
  • 0.85
  • Width Inches
  • 4.3
