Cover Linear Sub 4000

Name: Cover Linear Sub 4000
SKU: TM1

Brand: Audix

Model: TM1

UPC: 687471061282

Please log in to see your price

Dealer locator

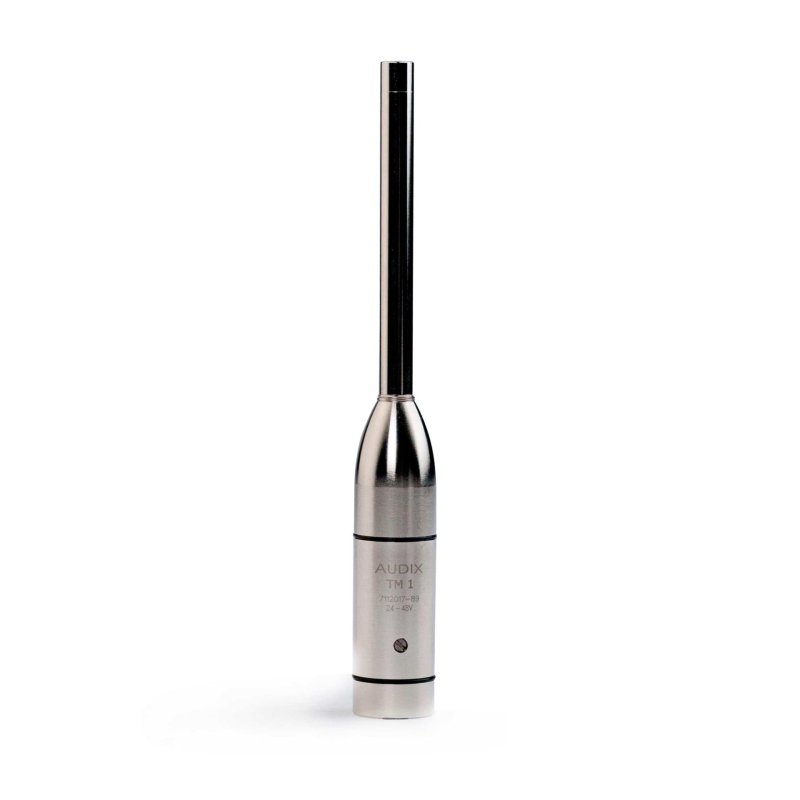

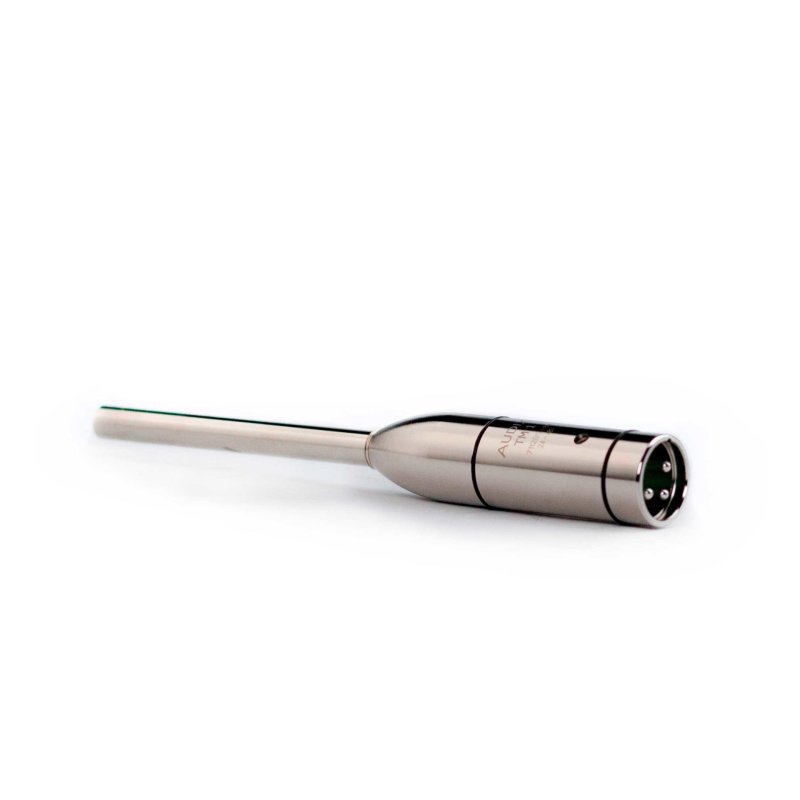

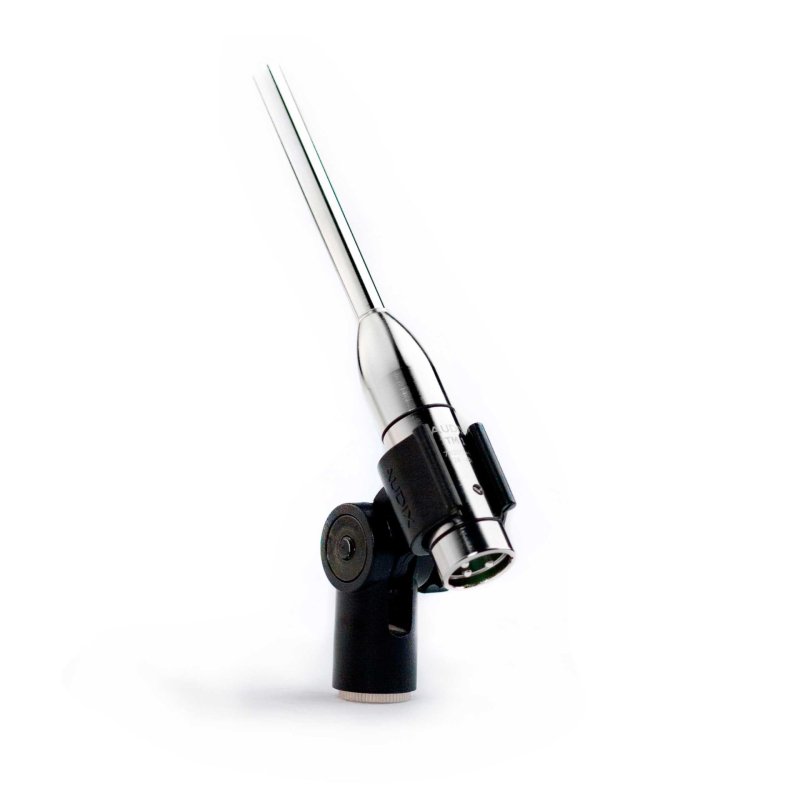

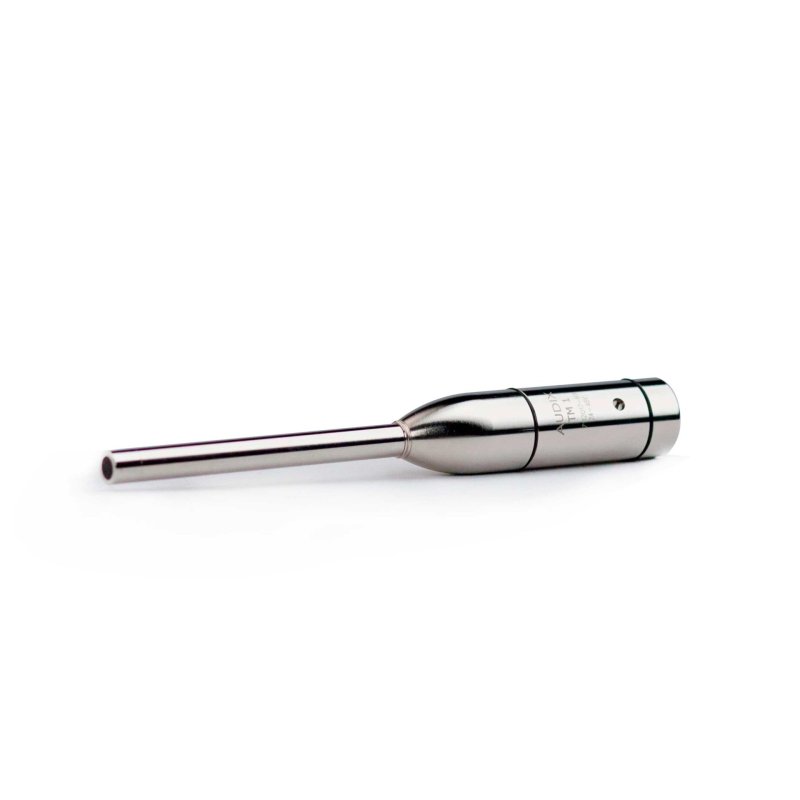

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Transducer Type Pre-polarized Condenser

Frequency Response 20 Hz – 20 kHz +/-2 dB

Polar Pattern Omni

Output Impedance 200 ohms

Sensitivity 6 mV / Pa @ 1k

Equivalent Noise Level 28 dB (A weighted)

Signal to Noise Ratio 66 dB

Maximum SPL 130 dB with distortion <1% 140 dB Max

Power Requirements 24 – 48 V Phantom

Power Consumption 8.9 mA @ 48 Volts

Connector Switchcraft® or Audix male XLR

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish 4 piece precision machined brass / Nickel Finish

Weight 132 g / 4.7 oz

Length 150 mm / 5.9 in

About This Product

Description:

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability. Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts. The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by Audix in the USA.
