5 Mic 6 IEM Super Pack

Name: 5 Mic 6 IEM Super Pack
SKU: M63OMNIB

Brand: Audix

Model: M63OMNIB

UPC: 687471291801

Please log in to see your price

Dealer locator

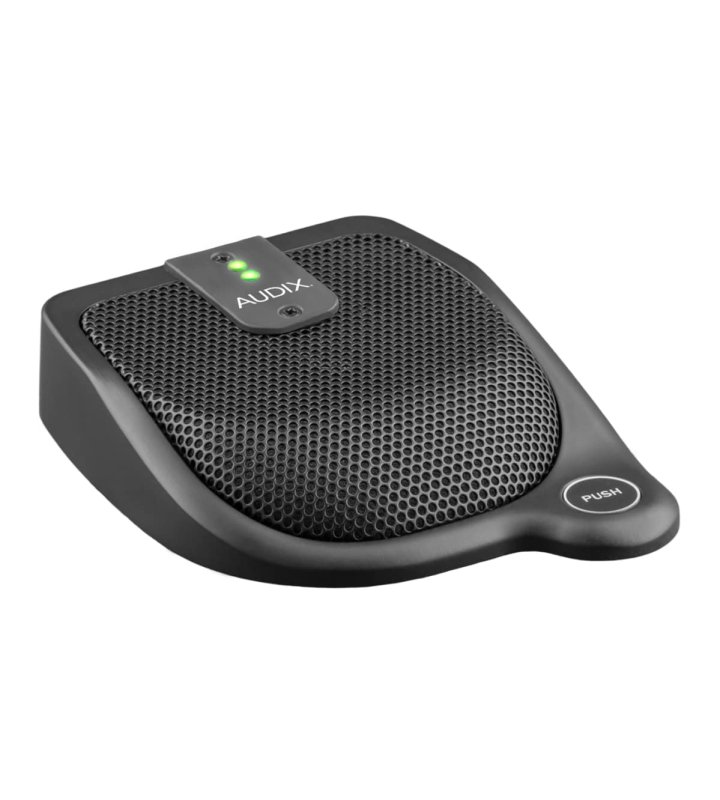

The M63 is a condenser boundary microphone featuring programmable functionality including a local toggle on/off, momentary talk and mute switching, and LED status (red/green) indicators.

Sleek, modern design

Programmable (red/green) LEDs for active/ mute status

Industry-first internal shockmount

Programmable toggle on, toggle off, momentary talk and momentary mute button modes

Ergonomic flush-mount button

Optimized for speech clarity

High sensitivity and signal-to-noise

Immunity from RF interference

Slide-resistant rubber base

Manufactured in the USA with US and foreign components

Transducer Type Condenser

Frequency Response 50 Hz – 15 kHz

Polar Pattern Cardioid or Omni

Output Impedance 150 ohms

Sensitivity 52 mV / Pa @ 1k

Equivalent Noise Level 72 dB

Signal to Noise Ratio 22 dB

Maximum SPL =124 dB

Dynamic Range 102 dB

Power Requirements 48V phantom

Connector Two 3-pin terminal block connectors

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Zinc alloy / black

Weight 350 g / 12.3 oz

Width 81 mm / 3.25 in

Length 103 mm / 4 in

About This Product

Description:

The M63 is a condenser boundary microphone featuring programmable functionality including a local toggle on/off, momentary talk and mute switching, and LED status (red/green) indicators. Optimized for speech, the M63 employs the Micros™ series technology for superior audio quality and performance. The M63 is also the industry’s only programmable boundary microphone with a patented internal shock-mount suspension system to reduce noise caused by touch and surface vibrations. The M63 uses an internal microprocessor programmed to provide common DSP functions at a fraction of the cost of a typical DSP solution. Only the microphone connection (A+, A- and ground) is required for full functionality when set to internal logic. Phantom power is required (No other power supply is needed). For installations not requiring elaborate DSP programming, the M63 provides an easy-to-operate solution without the cost and labor required for DSP operation.

Specifications
