Programmable Output Power Amplifier

Name: Programmable Output Power Amplifier
SKU: NX3.04

Brand: Ashly

Model: NX3.04

UPC: 694970192072

Please log in to see your price

Dealer locator

2 and 4-channel high-output, lightweight amplifier with programmable output on each channel (Hi-Z or Lo-Z, selected via rear panel DIP switches)

Power-saving, Energy Management System (Ashly EMS) automatic <1W Sleep-mode (defeatable) 1

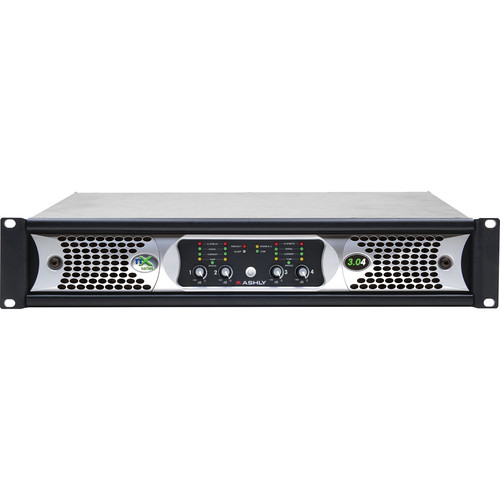

Front panel power switch and level controls (can be disabled for security)

Front panel LEDs for temperature, current, signal, clip, mute, bridge mode, protect, sleep, and disable (of front panel controls)

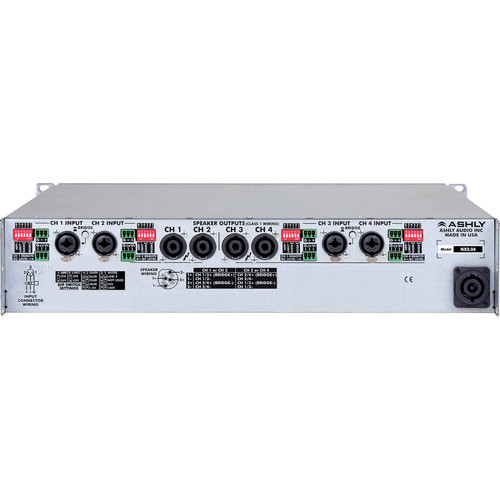

Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors

Neutrik speakON twist locking loudspeaker connectors for security, safety, and reliability

Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration

Remote DC level control on each input channel

Neutrik powerCON detachable AC mains connector

Switch mode power supply automatically detects 120 or 240VAC operation

Extensive protection circuitry, continuously variable cooling fans

Multiple independent internal power supplies provide increased channel separation and reliability

About This Product

Description:

The Ashly NX3.04 Programmable Output Power Amplifier features lightweight, energy efficient Class D switching amplifier technology combined with a switch mode power supply. The NX3.04 amplifier is designed to meet the needs of demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces, and convention centers. The NX3.04 is a base level amplifier, available in either 2 or 4-channel models. Use rear panel DIP switches to program each channel output for either High-Z (70V or 100V Constant Voltage) or Low-Z (stable down to 2O) operation. When in Sleep Mode, the NX3.04 amplifier draws less than 1W.

Specifications
