RockNRoller RCK-1 Shelf Bundle

Name: RockNRoller RCK-1 Shelf Bundle
SKU: ADX40W

Brand: Audix

Model: ADX40W

UPC: 687471061114

Please log in to see your price

Dealer locator

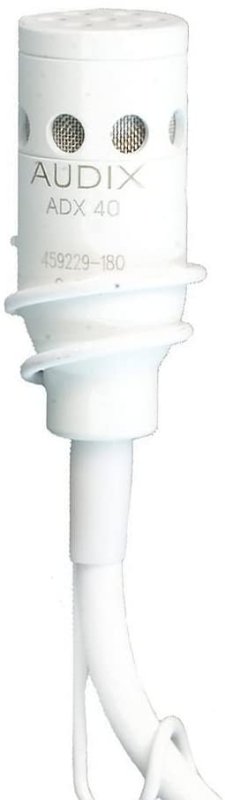

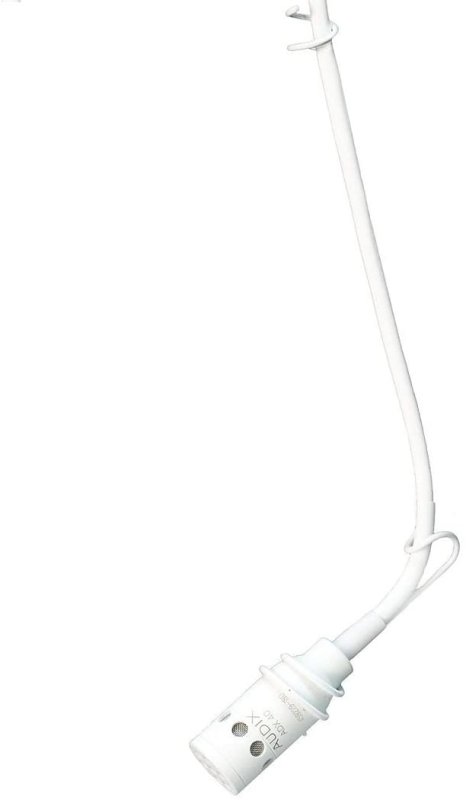

The ADX40 is a miniaturized condenser microphone designed to hang from an overhead position for applications such as group vocals, choir, theatrical production, and room ambiance.

Miniature hanging choir microphone. Requires 9 – 52 V phantom power.

Transducer Type Condenser

Frequency Response 40 Hz – 20 kHz

Output Impedance 250 ohms balanced

Sensitivity 5 mV / Pa @ 1k

Equivalent Noise Level 29 dB (A weighted)

Signal to Noise Ratio 65 dB

Maximum SPL =130 dB

Power Requirements 9 – 52 Volts phantom

Cable/Connector Shielded 30’ terminating to a miniature 3 pin Female XLR connector

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Materials / Finish Brass / Black E-Coat

Weight 110 g / 4 oz

Length 30 mm / 1.2 in

About This Product

Description:

The ADX40 is a miniaturized condenser microphone designed to hang from an overhead position for applications such as group vocals, choir, theatrical production, and room ambiance. Having a uniformly controlled cardioid polar pattern, the ADX40 helps isolate the area or section being miked from other vocals or instruments on stage. The ADX40 is also available in a hypercardioid polar pattern for tighter pick-up control. With a wide frequency range of 40 Hz – 20 kHz, the ADX40 provides natural sound with an exceptional sound response. The ADX40 miniature hanging condenser microphone is supplied with an attached 30' shielded cable, external windscreen, wire hanger for positioning, and phantom power adapter. 9 -52 V phantom required.

Specifications
