Audix

Kyser Acou. Capo Blue

Brand: Audix
Model: L5O
UPC: 687471061268
Please log in to see your price
Dealer locator

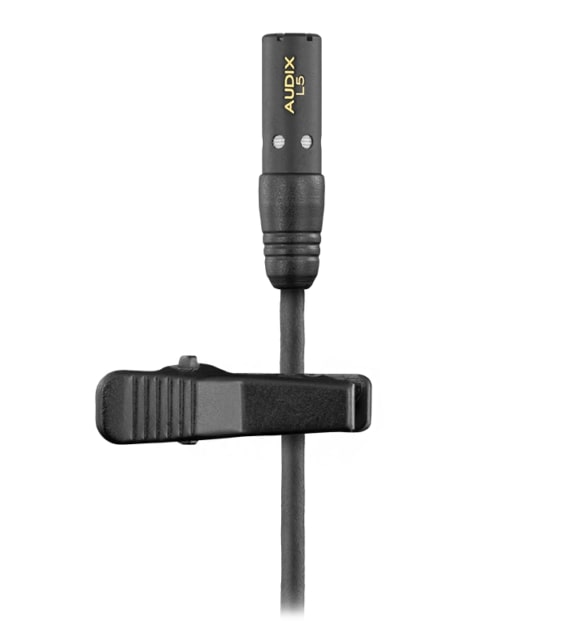

The L5 is a micro-sized (5 mm) cardioid condenser microphone also available with an omnidirectional polar pattern. The L5, which features modular, interchangeable capsules, is intended for use with the Audix wireless systems.

Transducer Type Pre-Polarized Condenser

Frequency Response 40 Hz – 20 kHz

Polar Pattern Cardioid / Omni

Output Impedance 200 ohms

Sensitivity 6 mV (C) / Pa @ 1k 8 mV (O) / Pa @ 1k

Equivalent Noise Level < 31 / 30 dB (A-Weighted)

Signal to Noise Ratio > 63 / 64 dB

Dynamic Range 99 dB / 130 dB

Maximum SPL > 130 / > 134 dB

Power Requirements 9-48 V Phantom Power

Cable / Connector Shielded 3’ (L5) terminating to a miniature 3 pin XLRf connector

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Machined Brass / Black Finish

Weight 13 g / 0.47 oz

Length 23 mm / 0.91 in

more
About This Product

Description:

The L5 is a micro-sized (5 mm) cardioid condenser microphone also available with an omnidirectional polar pattern. The L5, which features modular, interchangeable capsules, is intended for use with the Audix wireless systems as well as hard-wired vocal and instrument applications. Designed to provide the highest quality sound in the smallest possible package, the L5 miniature condenser is ideal for broadcast and live sound applications including speech, interview, presentation, theatrical production, and instruments (guitar, violin). The L5 has clarity, a low profile, ease of operation, and the ability to accurately capture and reproduce vocals from 4?- 8? or acoustic instruments from 1?- 2?. With a smooth and accurate frequency range of 20 Hz – 20 kHz for L5O and 40 Hz – 20 kHz for the L5, these microphones are lightweight and discreet. Manufactured to high standards and tight tolerances, the L5 miniaturized condenser microphone features a modular threaded capsule, a machined brass body with a matte black finish and high quality shielded microphone cable. APS911 phantom power adapter required. Not included.
Specifications
  • Barcodes
  • UPC
  • 687471061268
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.0569
  • Height In Inches
  • 2.6
  • Length in Inches
  • 8.8
  • Pounds
  • 0.3
  • Width Inches
  • 4.3
