Warm Audio

Limited-Edition Large-diaphragm Tube Condenser Microphone, Titanium Finish

Brand: Warm Audio
Model: WA-47T
UPC: 850031640450
Please log in to see your price
Dealer locator
The WA76-D2 accurately reproduces 2-channels of one of the fastest and most loved studio compressors of all time known for its generous headroom, ultra-fast dynamic control, and rich analog tone.

Gold Sputtered, Large Diaphragm, Single Backplate, K47 Style Capsule

Custom TAB-Funkenwerk (AMI) USA Output Transformer

Premium Fairchild Transistors

Wima And Polystyrene Capacitors

Polar Pattern: Cardioid

Max SPL: 137dB, 147dB With 10dB Pad Engaged

Frequency Response: 20Hz-19kHz

Output Impedance: 150 Ohms

Rated Load Impedance: >1kOhms

Pads And Filters: -10dB Pad, 140 Hz Low-Cut Filter

Signal-To-Noise Ratio (+ Weighted): 69 DB, 76 DB-A

EIN / Self-noise (+ weighted): 25dB, 18 dB-A

Total Weight: 3.5lbs, Mic Only: 2lbs

Mic Dimensions: 8” X 2.75” (20.3cm X 7cm)

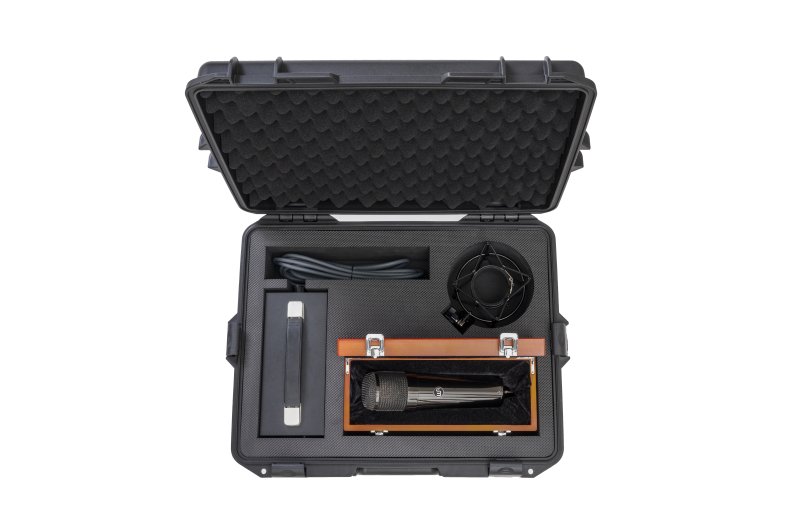

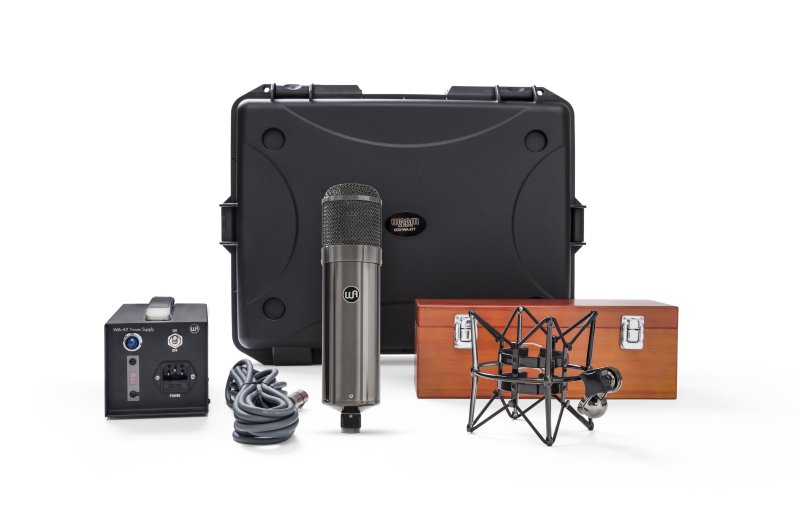

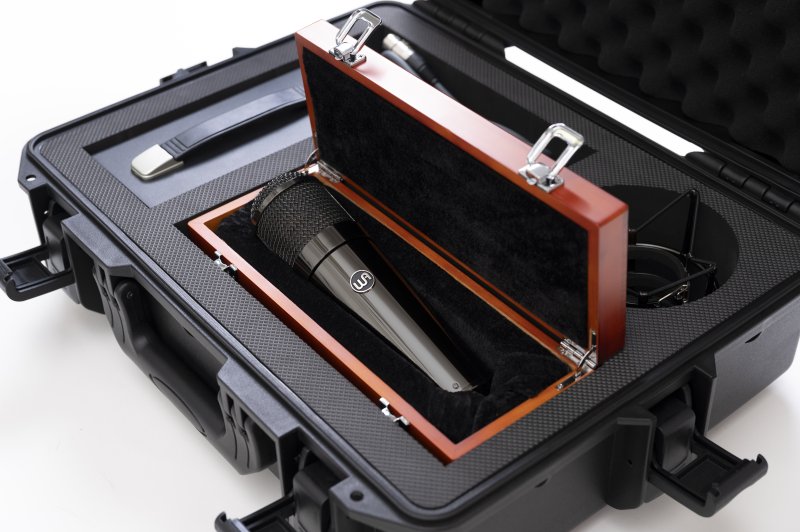

Included Accessories: Premium Wood Box & Hard Mount

more
About This Product

Description:

The WA-47T is an authentic reproduction of the most coveted tube condenser mic for timeless studio sound in limited titanium-style finish. The WA-47 accurately matches the sonic profile of the prized vintage originals delivering the deep bass, rich midrange, and smooth highs that made it a favorite of legendary recording artists. The WA-47 uses superior components, starting with a custom K47-style capsule meticulously recreated to match early vintage originals. A premium 5751 vacuum tube sits in between the capsule and a custom TAB-Funkenwerk (AMI) USA output transformer. These elements come together to bring the legendary sounds of timeless icons to today's music makers. Deep Lows, Rich Mids, Smooth Highs: The WA-47 tube condenser microphone captures deep bass without coloration in the low end. The midrange on the WA-47 is rich and detailed with a wide sonic signature. The highs are present but smooth, rounding out a mic that captures many sources with authority like drums, vocals, pianos, upright bass, acoustic guitar, piano and much more. K47-Style Capsule Recreation: The custom K47-style capsule in the WA-47 is a true reproduction of the large, dual-diaphragm K47-style capsule found in the original U47 mic. This capsule captures authentic analog detail across the 20Hz-20kHz frequency response. With just the right peaks where most vocals sit, the capsule inside the WA-47 will quickly make this a favorite mic for vocals and any source where vintage vibe is a must. True-To-Original Spec Transformer: The WA-47 is built with a custom, true-to-original spec TAB (AMI) transformer that delivers the same performance of transformers found in vintage original 47 tube mics. The sweet sonic character of the WA-47 would not be possible without the amazing, historically-correct transformer supplied by TAB-Funkenwerk.
Specifications
  • Barcodes
  • UPC
  • 850031640450
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 2
  • Each
  • Cubic Feet
  • 1.6917
  • Height In Inches
  • 17.4
  • Length in Inches
  • 7.5
  • Pounds
  • 20.2
  • Width Inches
  • 22.4
