FO S118F-U Bracket White

Name: FO S118F-U Bracket White
SKU: M70W

Brand: Audix

Model: M70W

UPC: 687471292341

Please log in to see your price

Dealer locator

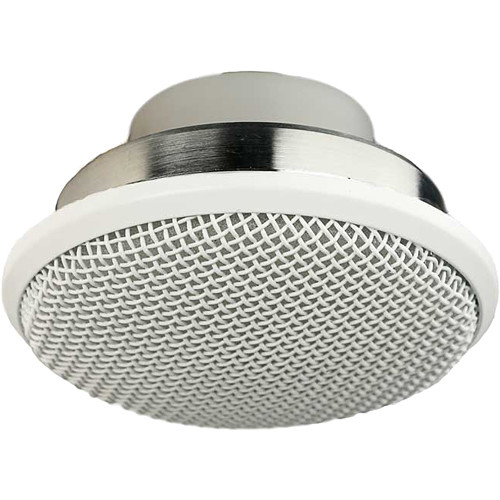

Flush mount ceiling cardioid microphone. 12? cable terminating into phoenix connector. Requires 18 – 52 V phantom power. White.

Transducer Type Condenser

Frequency Response 60 Hz – 10 kHz

Polar Pattern Cardioid

Output Impedance 150 ohms

Sensitivity 38 mV / Pa @ 1k

Equivalent Noise Level 22 dB

Signal to Noise Ratio 72 dB

Maximum SPL =130 dB

Dynamic Range 108 dB

Power Requirements 18 – 52 V phantom

Connector 3-pin Phoenix fe

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Brass, Aluminum and Steel White or Nickel

Recommended Cable Belden 9451 P or 82761

Length 176 mm / 6.9 in

About This Product

Description:

The M70 flush mount condenser microphone is designed for distance miking. Features include a fully integrated preamp, an extremely high sensitivity rating of 38 millivolts, and a small footprint of only 3 inches in diameter. The M70 applications include video conferencing, distance learning, hospital rooms, surveillance, and ambient room miking. The M70 offers a flush mount solution, easy installation, and allows the microphone to completely disappear from view without sacrificing sound quality. The M70 capsule is housed within a patented cradle that enables the microphone to be aimed and focused up to an angle of 45 degrees towards the sound source. In addition, the M70 has complete immunity from RF interference caused by cell phones and GSM devices. The M70 ceiling microphone terminates in a terminal block connector and is easy to install, requiring just a 2-inch hole to be drilled with no additional tools. Designed, assembled, and tested by Audix in the USA.

Specifications
