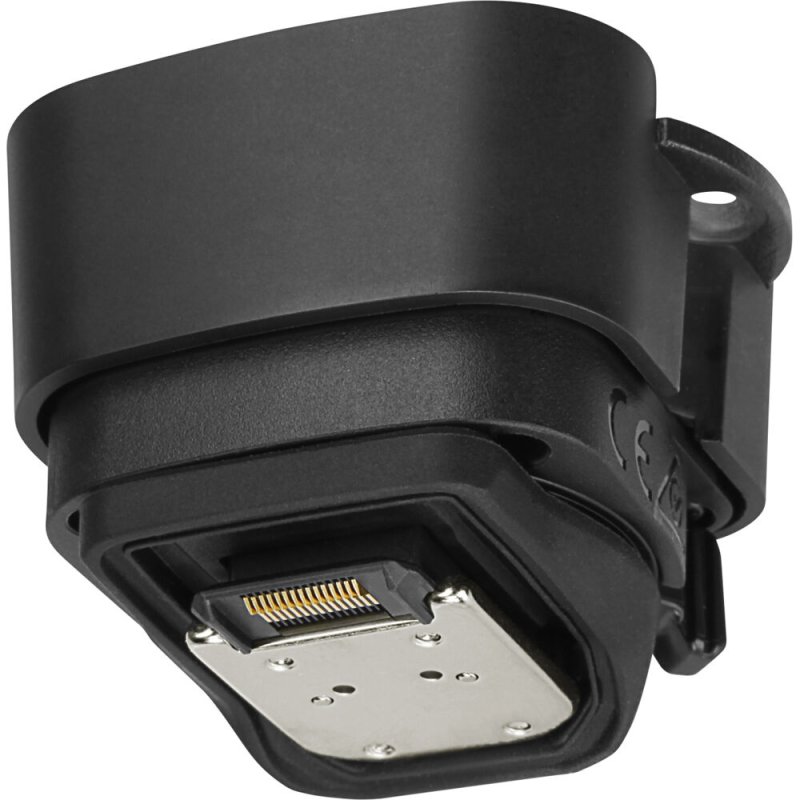

The TASCAM CA-AK1-C is a conversion adapter that allows you to use the CA-XLR2d adapter for XLR microphones with Canon's multi-accessory hot shoe. Owners of the CA-XLR2d-AN mic adapter for cameras with 3.5mm inputs or the CA-XLR2d-F mic adapter for FUJIFILM cameras can use this adapter to take advantage of the multi-accessory shoe's power and cable-free digital audio connections on compatible Canon models.
Supported Canon Models with Multi-Accessory Shoe
EOS R3
- Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
- There is a 4 second mute when switching between camera power and battery power
- Does not support OL (overload) indicators
EOS R5 C
- Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
- There is a 4 second mute when switching between camera power and battery power
- Does not support OL (overload) indicators
EOS R7
- Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
- There is a 4 second mute when switching between camera power and battery power
- Does not support OL (overload) indicators
EOS R10
- Does not supported battery power from camera, can only be powered by battery box
- Does not support OL (overload) indicators
XF605
- Does not support battery power using battery box
- Does not support OL (overload) indicators
