18x20 USB Type-C Audio/MIDI Interface

Name: 18x20 USB Type-C Audio/MIDI Interface
SKU: STUDIO-1824C

Brand: Presonus

Model: STUDIO-1824C

UPC: 673454008078

Please log in to see your price

Dealer locator

Designed for live sound reinforcement, live recording, and studio recording applications, the PreSonus StudioLive 32SC is a Series III S 32-channel digital console, recorder, and audio interface in a rack-mountable frame.

Flexible multichannel audio/MIDI interface ideal for bands, audio engineers, and producers

AD/DA conversion at up to 24-bit / 192 kHz resolution

Eight XLR-1/4" combo inputs—two support mic/instrument/line level, six support mic/line level

Line switch toggles inputs 1-2 between line and instrument level

XMAX Class-A mic preamps with selectable 48 VDC phantom power

Dedicated controls for input gain, main output level/mute/mono, and headphone volume

Two 1/4" main/line outputs and eight DC-coupled 1/4" line outputs

Two independent 1/4" stereo headphone outputs

ADAT optical ports supports eight channels of I/O at 44.1 kHz or 48 kHz, or four channels at 88.2 kHz or 96 kHz

Coaxial S/PDIF ports for two extra digital I/O channels

BNC word clock output ensures proper synchronization of other digital equipment

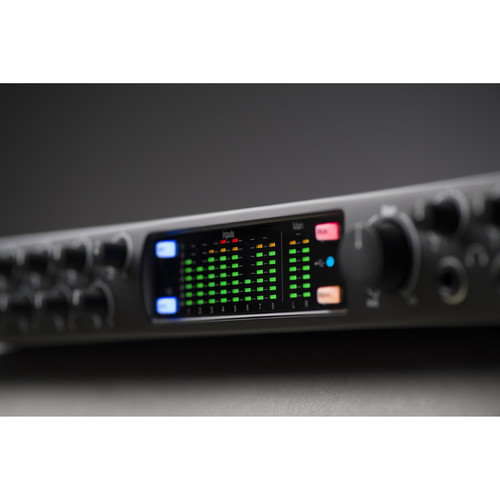

Multi-segment LED meters display levels for inputs and main outputs

Monitor mix control with free UC Surface for macOS, Windows, iPad, and Android

Includes Studio One Artist DAW software with flexible routing, zero-latency monitor mixing, and control room integration

Includes Studio Magic plug-in suite with seven plug-ins ranging from EQ to virtual instruments

About This Product

Description:

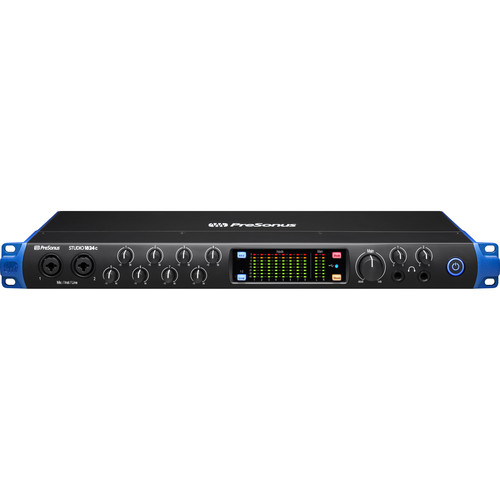

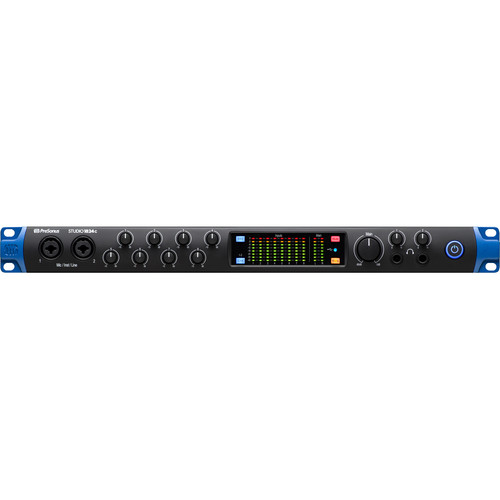

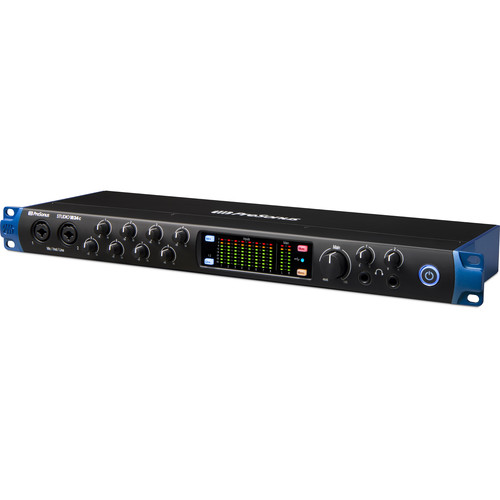

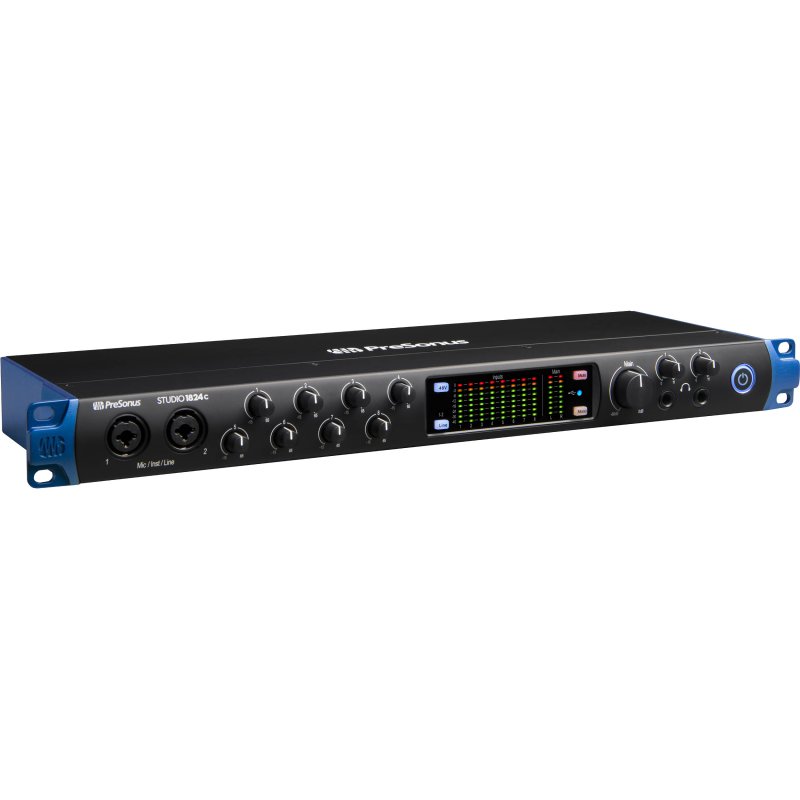

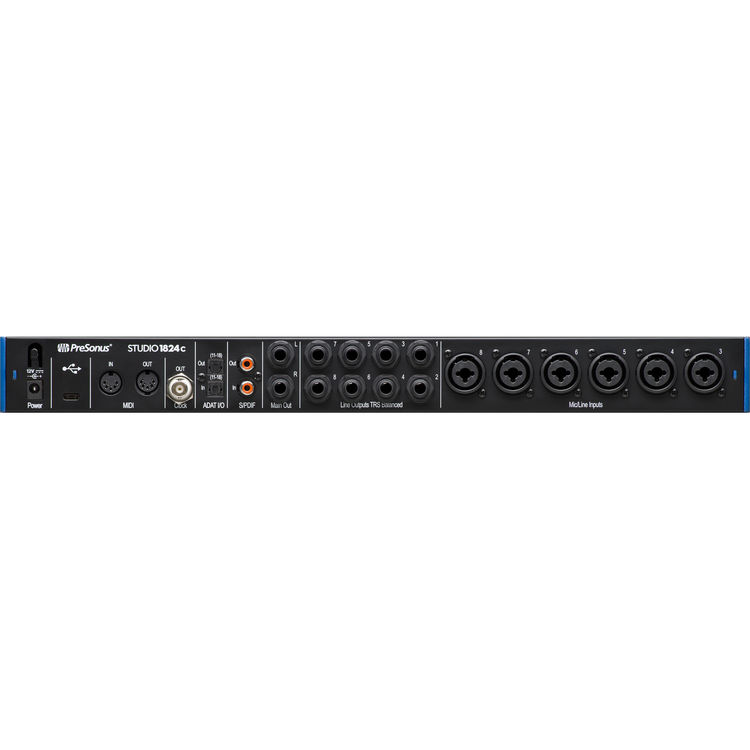

The PreSonus Studio 1824c is an 18x20 USB Type-C audio/MIDI interface offering high-resolution conversion and a powerful software package for bands and audio engineers in home/project studios and mobile setups. Connect mic-, instrument-, or line-level sources via eight XLR-1/4" combo inputs, each utilizing its own gain control and XMAX Class-A mic preamp with phantom power. Integrate digital equipment via 8-channel ADAT optical I/O and stereo S/PDIF I/O. A BNC word clock is provided to ensure proper synchronization of other interfaces or digital mixers. Operate at up to 24-bit / 48 kHz resolution without sacrificing channel count or at 176.4 kHz or 192 kHz sample rates with 8x8 I/O functionality. The Studio 1824c has two 1/4" main outputs with a dedicated level control, mute switch, and mono button for use with a pair of active monitors, plus eight balanced 1/4" TRS line outputs. Two 1/4" TRS stereo headphone outputs with front-panel volume knobs accommodate two sets of headphones. The 5-pin MIDI I/O jacks on the rear panel allow simple hookup of a MIDI controller, synthesizer, or sound module. The Studio 1824c includes USB cables for easy connectivity to your compatible macOS- or Windows-equipped computer. It is powered via an included external power supply. Also supplied is a software bundle featuring the Studio One Artist DAW and the Studio Magic plug-in suite—a slew of creative tools for producers, engineers, songwriters, and more.
