Cover Linear 7 115 FA

Name: Cover Linear 7 115 FA
SKU: ADX10FL

Brand: Audix

Model: ADX10FL

UPC: 687471591024

Please log in to see your price

Dealer locator

The ADX10FL is characterized by a uniformly controlled cardioid polar pattern, helping to isolate the area or section being miked from other instruments or vocals on stage.

Transducer Type Pre-Polarized Condenser

Frequency Response 50 Hz – 18 kHz

Polar Pattern Cardioid

Output Impedance 250 ohms

Sensitivity 4.5 mV / Pa @ 1k

Equivalent Noise Level <29 dB (A-weighted)

Signal to Noise Ratio >65 dB

Maximum SPL =120 dB

Power Requirements 5-52 V phantom

Connector Shielded 3’ terminating to a minature 3 pin XLRf

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Materials / Finish Machined Brass Capsule / Black Finish

Weight 110 g / 4 oz

Length 25 mm / 0.98 i

About This Product

Description:

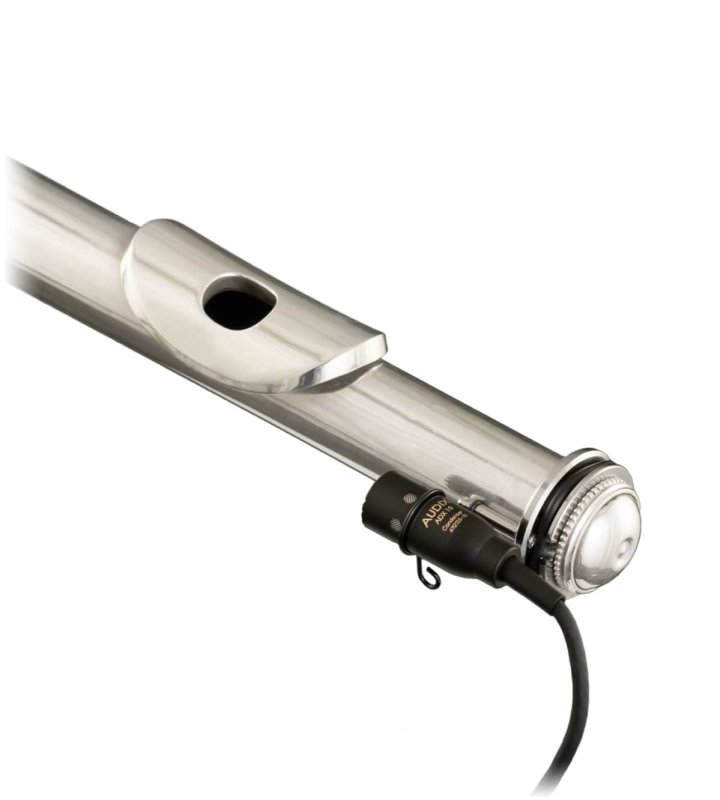

The ADX10FL is characterized by a uniformly controlled cardioid polar pattern, helping to isolate the area or section being miked from other instruments or vocals on stage. With a smooth and accurate frequency range of 50 Hz – 18 kHz, the ADX10FL is lightweight, low profile, and will provide natural sound with an exceptional transient response. The ADX10FL cardioid condenser microphone works with the Audix wireless systems specifically for use with a flute, includes a clip that attaches to the headstock of a flute, an 8’ cable terminating to a miniXLRf connector. Manufactured to high standards and tight tolerances, the ADX10FL miniaturized condenser flute microphone features a modular threaded capsule, machined brass body with a matte black finish, high quality shielded microphone cable and a variety of optional accessories.
