100% RF shielding and immunity
Gold diaphragm condenser capsules with studio-quality sound
Low impedance design allows for extremely long cable runs (if required) without cross-talk or interference
Frequency and pattern tailored for voice clarity and rejection of extraneous noise
Evenly dispersed sound with undetectable phase
High-quality silicone jacketed microphone cable with adjustable length and position
Plenum-rated junction box with RJ45 connector
All visible components of the microphone and cable are the same color: charcoal or white
TAA compliant
Very high output, low self-noise
Easy to install

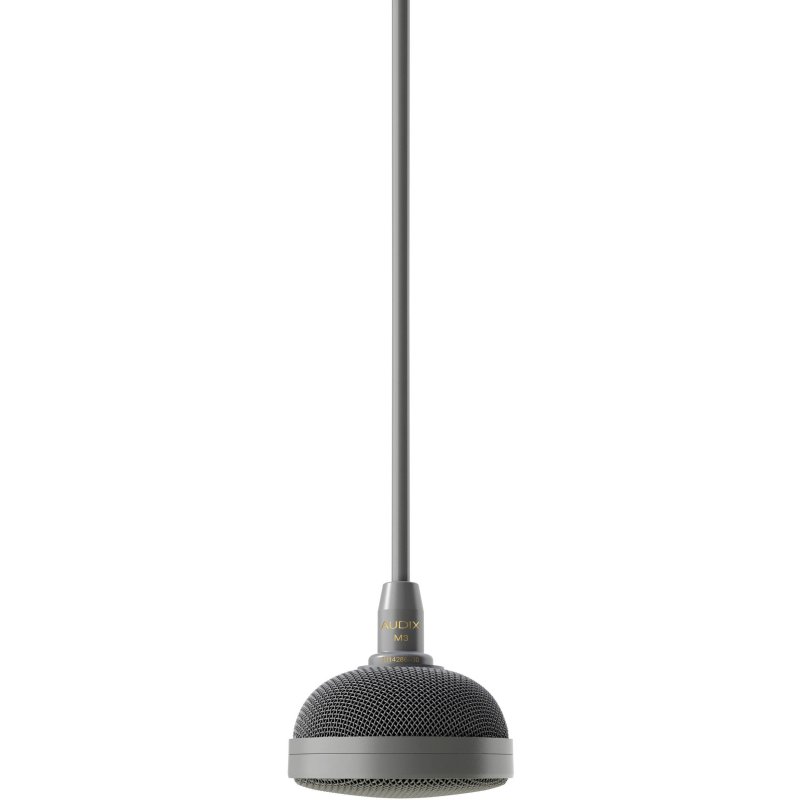

Tri-element hanging ceiling microphone, low profile, balanaced circuit, RF immunity. White.
Transducer Type Pre-Polarized Condenser
Frequency Response 30 Hz – 19 kHz
Optimized Response 70 Hz – 9 kHz
Polar Pattern Hypercardioid
Output Impedance 150 Ohms balanced
Sensitivity 34 mV / Pa @ 1k
Equivalent Noise Level 22 dB (A weighted)
Off Axis Rejection 1 capsule >23 dB at 180º relative to 0º 2 capsules >18 dB at 120º 3 capsules >9 dB at 60º
Signal to Noise Ratio 72 dB
Maximum SPL =128 dB
Dynamic Range 106 dB
Power Requirements 18 – 52 Volts phantom
Connector Terminal block or XLR
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish 95 grams (mic only) / 3.32 ounces
Weight 50mm (2 inches)
Length 30mm (1.2 inches)
