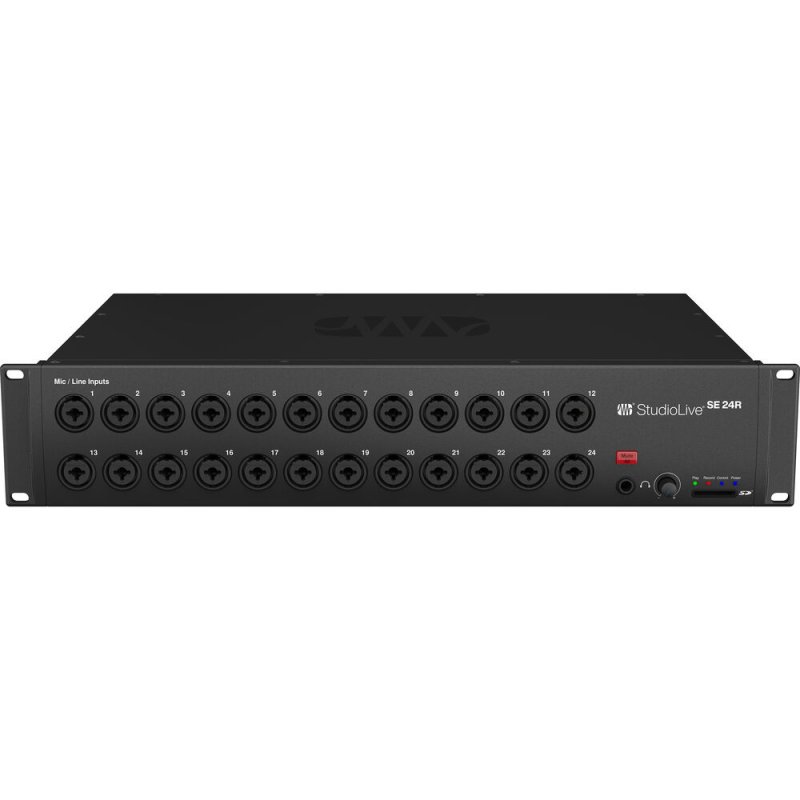

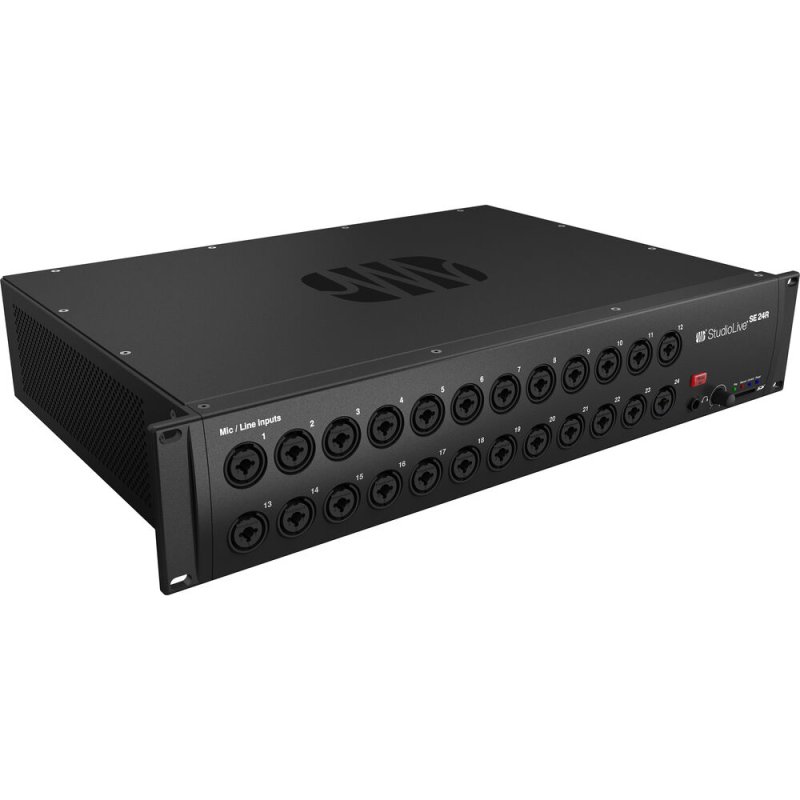

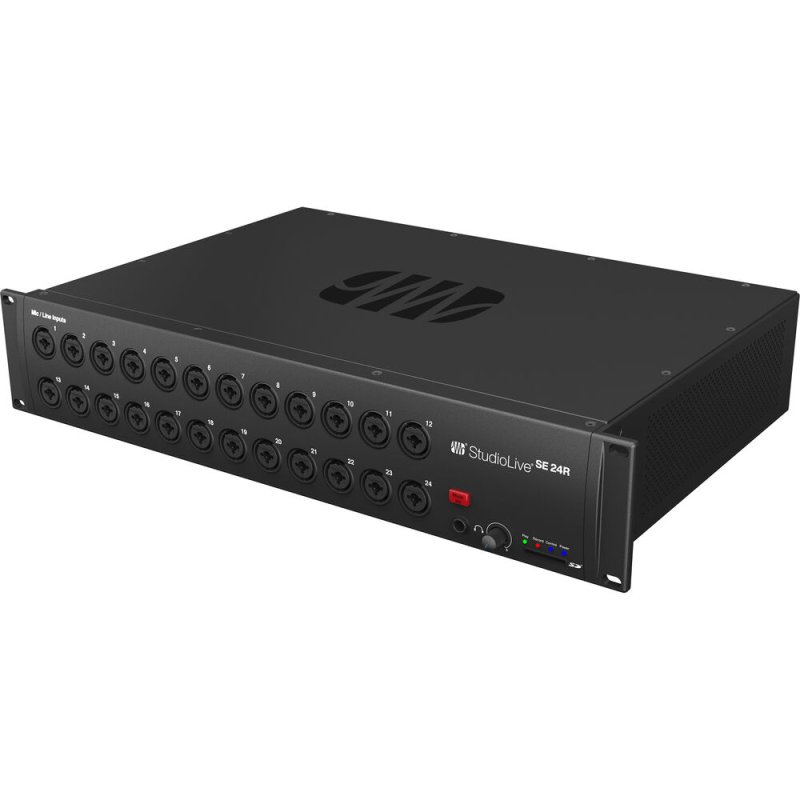

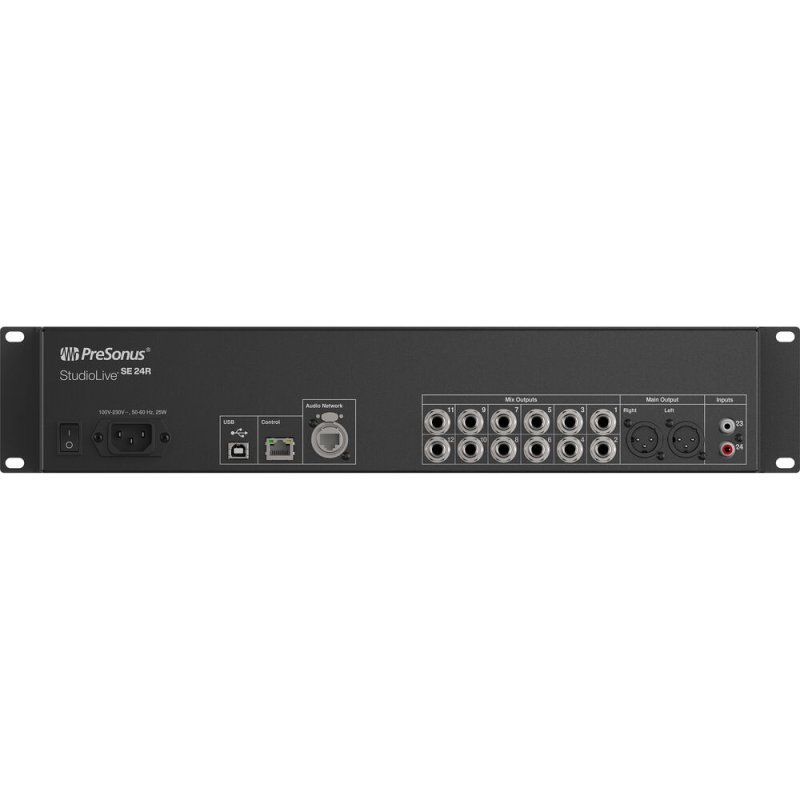

The 40-channel StudioLive SE 24R delivers the power and flexibility of a large-format digital console in a rugged rackmount mixer. With 24 recallable XMAX-R mic preamps and advanced DSP powered by the PreSonus FLEX DSP Engine, every input and bus features vintage-style EQ and compression for polished, musical results.
Sixteen FlexMixes can be configured as auxes, subgroups, or matrix mixes and include access to all 24 inputs and buses, making the SE 24R ideal for complex monitor, broadcast, and install workflows. Four dedicated FX mixes with stereo returns and 24 DCA groups provide precise control over large channel counts.
Recording is fully integrated thanks to a continuously bidirectional 64x64 USB 2.0 audio interface, onboard stereo SD card recording, and included Capture multitrack software with Virtual Soundcheck. Each channel can switch between analog, USB, SD, and AVB sources for seamless integration with analog and digital systems.
Milan-certified AVB networking enables plug-and-play use as a stagebox or monitor mixer for StudioLive Series III consoles, while optional AVB-D16 support adds Dante connectivity when needed. Universal Control remote mixing software with Offline Editor ensures complete control from anywhere.
Features
- 40-channel digital rack mixer with 26 mix buses
- 24 fully recallable XMAX-R analog mic preamps
- 16 FlexMixes configurable as aux, subgroup, or matrix mixes
- 4 dedicated subgroups
- 4 dedicated FX mixes with stereo returns
- 24 DCA groups for advanced mix control
- 9 State-Space modeled EQ options on every input and bus
- 10 vintage-inspired compressor models on every input and bus
- Continuously bidirectional 64x64 USB 2.0 audio interface
- Onboard stereo SD card recording
- Integrated Capture multitrack recording with Virtual Soundcheck
- Milan-certified AVB networking ecosystem
- Standalone, monitor mixer, and stagebox operating modes
- Channel source switching between analog, USB, SD, and AVB
- Universal Control remote mixing with Offline Editor
- QMix-UC personal monitor control for iOS and Android
- Optional Dante networking via AVB-D16
- Includes a perpetual license for Fender Studio Pro
