Rackmount 58x64 Dante / HDX / Thunderbolt 3 Audio Interface

Rackmount 58x64 Dante / HDX / Thunderbolt 3 Audio Interface

Name: Rackmount 58x64 Dante / HDX / Thunderbolt 3 Audio Interface
SKU: RED8-LINE

Brand: Focusrite Pro

Model: RED8-LINE

UPC: 815301001324

Please log in to see your price

Dealer locator

Built on Focusrite's decades of interface design experience and impeccable attention to audio detail, Red 8Line is the best sounding, most versatile and hardest working audio interface in any professional system.

Extremely high-quality audio conversion - High-performance 24-bit/192kHz A-D and D-A conversion with 119dB dynamic range A-D and 121dB dynamic range D-A (A-Weighted).

Seamless multi-platform workflow - Switch between different DAWs in seconds, using the front panel or control software.

Two Red Evolution remote-controllable mic preamps - Provide up to 63dB of ultra-clean gain, with phantom power, high-pass filter, phase reverse and Air mode.

Latest implementation of Thunderbolt 3 - Ultra-low-latency drivers for Mac and PC provide the flexibility to use DAW plug-ins in real-time. Dual Thunderbolt ports enable daisy-chaining of devices.

Pro Tools | HD connectivity as standard - Twin mini-DigiLink ports provide connectivity directly to Pro Tools | HD cards, with no need for device expansion.

Dante connectivity as standard - Dual Dante ports enable connection to the industry standard Audio-over-IP protocol, for easy expansion and interoperability with other digital devices.

Dedicated L/R monitor outputs and comprehensive control - Monitor control supports mono, stereo and multi-channel monitoring environments up to 7.1.2.

Extensive analogue I/O - Eight line inputs and outputs on DB25; independent L/R monitor outputs; independent Red Evolution mic preamps, plus two stereo headphones outputs.

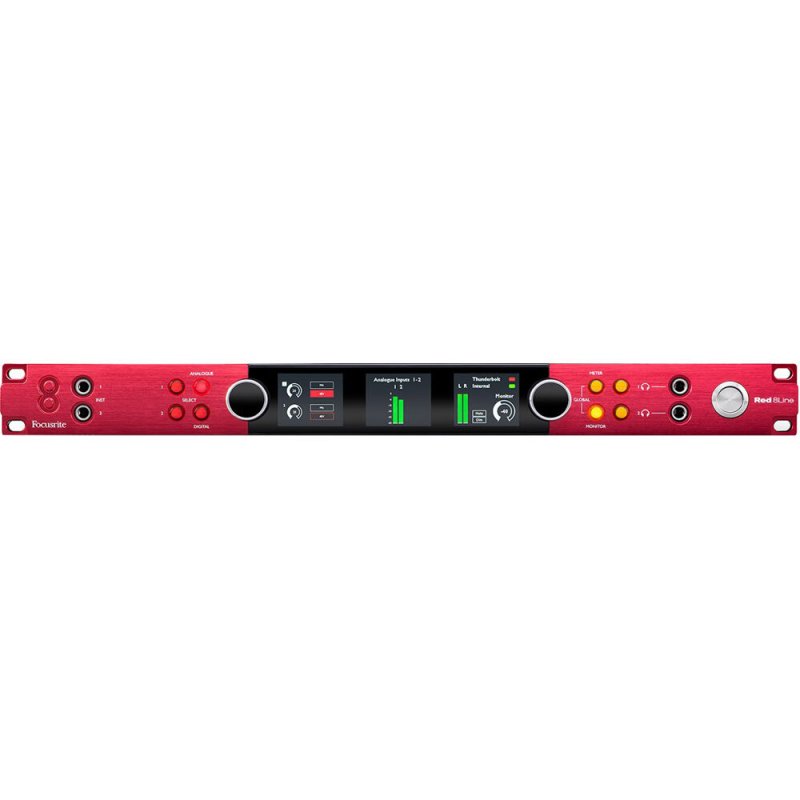

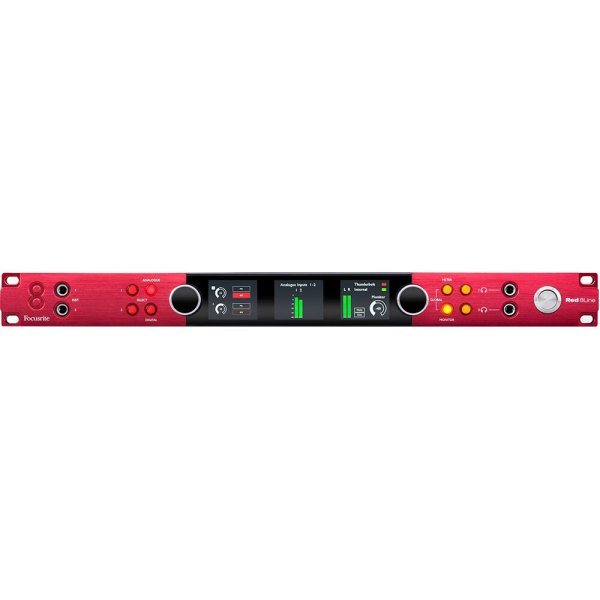

Precision metering and display - Three LCDs provide highly accurate level metering for any input or output block, as well as for main monitor and headphone outputs.

Complete software/hardware control environment - RedNet Control allows quick setup of complex monitoring and routing configurations, and control of the preamps remotely.

Dual headphone outputs - High-fidelity headphone outputs are powerful enough to deliver loud audio on high-impedance headphones.

About This Product

Description:

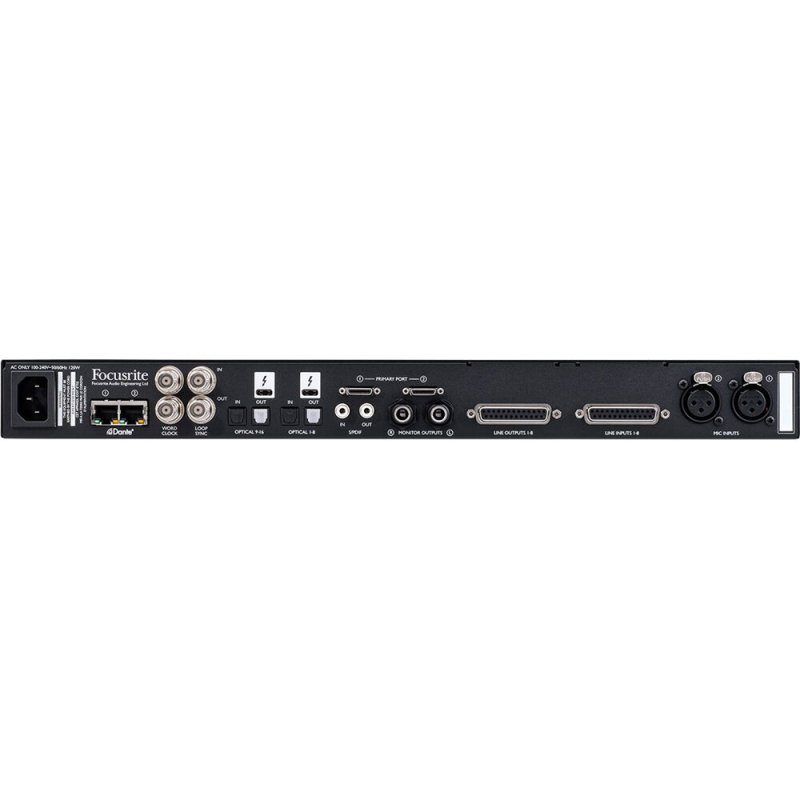

Red 8Line has a total of 58 inputs and 64 outputs, including two Red Evolution mic pres, independent L/R monitor outs, eight balanced line inputs and outputs on DB25 connectors; 32 channels of Dante I/O; 16-channel ADAT input and output (at 48kHz), and stereo S/PDIF input and output. As with other Red interfaces, it features professional-grade 24-bit/192kHz A-D and D-A conversion for no-compromise, mastering-quality recording and audio playback. With 119dB dynamic range A-D and 121dB dynamic range D-A (A-Weighted), the converters have been expertly selected and calibrated by Focusrite to provide the best balance of sound quality, dynamic range and conversion latency. The two digitally-controlled Red Evolution mic preamps are the product of decades of Focusrite's impeccable attention to detail in designing audio hardware. Each preamp provides up to 63dB of ultra-clean gain, with individual phantom power, high-pass filter and phase reverse, and an option to stereo-link the two channels. The switchable Air mode mimics the sonic profile of the famous Focusrite ISA 110 input module, and breathes life into any signal it touches. The Focusrite Red Range is the best choice for professionals who work in Pro Tools | HD and other DAWs — on both Mac and PC. With both mini-DigiLink and Thunderbolt 3 connections, it's possible to instantly switch between Pro Tools | HD and other DAWs without the need to reconfigure your audio settings. Simply change the host mode either in RedNet Control software, or using the front panel, to change DAWs in seconds. This ability to quickly switch between production environments means you'll never lose that moment of inspiration, or leave your clients waiting.

Specifications
