Ashly

Rackmount 4-Channel Power Amplifier - 80 Watts per Channel at 8 Ohms

Brand: Ashly
Model: SRA4150
UPC: 694970719415
Please log in to see your price
Dealer locator
SRA Series Amplifiers are advanced, efficient single-space amplifiers perfect for installations with modest power requirements. The SRA Series makes it a snap to get exactly what you need and nothing you don’t.

Frequency Response

(8 Ohms) 20Hz–20kHz, ±1.0dB

Distortion (SMPTE, typical) < 0.5% - 8 Ohm load, 10dB below

rated power

Distortion (THD-N, typical) < 0.5% - 8 Ohm load, 10dB below

rated power, 20Hz–20kHz

Damping Factor

(8 Ohm load, < 1 kHz) > 200 into 8 Ohms

Input Impedance 20k Ohms, Balanced

Input Sensitivity 1dBu (75W), 4dBu (150W)

Gain 26dBu, 36dBu, Selectable

Maximum Input Level +21dBu

HPF 80Hz 2nd Order, defeatable

Cooling Convection

Output Circuitry Class D

Amplifier/Load Protection

Output Overcurent, DC Output,

Main Supply Rail Overvoltage,

Chassis Temperature, Inrush

Limiting, Mains Fuse

Environmental 40-120° F, (4-49° C) noncondensing

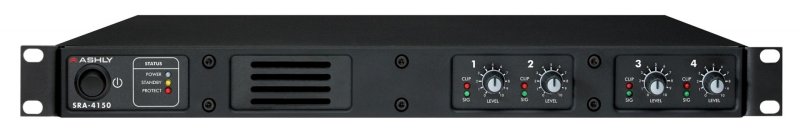

Front Panel

Controls AC Power Switch, Level

Indicators (LED color)

Power (Blue), Standby (Yellow),

Protect (Red), Signal (Green),

Clip (Red)

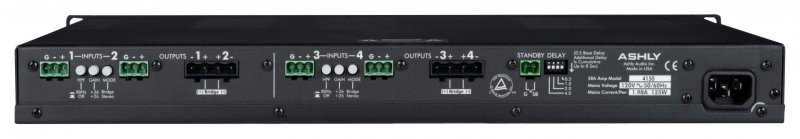

Rear Panel

Controls

80Hz HPF, Gain/Sensitivity: +26dB,

+36dB, Bridge/Stereo Switch,

Remote Standby, Delay

Connectors (each channel) Input: 3-Pin Euroblock

Output: Euroblock

Cordset 3-Prong IEC

more
About This Product

Description:

SRA Series Amplifiers are advanced, efficient single-space amplifiers perfect for installations with modest power requirements. The SRA Series makes it a snap to get exactly what you need and nothing you don’t. Housed in a compact single rack space chassis and weighing only 10 lbs, SRA Series Amplifiers are designed to drive 4 or 8 Ohm loads. Choose from 4 models available in 2 and 4-channel configurations with power ratings of 75W and 150W per channel. The 150W models are capable of driving 25V constant voltage lines directly. Switch mode power supplies and Class-D amplifier circuitry provide an extremely power efficient solution. They are convection cooled, so little maintenance is needed after the installation, and no annoying fan noise. Of course you get the reliability, superior sonic quality and rugged construction you’ve come to expect from Ashly.
Specifications
  • Barcodes
  • UPC
  • 694970719415
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 1
  • Each
  • Cubic Feet
  • 1.25
  • Height In Inches
  • 5
  • Length in Inches
  • 24
  • Pounds
  • 17.2
  • Width Inches
  • 18
