Focusrite Pro

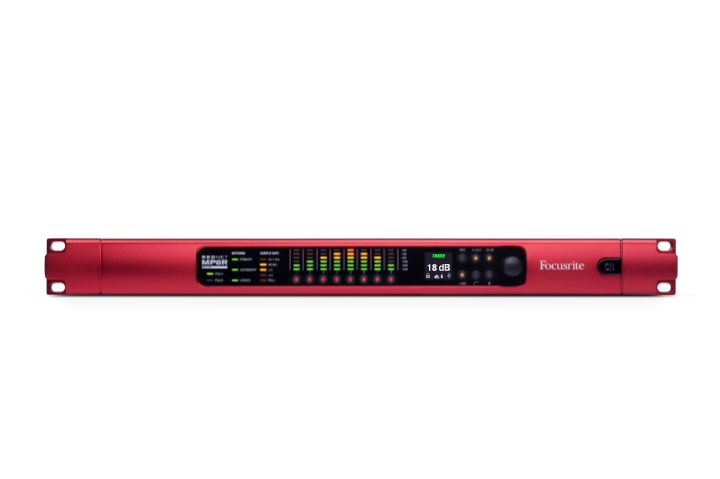

Pro RedNet 8-Channel Remote-Controlled Mic Pre and A/D for Dante

Model: REDNET-MP8R
UPC: 815301013099
Please log in to see your price
Dealer locator
RedNet MP8R is an 8-channel remote-controlled microphone preamplifier and A/D for the Dante audio-over-IP network, designed specifically for the live sound/recording and broadcast environments, and other workflows where reliability is paramount, with Ethe

Built-in redundancy with dual power and network connections

Rugged roadworthy all-metal construction, high build quality, locking power and etherCON Ethernet connectors

Eight Focusrite remote-controlled preamps with enhanced input level capability, and dual input impedance to deliver maximum performance when one mic feeds single or multiple pres

Two outputs from each preamp: one direct and the other automatically gain-compensated to deliver a constant level

Remote-controllable Gain, Phantom Power and High-Pass Filter from Yamaha CL and QL Series Consoles.

20dB pad, HPF and polarity inversion per input

Operate locally, or remotely via RedNet Control software, Pro Tools, MIDI or OCA (Open Control Architecture – available 2015 via firmware update)

Precision low-latency conversion at up to 24-bit/192kHz, with best-in-class dynamic range and overall audio quality

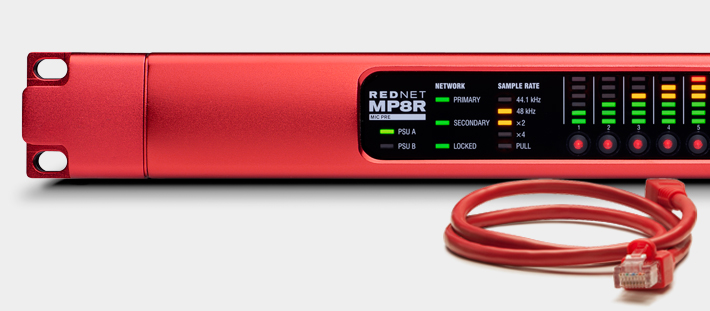

6-segment LED level meters; OLED display indicates input gain and system information

Compact 1U form factor

Full interoperability with other Dante products and networks

Comprehensive remote control software with powerful graphic user interface

more
About This Product

Description:

RedNet MP8R is an 8-channel remote-controlled microphone preamplifier and A/D for the Dante audio-over-IP network, designed specifically for the live sound/recording and broadcast environments, and other workflows where reliability is paramount, with Ethernet and power supply redundancy. The MP8R features eight high-quality remote-controlled mic preamps developed specifically for the RedNet range, and backed by thirty years of mic preamplifier development. Each preamp has a dual input impedance of 10k or 2.4k ohms, allowing flexibility when running multiple mic pres in parallel. The device includes eight auxiliary outputs with automatic DSP-based gain tracking for digital “splits”. Following the mic pres are eight channels of Focusrite’s legendary high-precision A/D converters, operating at up to 192kHz/24-bit with minimum latency and offering class-leading dynamic range and overall performance. The MP8R features a rugged, roadworthy exterior and high internal build quality. In addition, the unit offers a compact 1U rack-mount form factor.
Specifications
  • Barcodes
  • UPC
  • 815301013099
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 1
  • Each
  • Cubic Feet
  • 1.4754
  • Height In Inches
  • 24.2
  • Length in Inches
  • 21.5
  • Pounds
  • 18.15
  • Width Inches
  • 4.9
