Audix

Record Box adv mounting set

Brand: Audix
Model: ADX51
UPC: 687471061152
Please log in to see your price
Dealer locator

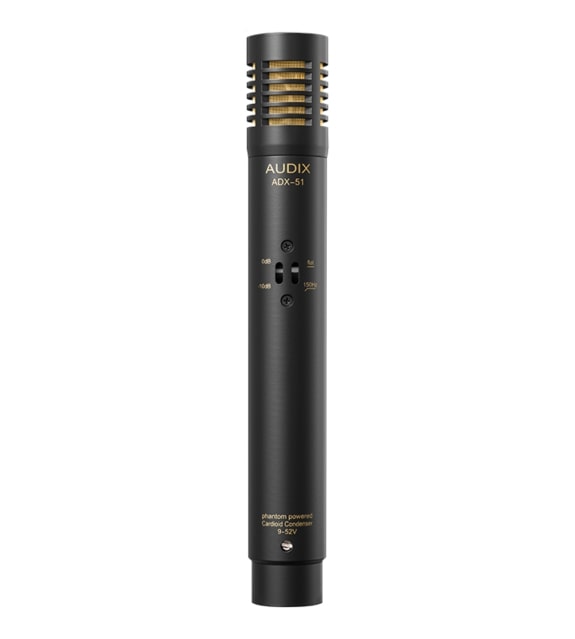

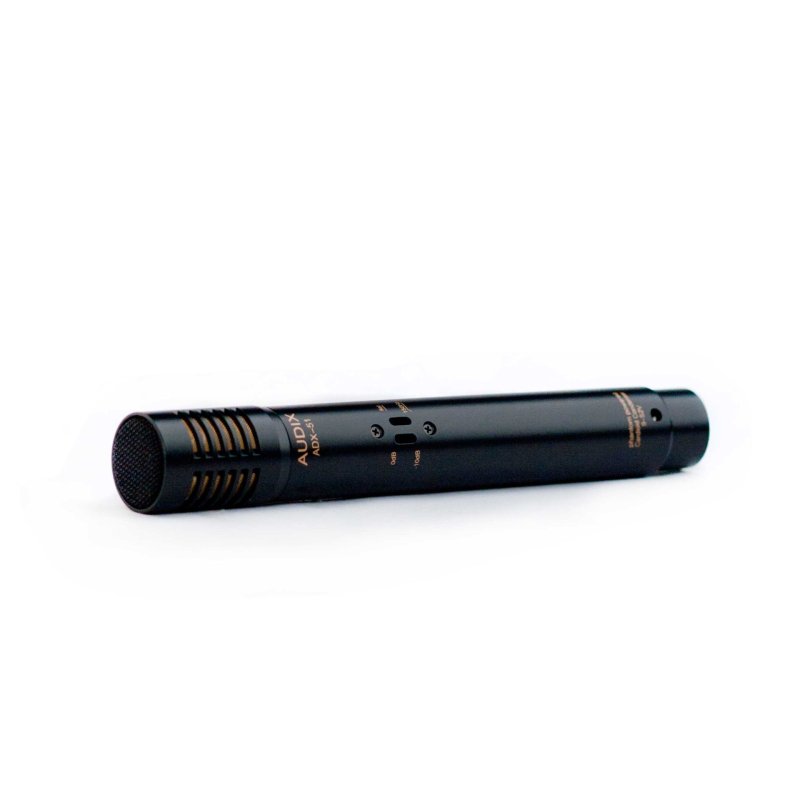

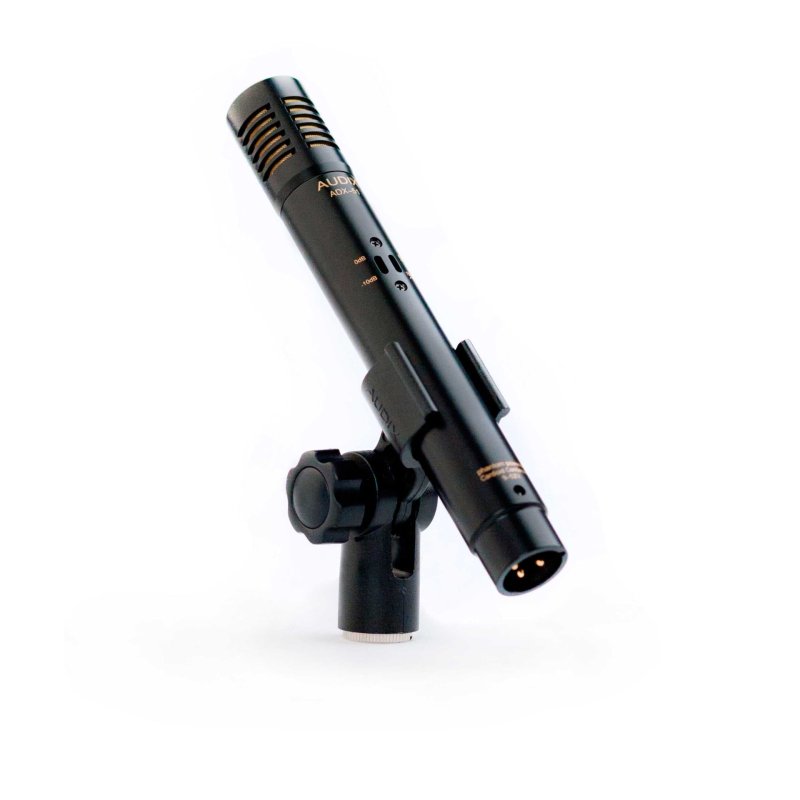

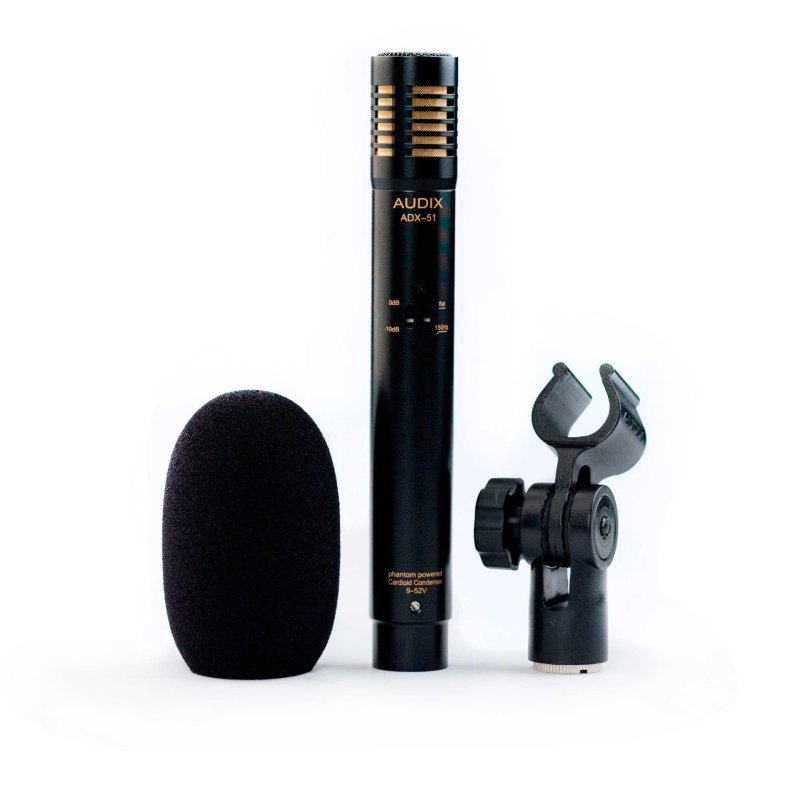

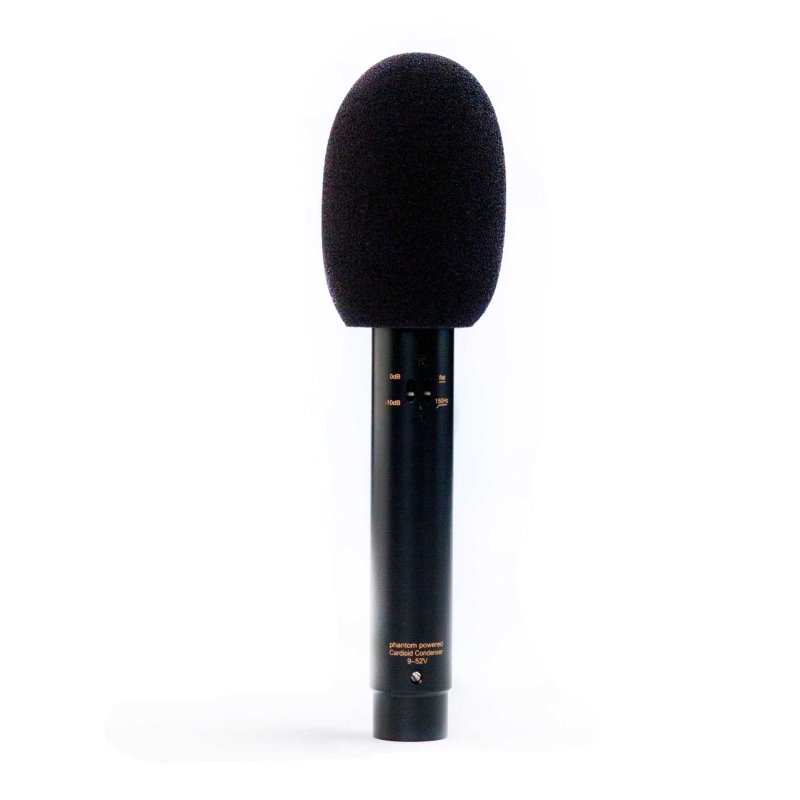

The ADX51 is a professional pre-polarized condenser microphone used for stage, studio, and broadcast applications.

Transducer Type Pre-Polarized Condenser

Frequency Response 40 Hz – 18 kHz

Polar Pattern Cardioid

Output Impedance 100 ohms

Sensitivity 17 mV / Pa @ 1k

Capsule Technology Black Electret GV Diaphragm

Off-Axis Rejection >15 dB

Maximum SPL =132 dB

Power Requirements 9-52 V Phantom

Connector 3-pin XLRm

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Brass / Black Finish

Weight 184 g / 6.5 oz

Length 160 mm / 6.3 in

more
About This Product

Description:

The ADX51 is a professional pre-polarized condenser microphone used for stage, studio, and broadcast applications. The ADX51 is known for its clear, accurate response and flexibility to handle close or distance miking for a wide variety of acoustic instruments. Characterized with a uniformly controlled cardioid polar pattern, the ADX51 condenser microphone is designed to capture the acoustics of the instrument being miked while at the same time isolating it from the rest of the instruments on stage. With a wide frequency range of 40 Hz – 18 kHz, the ADX51 features a 14 mm gold vapor diaphragm and a -10 dB pad and bass roll-off filter at 150 Hz. The ADX51 cardioid studio condenser microphone is very easy to position, durable, and manufactured to high standards and tight tolerances. The ADX51 has a precision machined brass body, durable black E-coat finish, steel mesh grill, and gold plated XLR connector.
Specifications
  • Barcodes
  • UPC
  • 687471061152
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.0591
  • Height In Inches
  • 2.7
  • Length in Inches
  • 8.8
  • Pounds
  • 0.7
  • Width Inches
  • 4.3
