Audix

(EA) Speaker Pole

Brand: Audix
Model: SCX25APS
UPC: 687471241141
Please log in to see your price
Dealer locator
Reproduction of piano sound is extremely challenging, particularly during live performances when other instruments are present.

Transducer Type Condenser

Frequency Response 20 Hz – 20 kHz

Polar Pattern Cardioid

Output Impedance 200 ohms

Sensitivity 28 mV / Pa @ 1k

Equivalent Noise Level 14 dB (A-weighted)

Signal to Noise Ratio 80 dB

Maximum SPL =135 dB

Dynamic Range 121 dB

Power Requirements 48-52 V phantom

Connector 3-pin XLRm

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Machined Brass / Black Finish

Weight 244 g / 8.6 oz

Length 148 mm / 5.8 in

more
About This Product

Description:

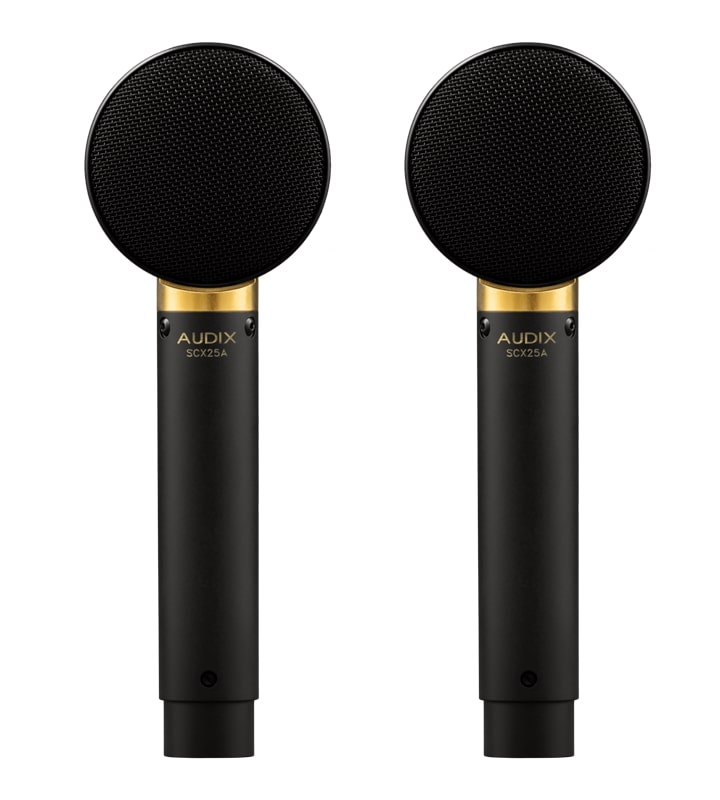

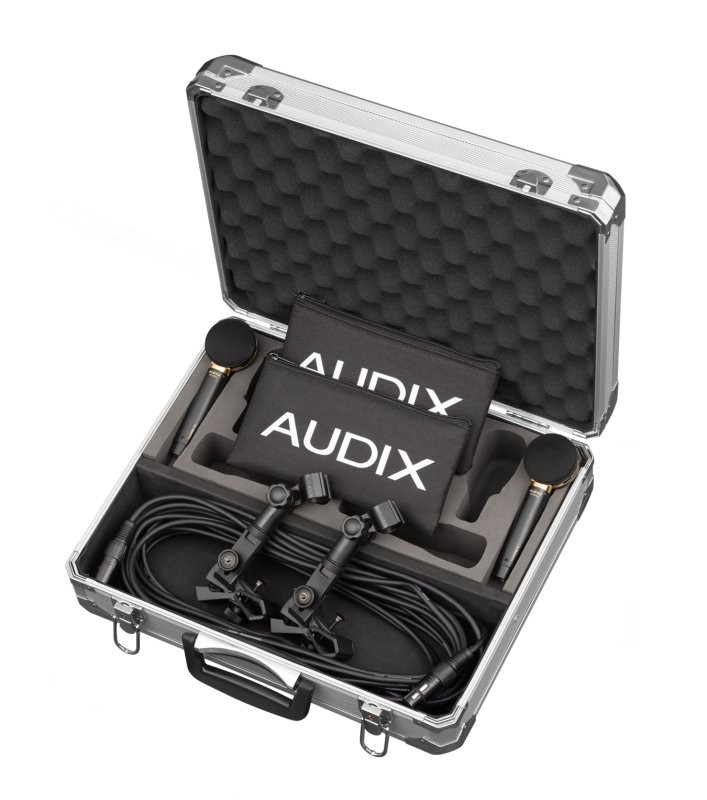

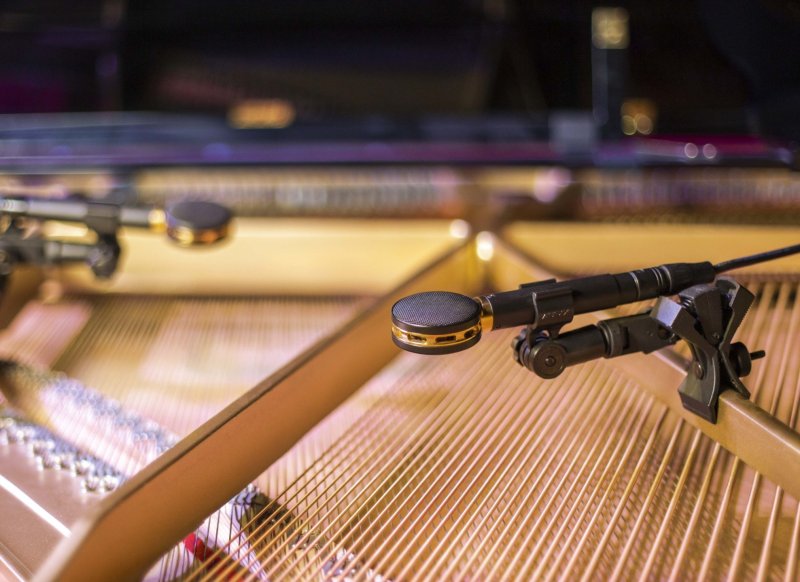

Reproduction of piano sound is extremely challenging, particularly during live performances when other instruments are present. Ambient sounds near the piano often bleed into the piano microphones. To circumvent sound leakage, the piano is often played in the short-stick or closed-lid positions. The SCX25A large-diaphragm studio condenser microphone produces a highly transparent and remarkably accurate sound. This attribute combined with the SCX25A’s low profile and phase-coherent reproduction makes the SCX25A the optimum piano microphone for live sound or broadcast environments. To further enhance the ease of placement, two DFLEX mounting clips accompany the SCX25A and can be easily attached directly to the piano rail, enabling the SCX25A to be securely placed anywhere on the soundboard. The SCX25A studio condenser microphone is undeniably the most compact, large-diaphragm microphone on the market. It boasts an innovative design and patented capsule system. This pack includes two high-quality, quad conductor microphone cables with braided shielding which helps reduce noise induction from external sources.
Specifications
  • Barcodes
  • UPC
  • 687471241141
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 2.2962
  • Height In Inches
  • 9.7
  • Length in Inches
  • 22.6
  • Pounds
  • 8.35
  • Width Inches
  • 18.1
