Ashly

2-way Active Line Array Column

Brand: Ashly
Model: AW5.2T
UPC: 694970003316
Please log in to see your price
Dealer locator

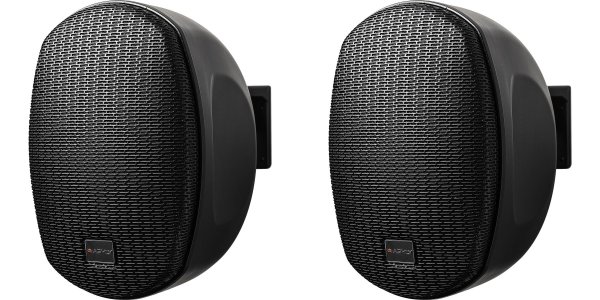

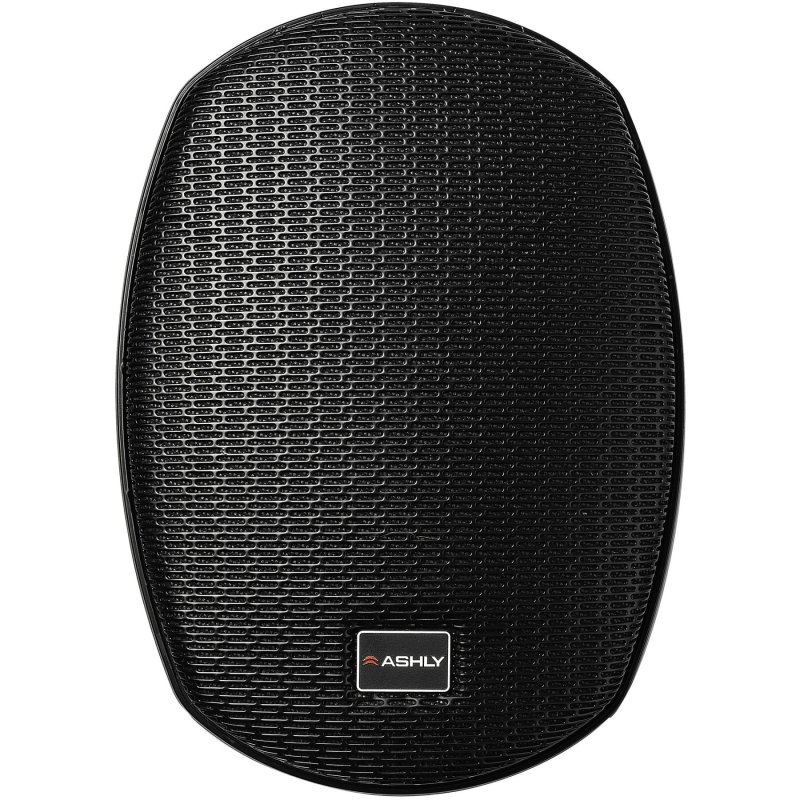

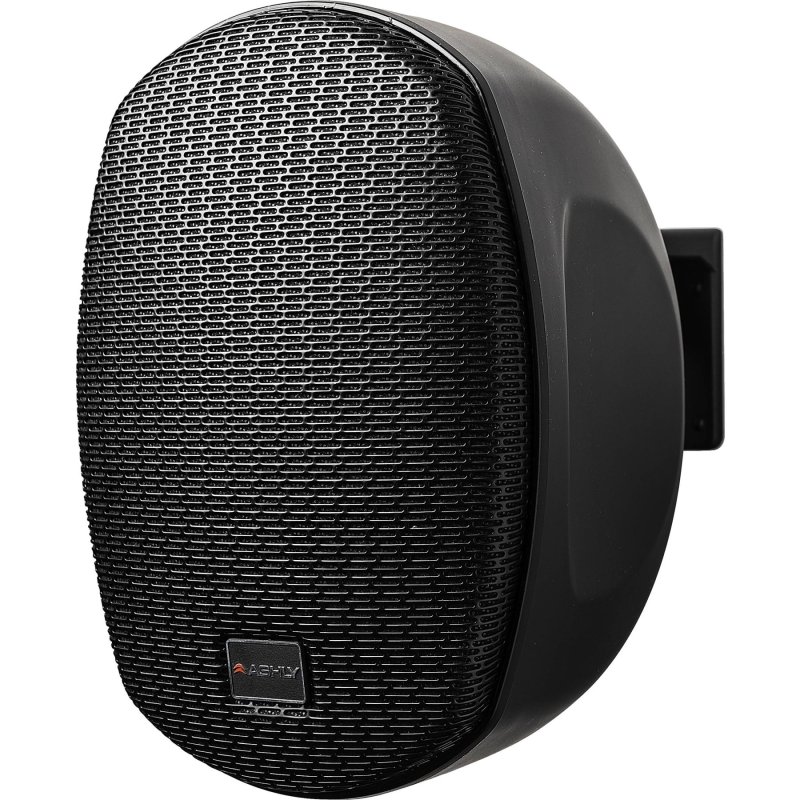

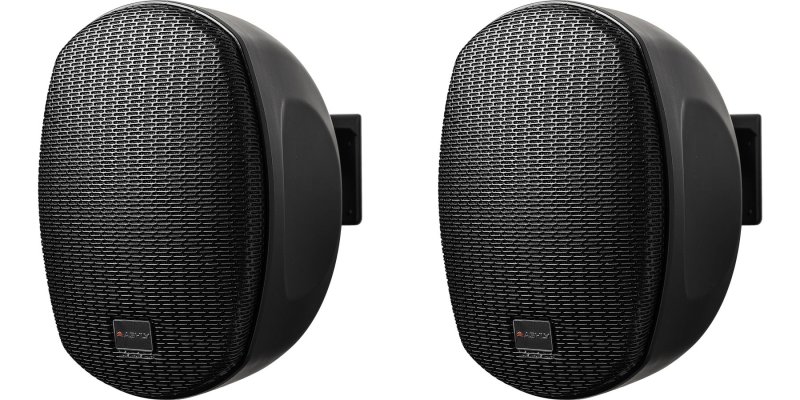

The Ashly AW5.2T 5" Passive Full Range All Weather Speaker are perfect indoor and outdoors.

High-strength yet light ABS/ polypropylene enclosure

Enhanced sound with Protêa and AquaControl™ presets via selected Ashly power amplifiers and DSP processors

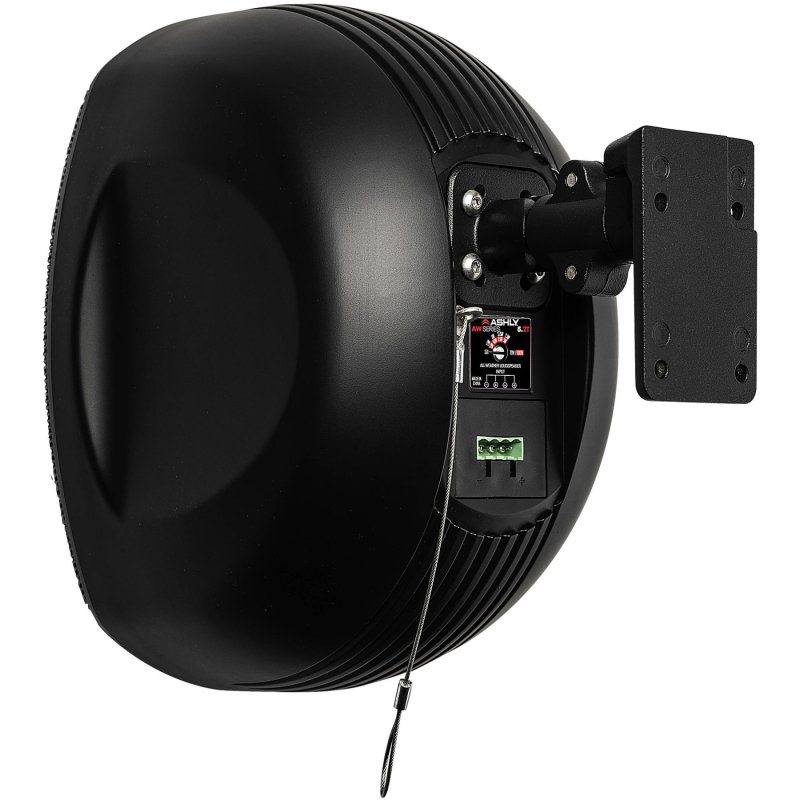

Tilt-swivel mount provided

Speaker Type: Passive, 2-Way

Frequency Response: 80Hz~19KHz (-10dB)

Power Handling (RMS): 80W @ 8O, 70V (7.5W/5W/3.75W/2.5W), 100V (15W/10W/7.5W/5W)

Impedance: 8O

Sensitivity (2.83 V/1 m): 87 dB*

Crossover Type: Passive

Crossover Slope: HF - 18 dB/oct, LF - 12 dB/oct

Crossover Point: 2,200Hz

Beam Width: 165° H x 160° V

Directivity Index: 5.6dB

Cabinet Material: Polypropylene

Grille Material: Steel (painted)

Environmental: IP54

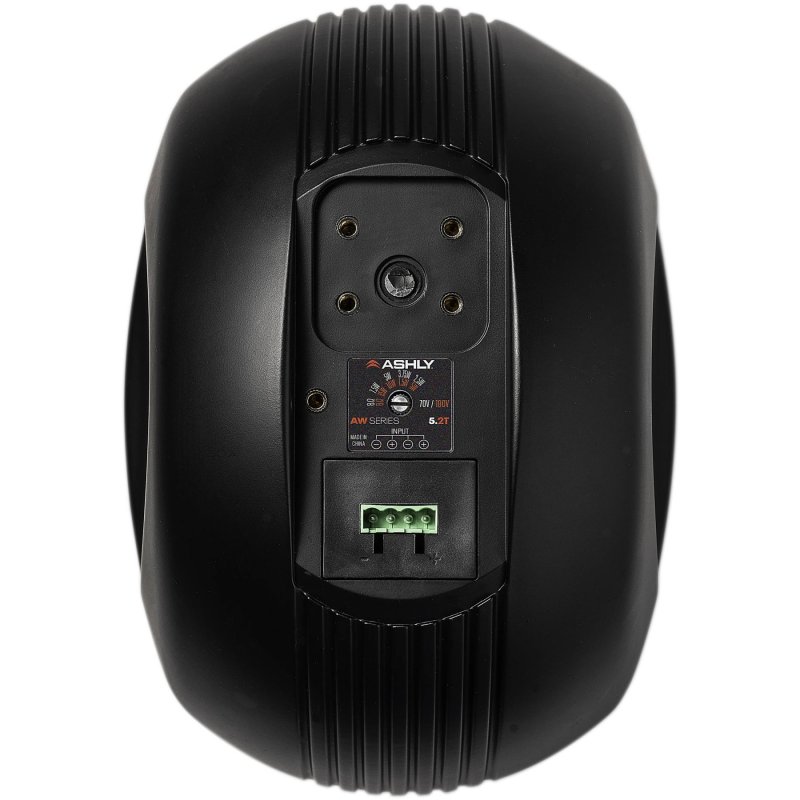

Input Connection: Removable 4-pole, Euroblock

HF: 0.75" silk dome tweete

LF: 5.25", 1" voice coil, 8 oz magnet

Dimensions (WxHxD): 7.32" x 10.23" x 7.04"

Net weight: 5.29 lbs

Supplied Accessories: Wall-mount Bracket, Safety cable

more
About This Product

Description:

The Ashly AW5.2T 5" Passive Full Range All Weather Speaker are perfect indoor and outdoors. Their range of four sizes from micro to 8-inch, and sleek ovoid shape let them fit unobtrusively into any hospitality decor. The two larger AW models are designed for either low-impedance or constant-voltage applications. Impressive on their own, their sound can be further enhanced with Ashly power amplifiers and processors that incorporate Protea or AquaControl™ software. AW Series are made for both indoor and outdoor wall-mount applications. Dust and water resistant, they're ideal for BGM use in bar/restaurants (including patios), paging and BGM for retail stores, distributed audio in HoW, schools, sports/health clubs and public spaces. Highly efficient and durable, they complete the total Ashly solution when combined with Ashly's DSP and DSP-enabled amplifiers for the widest, most consistent coverage. The AW Series is available in four model sizes: AW2.1P 2.5" 8 O IP52 rated. AW 3.2P 3" 2-way 8 O, IP-52 rated. AW 5.2T 5" 2-way w/transformer, IP54 rated. AW 8.2T 8" 2-way w/transformer, IP54 rated. For extended LF response, add the SP-12.1P 12" Sub for full-range applications like DJ or Live Music Performance. Two-way models incorporate Ashly's proprietary Directivity-Optimized Crossover (DOC). This gives AW Series speakers the widest, most consistent sweet spot .AW Series can also benefit from improved linear frequency response when used with DSP presets available for Protea & AquaControl-enabled amps and processors.
Specifications
  • Barcodes
  • UPC
  • 694970003316
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 1
  • Each
  • Cubic Feet
  • 2.0528
  • Height In Inches
  • 11.6
  • Length in Inches
  • 13.9
  • Pounds
  • 15
  • Width Inches
  • 22
