Brand: Audix
Model: OM11
UPC: 687471101186
Please log in to see your price
Dealer locator

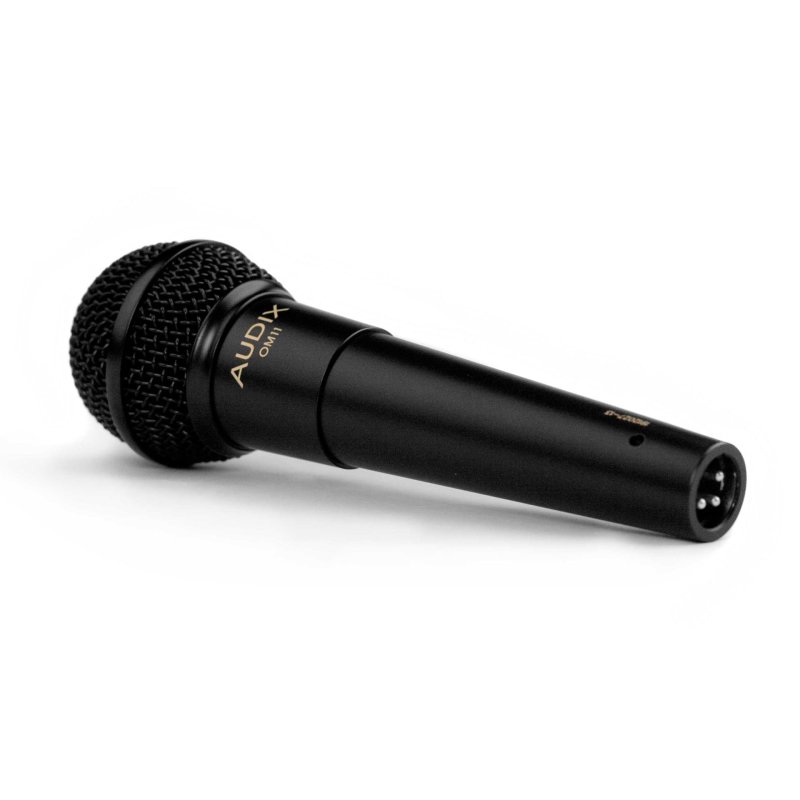

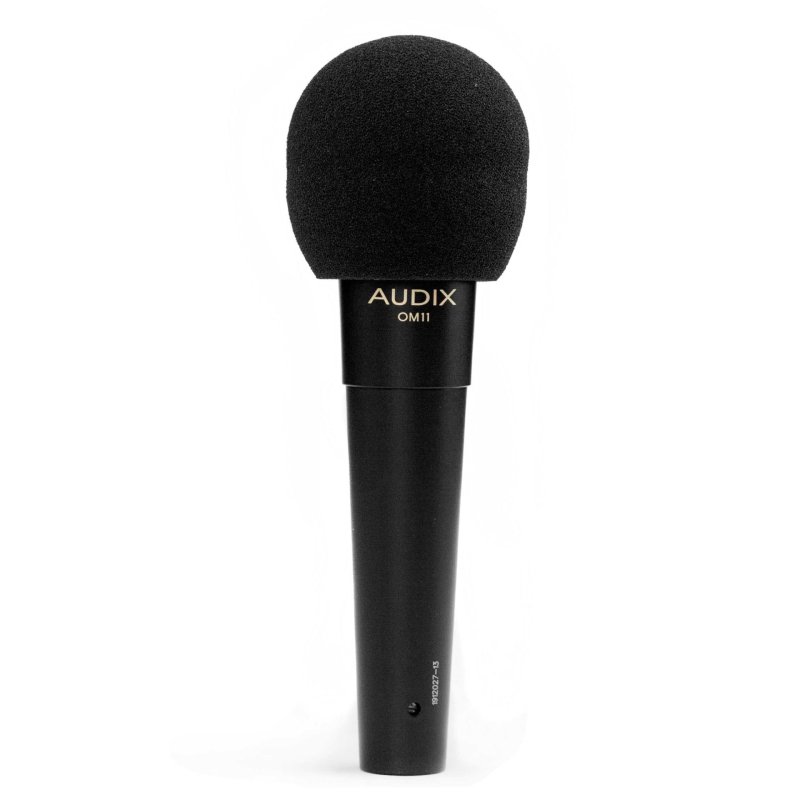

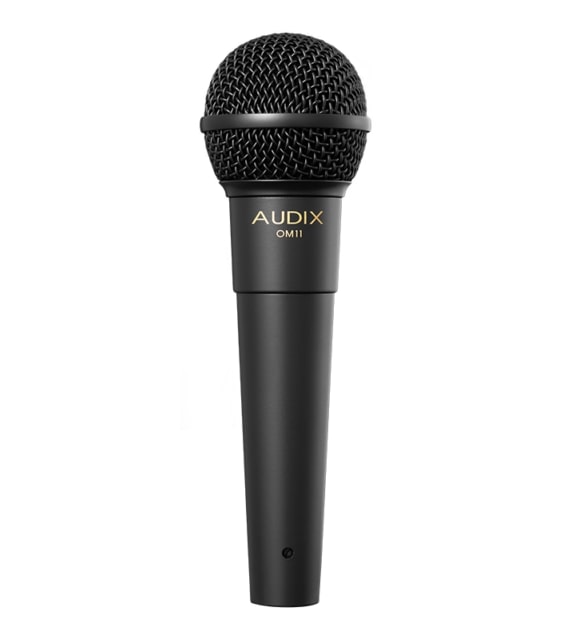

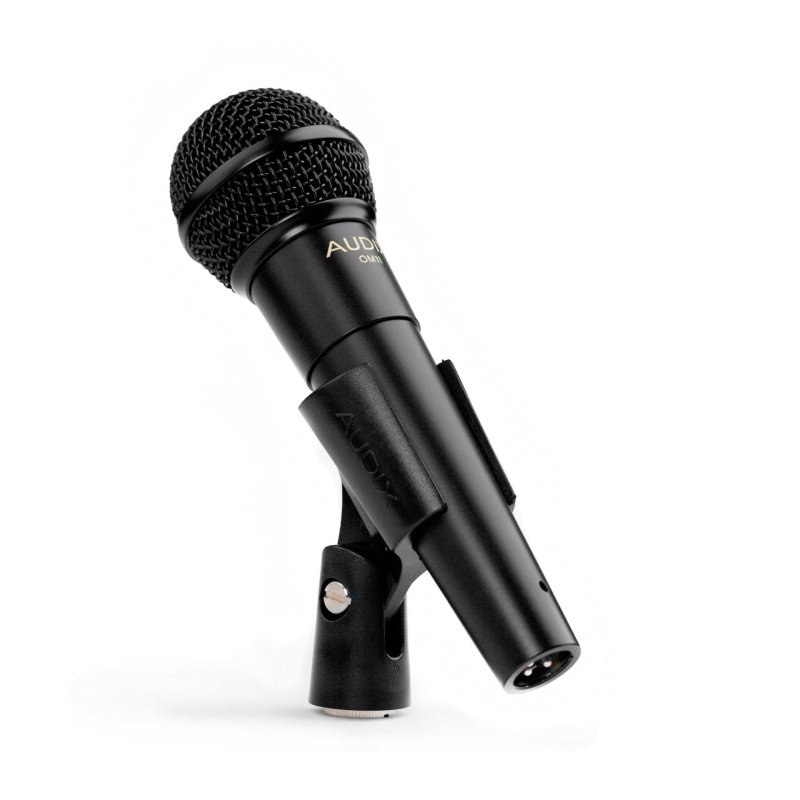

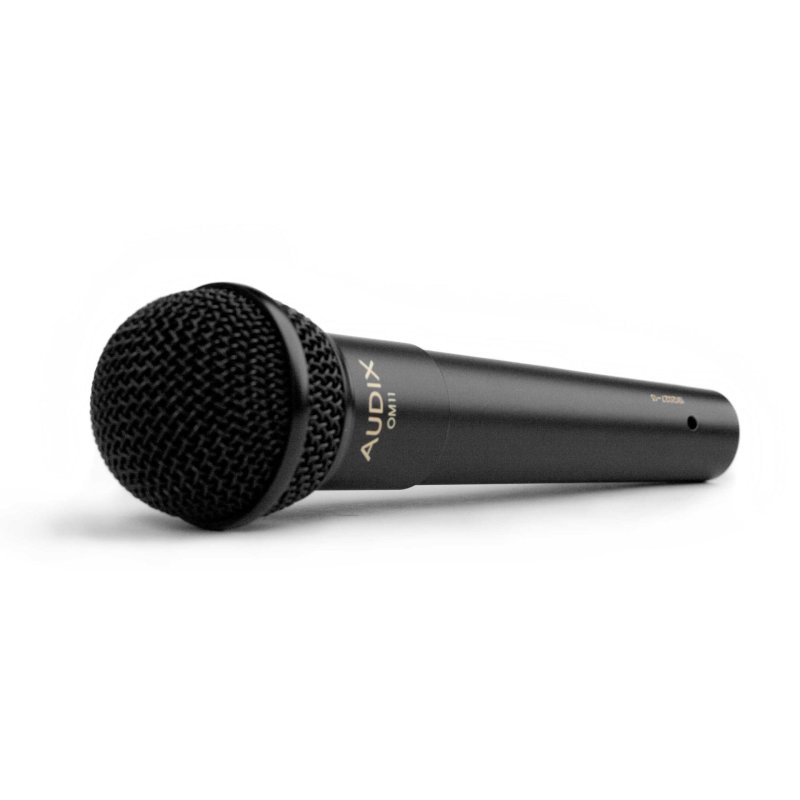

Designed, machined, assembled, and tested by Audix in the USA, the OM11 vocal dynamic microphone was first issued in 1985 as the OM1.

Transducer Type Dynamic

Frequency Response 50 Hz – 18 kHz

Polar Pattern Hypercardioid

Output Impedance 200 ohms

Sensitivity 1.9 mV / Pa @ 1k

Capsule Technology VLM Type C

Off-Axis Rejection >30 dB

Maximum SPL =140 dB

Power Requirements None

Connector 3-pin XLRm

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Zinc Alloy / Black Finish

Weight 370 g / 13 oz

Length 179 mm / 7 in

more
About This Product

Description:

Designed, machined, assembled, and tested by Audix in the USA, the OM11 vocal dynamic microphone was first issued in 1985 as the OM1. This microphone is a dynamic vocal microphone used for a wide variety of live, studio, and broadcast applications. Its sharp, crisp vocal sound, resistance to feedback, and ability to handle high SPLs without distortion are trademarks of the OM11. The OM11 dynamic vocal microphone is designed with a tight, uniformly controlled hypercardioid polar pattern which helps isolate the vocals on stage. The response of the OM11 is tailored to cut through the mix, providing extra presence and articulation to the vocals even at very high stage volumes. In addition to having extremely low handling noise, the OM11 hypercardioid microphone is well balanced, comfortable to hold, and durable.
Specifications
  • Barcodes
  • UPC
  • 687471101186
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.0535
  • Height In Inches
  • 2.5
  • Length in Inches
  • 8.8
  • Pounds
  • 1.2
  • Width Inches
  • 4.2
