32-bit SHARC DSP processing at 48 or 96 kHz sample rates
Class-D switching amplifier technology
Selectable 80 Hz Hi-pass filter, limiter, and input gain per channel, via rear panel
Comprehensive software controlled Protea DSP including dynamics, gain, equalization, matrix mixer, crossover, delay, and metering
Precision swept load impedance monitoring of individual amplifier channels for remote diagnosis of speaker problems
Remote iPad control app (available for free) for selecting DSP functions including gain, mute, matrix, A/B source select, PEQ filter level, and meters
Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
Serial data port available for Ashly WR-5 and RD-8C programmable remote control (optional RS-232 converter INA-1 available for third party controllers)
Real-time clock with event scheduler
Assign automatic execution of selected functions and tasks
Event scheduler is programmed using the free Protea NE software and stored in the amplifier
Protea NE software will load a speaker manufacturer's .fir or .csv file for precision tuning
Multi-mode operation-selectable outputs on each channel allow you to choose the desired output mode
Preset recall via contact closure, software control, remote control, or event scheduler
Programmable power-on delay
Remote gain and zone control with neWR-5 and FR-8/FR-16 programmable networked remotes
Aux preamp line outputs for driving other amplifiers
Fault condition logic outputs, assignable
Signal generator function for test and noise masking

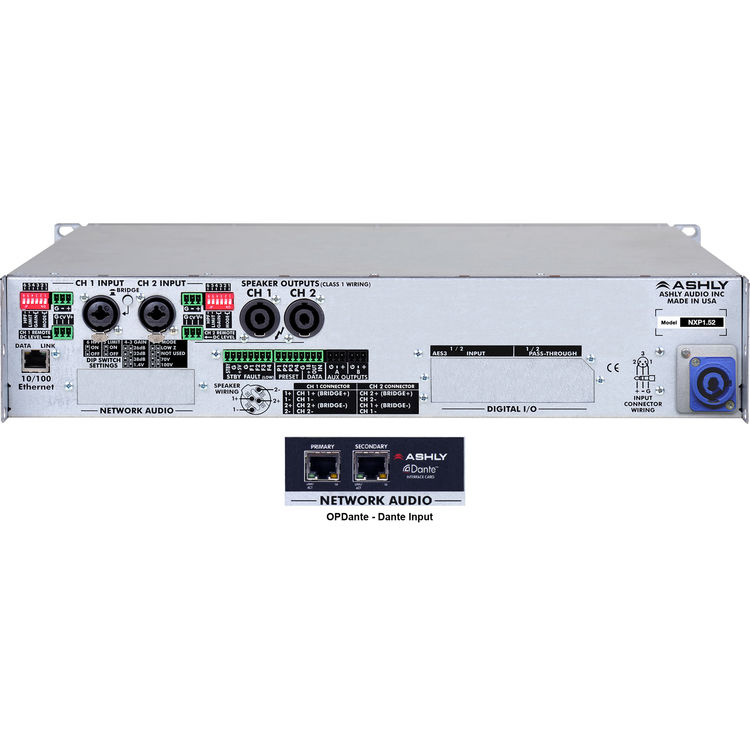

Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking loudspeaker connectors
Neutrik powerCON detachable AC mains connector
Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
Remote DC level control per channel
Extensive protection cir
