Ethernet control using Protea NE software
Serial data control by Ashly programmable remotes or third party controllers
Aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, optional AES3 digital audio capability, and Cobranet
Real-time clock with event scheduler
Assign automatic execution of selected functions and tasks
Event scheduler is programmed using PneS software and stored in the amplifier
Ashly remote control via iPad app for custom design of secure wireless control over a network
Features a switch-mode power supply that automatically detects 120 VAC or 240 VAC operation
Selectable outputs on each channel allow you to choose the desired output mode
Set the DIP-switch configuration for low impedance (2, 4, and 8 Ohms), or constant voltage (70V or 100V)
Ashly EMS (Energy Management System) provides an automatic sleep-mode drawing less than 1W (defeatable)
Multiple internal power supplies provide increased channel separation and reliability
Selectable 80 Hz hi-pass filter, limiter, and input gain per channel via rear panel
Remote DC level control per channel
Extensive protection circuitry and continuously variable cooling fans
Ethernet port for software control and monitoring of amplifier functions with front panel COM activity LED
Serial data port available for optional Ashly WR-5 and RD-8C programmable remote controls (optional RS-232 converter INA-1 available for third party controllers)
Instant standby mode results in 30% reduction in idle power consumption that is triggered by contact closure, software control, or event scheduler
Preset recall via contact closure, software control, remote control, or event scheduler
Programmable power-on delay
Aux preamp line outputs for driving other amplifiers
Assignable fault condition logic outputs

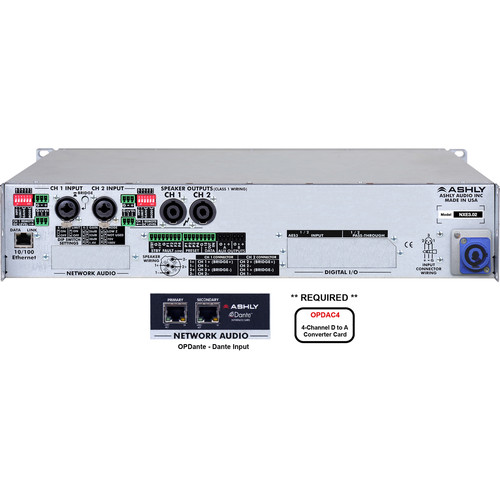

Neutrik Combo XLR - 1/4" TRS jack plus Euroblock input connectors
Neutrik speakON twist locking
