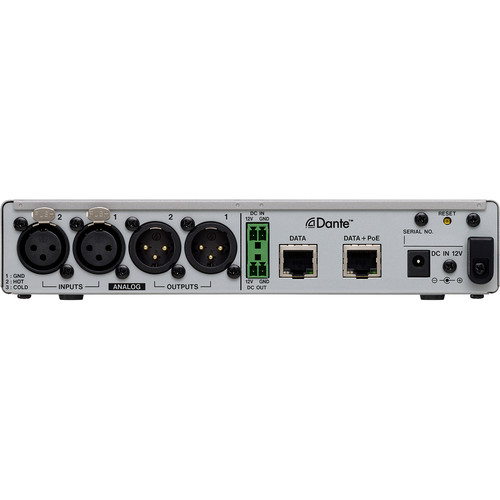

2 analog outputs on 3-pin XLR connectors
4 Dante inputs/outputs
Supports PoE (Power over Ethernet)
Sample rate up to 24-bit / 96 kHz
Supports Dante daisy-chain, which allows two Dante Compact Processor models to be connected without a network switch
Compatible with Dante Domain Manager and Dante AES67 mode
Flexible scene preset function allows you to work in different area situations (up to 50 presets)
Two types of user-control software available for Windows/Mac/iOS/Android devices:
TASCAM DCP CONNECT, for integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
TASCAM EZ CONNECT, for end-users: simple app design for only the necessary functions such as area-volume settings, etc.
Remote control via Dante
Half-rack mountable size

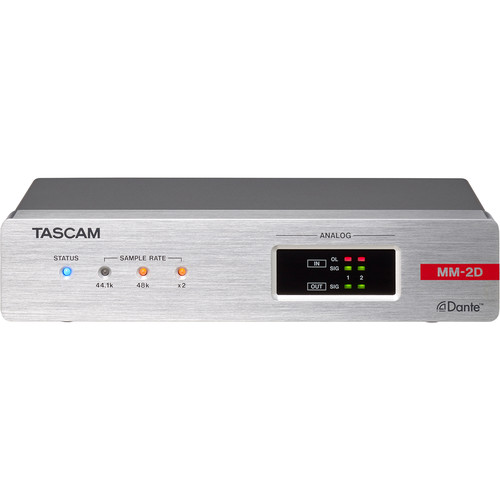

Equipped with indicators that show LAN/Dante connection status and sample rate
Equipped with signal indicators that monitor digital input/output signals
Configurable reference level (via remote control only)
Surface-mount adapters for installation under desks included
