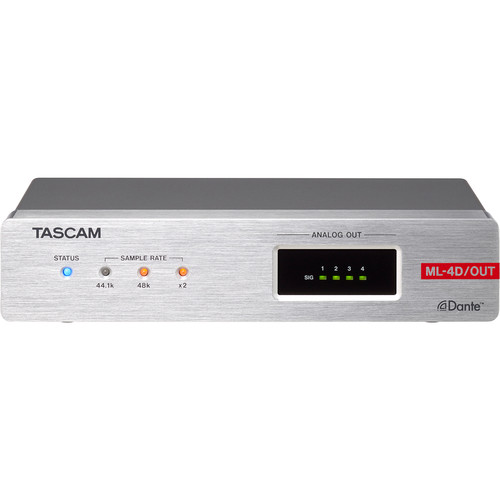

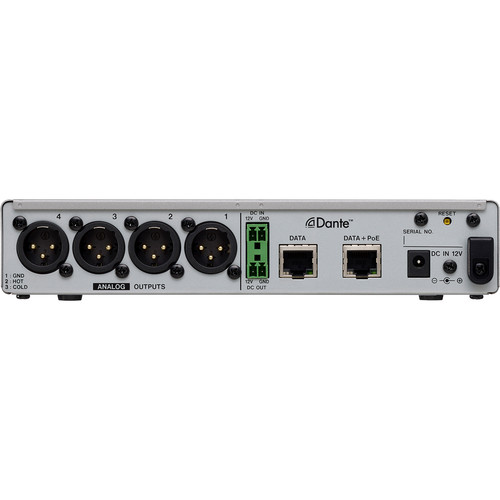

The ML-4D/OUT-X is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-X supports up to 96kHz/24bit and uses XLR connectors for analog line output.
4 line output, 4 Dante input/output

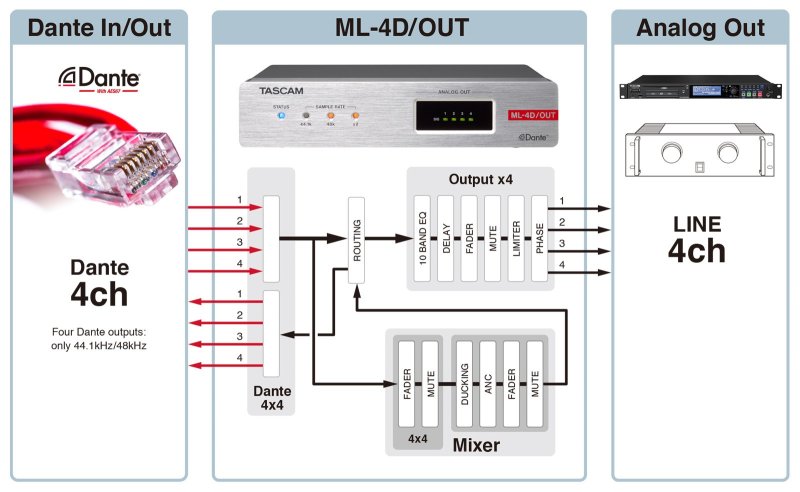

The ML-4D/OUT-X not only converts Dante signals into 4-channel line signals; it can also convert them into 4-channel Dante output signals, making it possible to direct these to a Dante established network using the built-in DSP matrix mixer.
Half-rack size Dante Compact Processor Series
The Dante Compact Processor Series has a line-up of models with different input/output specifications:
MM-4D/IN, 4-channel mic/line input
ML-4D/OUT, 4-channel line output
MM-2D, 2-channel mic/line input/output
AE-4D, AES/EBU 4-channel input/output
For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems. |
