Cover Linear 7 118SubA

Name: Cover Linear 7 118SubA
SKU: ADX10FLP

Brand: Audix

Model: ADX10FLP

UPC: 687471221488

Please log in to see your price

Dealer locator

Transducer Type Pre-polarized Condenser

Frequency Response 50 Hz – 18 kHz

Polar Pattern Cardioid

Output Impedance250 ohms

Sensitivity 4.5 mV / Pa @ 1k

Signal to Noise Ratio >65 dB

Equivalent Noise Ratio <29 dB (A-weighted)

Maximum SPL =120 dB

Power Requirements 5-52V phantom

Connector Shielded 3’ terminating to a minature 3 pin XLRf

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Materials / Finish Machined brass capsule / Black finish

Weight 110 g / 4 oz

Length 25 mm / 0.98 in

About This Product

Description:

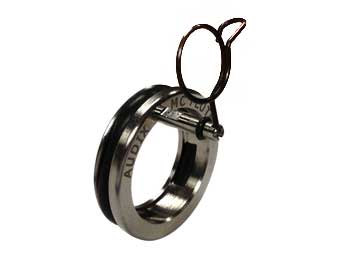

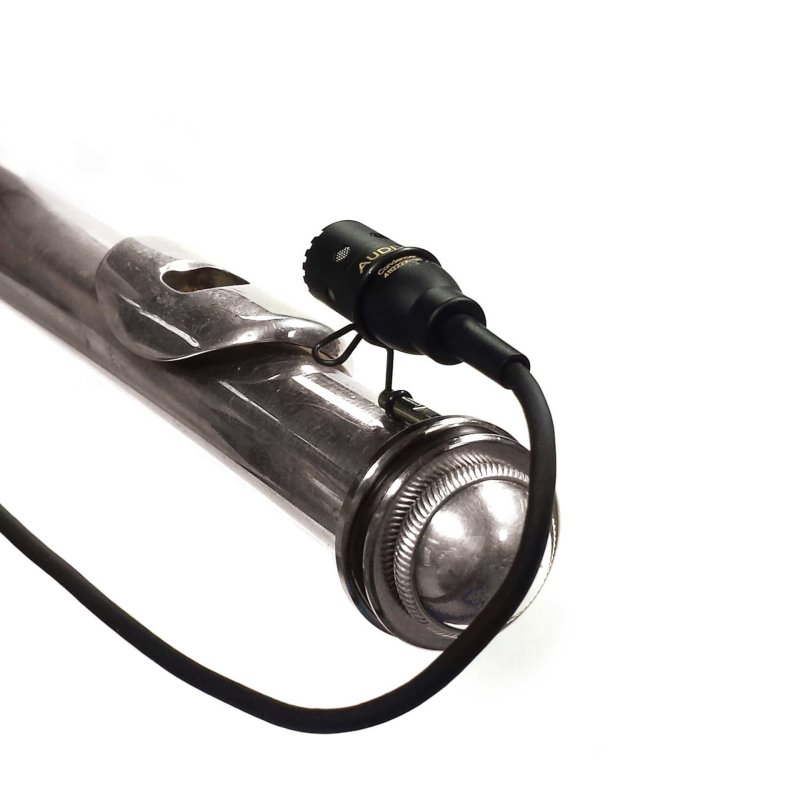

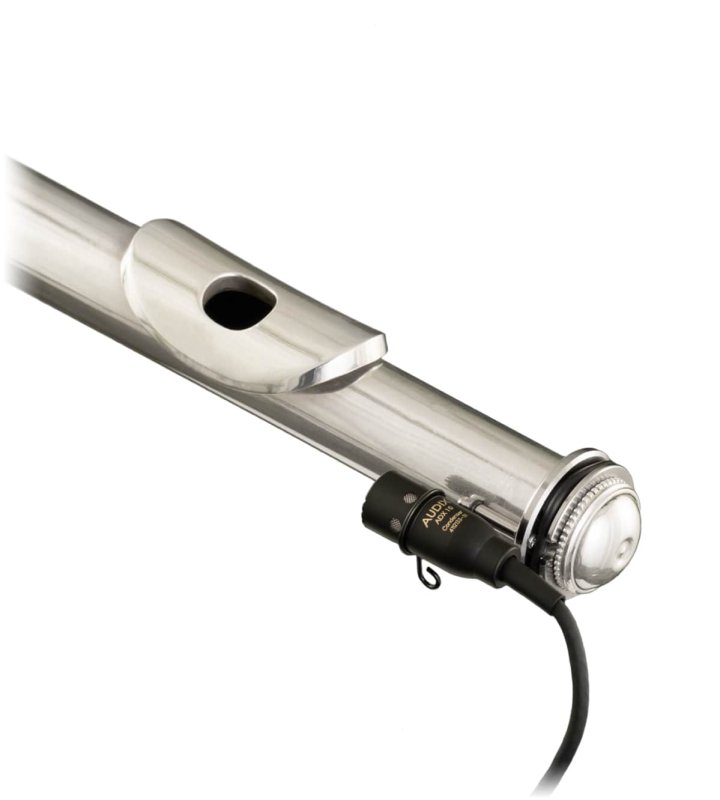

The ADX10FLP is a cardioid condenser flute microphone that utilizes a uniformly controlled cardioid polar pattern. This feature assists in isolating the miked sound at the embouchure hole from other instruments or vocals on stage. With a smooth and accurate frequency range of 50 Hz-18 kHz, the ADX10FLP is lightweight, low profile, and furnishes the flutist’s natural sound with an exceptional transient response. The ADX10FLP, specifically for use with a standard flute, includes a clip (attaches to the head joint), an 8' cable terminating to a mini XLR-f connector, and a phantom power adapter (APS911). Other model versions include the ADX10FL for use with Audix wireless systems. Manufactured to high standards and tight tolerances, the ADX10FLP miniaturized condenser flute mic features a modular threaded capsule, machined brass body with a matte black finish, high quality shielded microphone cable and a variety of optional accessories.

Specifications
