Audix

8 Channel IEM Pack

Brand: Audix
Model: M40W6
UPC: 687471292204
Please log in to see your price
Dealer locator

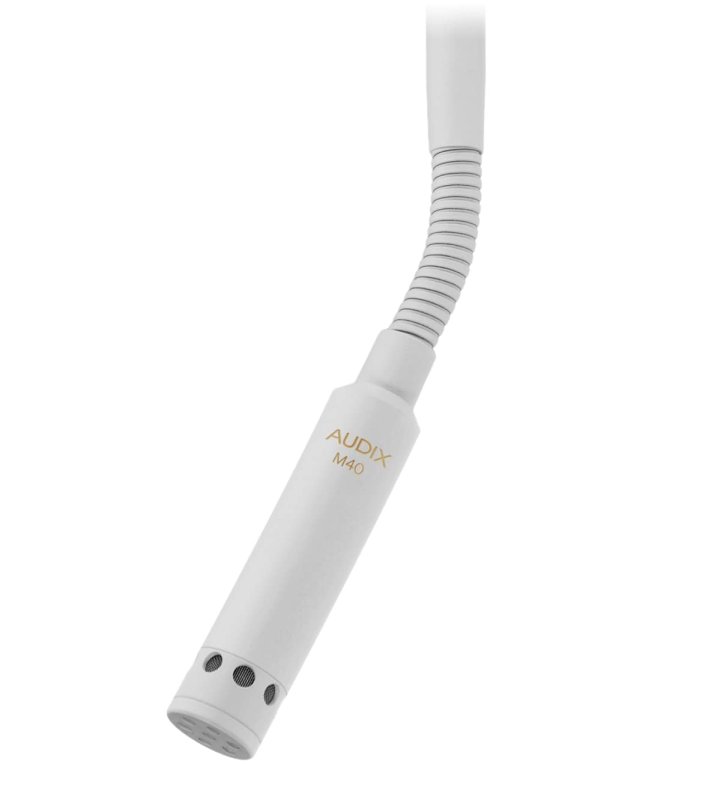

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking.

Hanging integrated cardioid ceiling microphone with 6" gooseneck. 12" cable terminating into phoenix connector. Includes mating phoenix connector. Requires 18 – 52 V phantom power. White.

Transducer Type Condenser

Frequency Response 60 Hz – 10 kHz

Polar Pattern Cardioid, Hypercardioid, Shotgun

Output Impedance 150 ohms

Sensitivity 37 mV / Pa @ 1k

Signal/Noise Ratio (A-weighted) 72 dB

Equivalent Noise Level (A-weighted) 22 dB

Maximum SPL @ .5% THD =130 dB

Dynamic Range 108 dB

Power Requirements 18 – 52 V Phantom

Connector 3-pin XLRm

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Materials / Finish Copper and Steel Powder Coat

Weight 0.7 oz / 20 g

Length 2.1 in / 54 mm

more
About This Product

Description:

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking. The primary applications for the ceiling-mounted M40 include Video & Teleconferencing (VTC), distance learning, hospital rooms, surveillance, and ambient room miking. The M40 ceiling microphone has complete immunity from RF interference caused by cell phones and GSM devices. The M40, which comes with a cardioid capsule, is also available with hypercardioid or shotgun capsules, allowing for the microphone to be used in a wide variety of applications. The M40 installed ceiling microphone is easy to install requiring only that a 5/8 inch hole be drilled in the ceiling with no additional tools required. The cable assembly is equipped with a terminal block connector. For installations where plenum rated cable is to be used a UL rated, metal plenum junction box is available. Note: The M40 Series comes in a variety of model options. Please see below.
Specifications
  • Barcodes
  • UPC
  • 687471292204
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.0312
  • Height In Inches
  • 2.1
  • Length in Inches
  • 10.7
  • Pounds
  • 0.35
  • Width Inches
  • 2.4
