PSM3 Dual Ear With HD 2MM Tan

Name: PSM3 Dual Ear With HD 2MM Tan
SKU: MICROD

Brand: Audix

Model: MICROD

UPC: 687471221051

Please log in to see your price

Dealer locator

The MicroD is primarily a drum and percussion instrument microphone for professional stage and studio applications. The MicroD has a uniformly controlled hypercardioid polar pattern and a smooth, accurate response in its frequency range.

Transducer Type Pre-Polarized Condenser

Frequency Response 40 Hz – 20 kHz

Polar Pattern Hypercardioid

Output Impedance 250 ohms

Sensitivity 5.6 mV / Pa @ 1k

Equivalent Noise Level 24 dB

Signal to Noise Ratio 70 dB

Maximum SPL =140 dB

Power Requirements 9 – 52 V phantom

Connector 3-pin mini to 3-pin XLRm (APS910)

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish Machined Brass Capsule / Black Finish

Gooseneck Flexible Steel

Weight 47 g / 1.6 oz

Length 30 mm / 1.14 in

more

About This Product

Description:

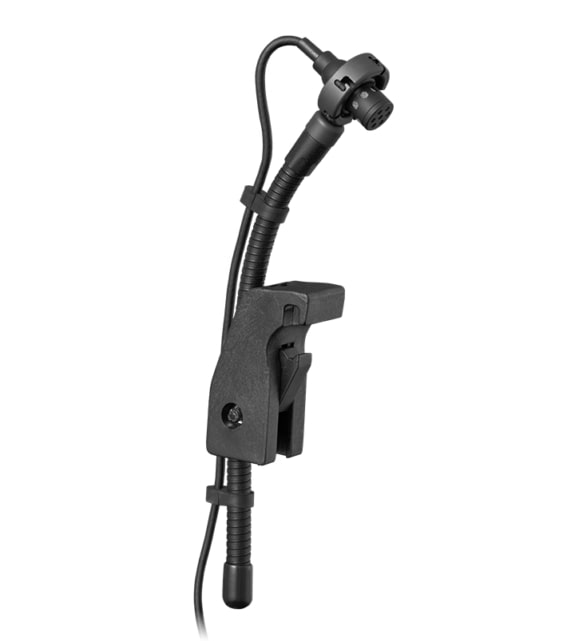

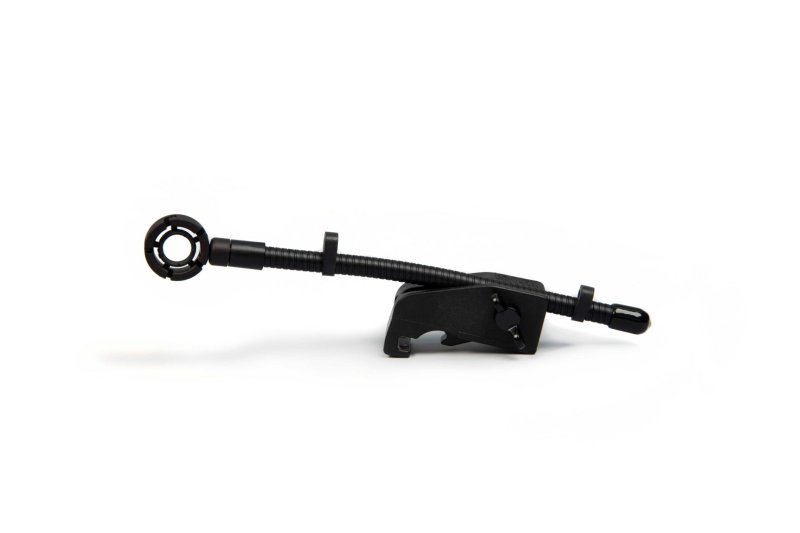

The MicroD is primarily a drum and percussion instrument microphone for professional stage and studio applications. The MicroD has a uniformly controlled hypercardioid polar pattern and a smooth, accurate response in its frequency range. This microphone is lightweight, compact, and simple to use. The MicroD is housed in an aluminum ring and isolated by means of a rubber shock mount system. The MicroD hypercardioid microphone attaches easily and firmly to a standard drum rim utilizing the patented DVICE rim mount system. Designed, machined, assembled, and tested by Audix in the USA.

Specifications

Barcodes

UPC
687471221051

Package Measurements & Shipping Weights

Case Pack

Each
999

Each

Cubic Feet
0.0547

Height In Inches
2.5

Length in Inches
8.8

Pounds
0.65

Width Inches
4.3
