Max. SPL @ 10% THD: 126 dB half space (58 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD: 135 dB half space
Frequency response +/-3 dB: 58 Hz – 16 kHz
Frequency response -10 dB: 49 Hz – 18 kHz
Power amp output (peak power): 1200 W
Preamp: DSP (Time Alignment)
Amp type: Class D - biamped
Active protective circuits: Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low-/mid speaker: 1 x 15", 2.5" voice coil
HF driver: 1", 1" voice coil
Horn directivity: 90° x 55° CD horn
Active crossover frequency: 2.3 kHz FIR X-over with 72 dB/oct.
Analog inputs: 2x XLR combo balanced, 1x Stereo RCA
Analog outputs: 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity: +4 dBu @ Gain center-notched
Sensitivity switch: Line/Mic Input A
Filter presets: 2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector: 1x IEC socket with V-Lock cord retainer
Power consumption: 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065

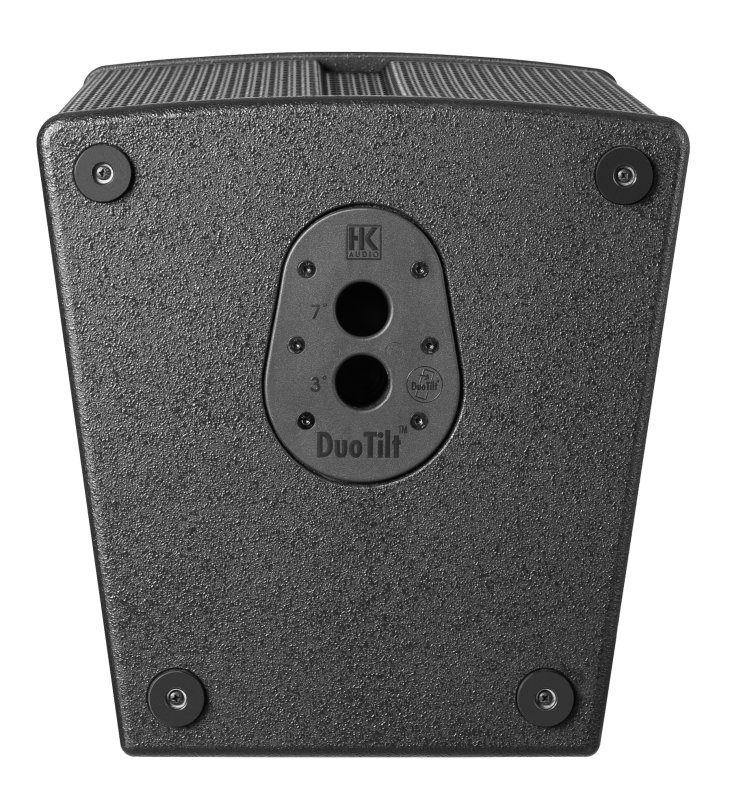

Pole mount: DuoTilt 3°/7°
Rigging points: 4x M8 (AP-8)
Carrying handles: 2x MultiGrip
Housing: 16 mm MDF
Finish: Black acrylic enamel
Front grille: 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 44 x 69 x 44.5 cm 17-21/64 x 27-11/64 x 17-33/64"
Weight: 27.9 kg / 61.5 lbs
